Manufacturer Part: | EMT ID: |
S-320CNC
|
6359
|
- Miter cutting: 0⁰ - 60⁰ right
- Band saw blade dimensions: Width: 1 x 0.035" (27x0.9mm), Length: 144" (3660mm)
- Band speed: 65-328fpm (20-100mpm)
- Machine Voltages Available: 230vac, 3-Phase, 60hz, Wye configuration required
Description

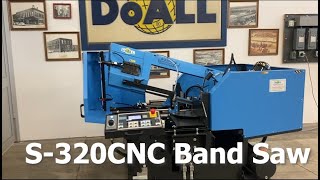

The DoALL S-320CNC StructurALL® miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-320CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the S-320CNC is adjustable to 60° to the right in semi-automatic mode only.
Specifications
Cutting capacity for round tube: 11.75" (300mm)
Cutting capacity for rectangle: 11.75 x 12.5" (300x320mm)
Cutting capacity for solid: Round: 7" (180mm)
Miter cutting: 0⁰ - 60⁰ right
Miter cutting capacity for tube at 45⁰ - Right: Round: 11.75" (300mm), Rectangle: 11.75 x 9.75" (300x250mm)
Miter cutting capacity for solid at 45⁰ - Right: Round: 4 ¼" (110mm)
Miter cutting capacity for tube at 60⁰ - Right: Round: 7.75" (200mm), Rectangle: 7.75 x 7.75" (200x200mm)
Miter cutting capacity for solid at 60⁰ - Right: Round: 3 ⅛" (80mm)
Min and max nesting capacity at 90°: 0.12" (3mm) to 12.5 x 6.25" (320x160mm)
Remnant length drop: Width: 1.2" (30mm)
Band saw blade dimensions: Width: 1 x 0.035" (27x0.9mm), Length: 144" (3660mm)
Band speed: 65-328fpm (20-100mpm)
Band drive motor: 3 hp (2.23kW)
Hydraulic pump: 0.07 hp (0.05kW)
Coolant pump: 0.6 hp (0.44kW)
Coolant capacity: 5-1/4 gal (20 lit)
Material pass line height: 31-1/2" (800mm)
Machine weight: 1290 lbs (585kg)
Floor space requirements W x L X H: 90 x 46 x 81" (2270x1170x2040mm)
Machine Voltages Available: 230vac, 3-Phase, 60hz, Wye configuration required
Index Single Stroke Min-Max: 0.12-19.7" (3-500mm)
Auto Index Multiple Stroke Max: 126" (3200mm)
Manufacturer | |
SKU |
S-320CNC
|
Shipping Method |
Flatbed
|
Weight |
1,950 lb
|
Dimensions |
108 × 84 × 65 in
|
