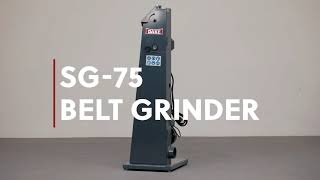

Dake Model SG-75 1.5HP 220V Single Phase 3” x 79” Standing Tower Belt Grinder 961005
*Image may display optional items not included with purchase.
You might also be interested in...
| Manufacturer Part: | EMT ID: |
|
961005
|
18010
|
- Voltage: 220V 60hz 1PH
- Belt Size: 3” x 79”
- Wheel Diameter: 7” Drive Wheel, 4” Contact Wheel
- Belt Speed: 5018 fpm
Description
This standing tower belt grinder is the economical solution for your workshop. Because of the minimalist concept design, it requires very little space to handle your metalworking grinding needs. Easy set up and quick grinding belt changes. Maximum work safety thanks to controlled flying sparks. Shielded and permanently lubricated bearings. Features a single knob tracking adjustment coated contact wheel.
Features
- Compact belt grinder for metalworking. The economical solution for the workshop
- Smaller space requirement than conventional tools because of the minimalist concept design
- Easy set-up
- Short set-up times – quick grinding belt changes
- Maximum work safety thanks to controlled flying sparks
- Shielded & Permanently Lubricated Bearings
- Single knob tracking adjustment coated contact wheel
Standard Equipment
- 60 Grit Grinding Belt
- Plexiglass Cover
- Base
Specifications
- Part Number: 961005
- Machine Type: MODEL SG-75 Standing Tower Grinder
- Motor: 1.5 hp (1.11kw)
- Voltage: 220V 60hz 1PH
- Belt Size: 3” x 79”
- Wheel Diameter: 7” Drive Wheel, 4” Contact Wheel
- Belt Speed: 5018 fpm
- Shipping Weight: 120 lbs.
- Shipping Dimensions: 25” x 13” x 42”
Options
- 77021 – Replacement Belt 60 Grit
- 77010 – Replacement Belt 40 Grit
| Manufacturer | |
| SKU |
961005
|
| Shipping Method |
LTL Freight
|
| Weight |
120 lb
|
| Dimensions |
25 × 13 × 42 in
|
| Warranty |
1 Year
|
