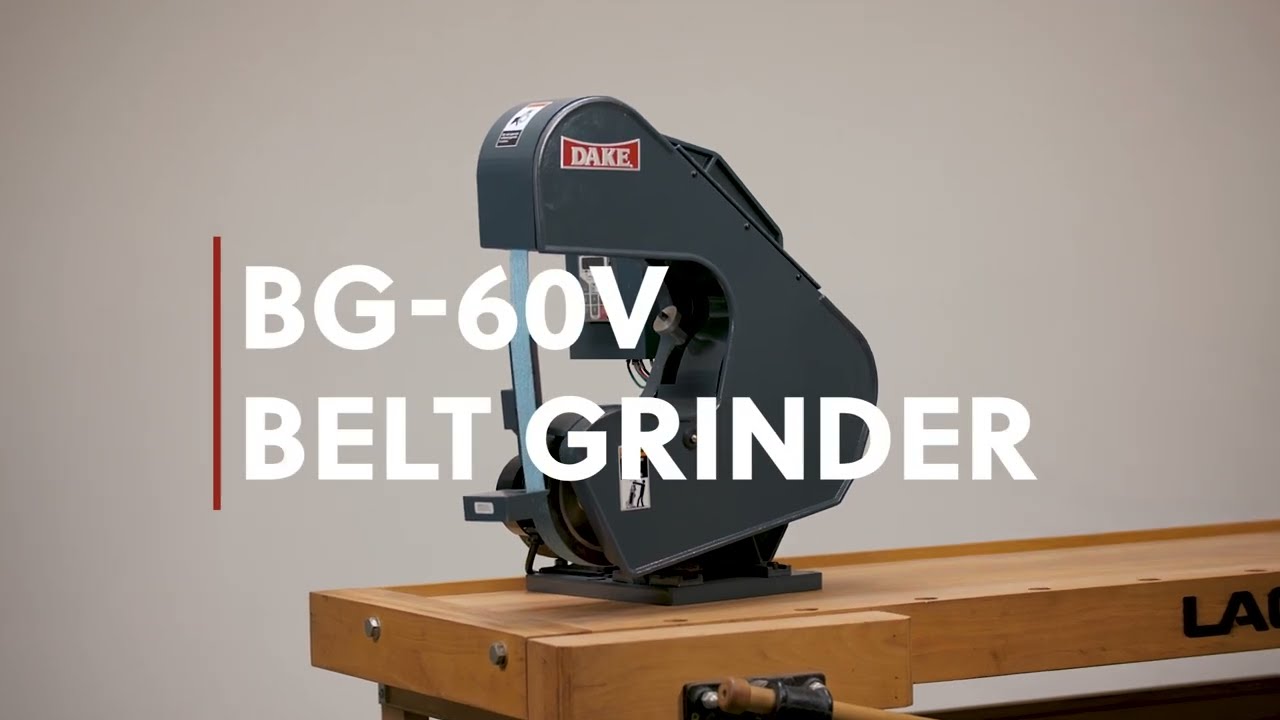

Dake Model BG-60V 110V Single Phase 1.5” x 60” Variable Speed 3-Wheel Belt Grinder 961006

Description

This 3-wheel belt grinder runs on 110 volt single-phase power and will work just about anywhere. This grinder accepts a 1.5” x 60” grinder belt with a 7” diameter contact wheel. Inverter-driven variable speeds range from 800 to 8000 fpm so that you can choose the correct speed for any application. Horizontal and vertical throat depth suits those larger or uncommon shaped parts. Recommended for smoothing over burrs on metal, chamfering edges for welding and cleaning up castings, among other uses.

Features

• 3 wheel grinder works on 110 volts single-power
• Accepts a 1.5” x 60” grinder belt
• 7” diameter contact wheel
• Inverter-driven variable speeds range from 800 to 8000 fpm
• Horizontal and vertical throat depth
• Fully sealed ball bearings
• Belt tension adjuster takes the hassle out of tension changes and belt replacement
• Solid cast aluminum structure ensures rigidity and vibration reduction

Standard Equipment

• 60 Grit Grinding Belt
• Variable Speed Frequency Drive

Specifications

• Belt Size: 1.5” x 60”
• Contact Wheel Size: 7”
• Belt Speed: 800-8000 fpm
• Motor: 1.5 HP
• Electrical Requirements: 110V Single Phase 60Hz
• Machine Dims: 46” x 23” x 23”
• Approx Weight: 75 lbs

Optional Add-Ons

• Replacement Belt 40 Grit
• Replacement Belt 60 Grit
