Burr King 4” x 60” Two Wheel 960-400 Variable Speed 1.5 HP 120V Single Phase Belt Grinder 97110
*Image may display optional items not included with purchase.
Manufacturer Part: | EMT ID: |
97110
|
16563
|
- Variable Speed: 660-6600 SFPM
- Contact Wheel Size: 7 x 4"
- Quick belt change
- Motor: 1.5 HP 120V Single Phase
Description
Burr King's family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications. Model 960-400 has a standard 60" belt up to 4" wide and can be bench or pedestal mounted (pedestal not included).
Features
- Contact wheel, platen and work support grinding

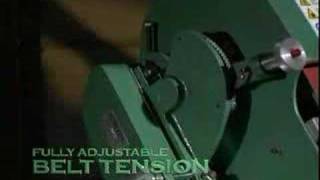

- Adjustable belt tension
- Positive belt tracking
- Quick belt change
- Up to 6600 SFPM belt speed standard
- Compact footprint friendly to "cell" manufacturing
- Adapts for "tool post" or "on center" grinding
- Adapts for robot mounts
- Precision machined cast aluminum frame
- OSHA compliant, enclosed guarding
Specifications
- Variable Speed: 660-6600 SFPM
- Motor: 1.5 HP 120V Single Phase 50-60Hz
- Wheels: 2
- Contact Wheel Size: 7 x 4"
- Throat Clearance: None
- Contact Wheel Hardness: 55 Duro
- Belt Tension Quick Change Assembly: Yes
- Positive Belt Tracking Adjustment: Yes
- Overall Height, Width, Depth: 30" x 21" x 30"
- Safety Belt Guard: Yes
- Base Area: 8.5" x 8"
- Steel Backup Platen: 4" x 14"
- Adjustable Work Rest: Yes
- Construction: Cast Aluminum
- Bench or Pedestal Mounted: Yes
- Pedestal Included: No
- Process Evaluation: Grinding
- Main Application: Belt Grinding
Available Accessories
- Optional Pedestal Mounts
- Workrest
- Dust Scoop
Manufacturer | |
SKU |
97110
|
Shipping Method |
LTL Freight
|
Weight |
140 lb
|
Dimensions |
26 × 24 × 27.5 in
|
Country of Origin |
United States of America
|
Warranty |
1 Year
|
