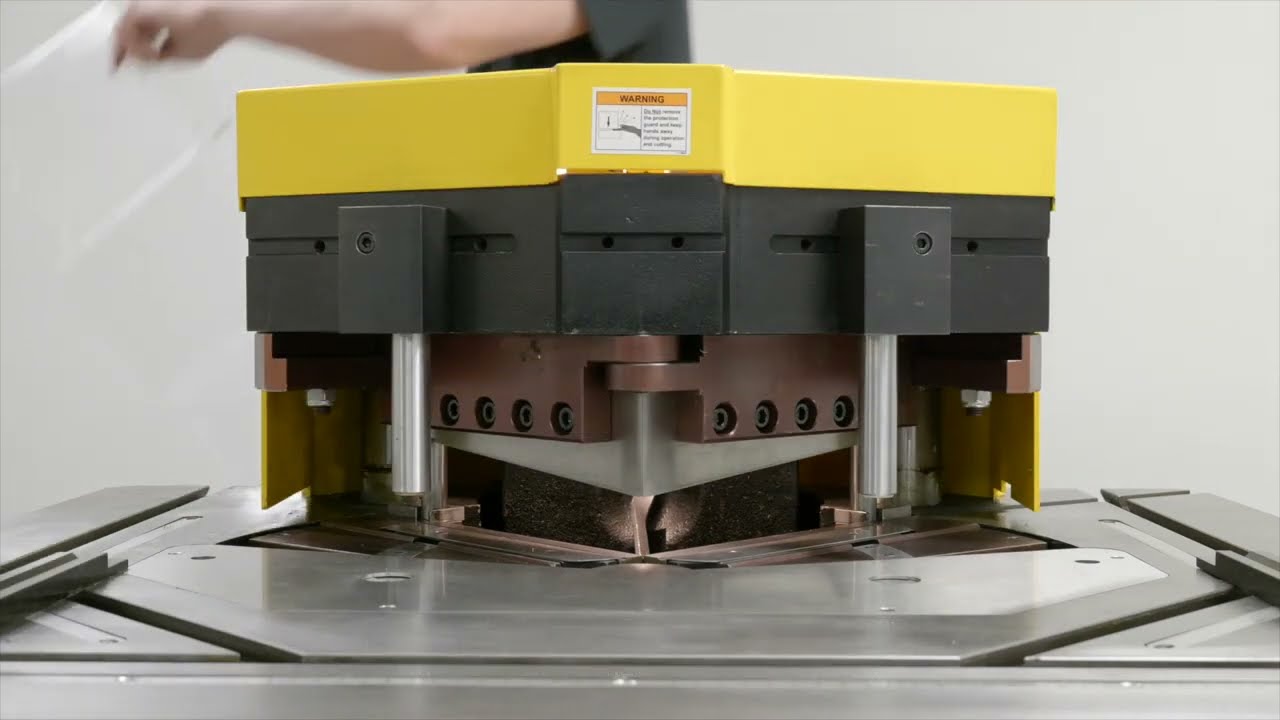

Dake Model DLN-6220V 220V Three Phase 4Ga Mild Steel 24-Ton Variable-Angle Hydraulic Sheet Metal Notcher 960401

Description

This model hydraulic notcher will cut notches from 30 to 140 degrees in mild steel and up to 6mm in thickness and will do tis at a maximum of 15 strokes per minute. 24 Ton Capacity, 4 Ga Mild Steel, Cutting Length 8.5” x 8.5”, Table dimension 37.4” x 31.2”, Long 8.5” blades that can be resharpened many times for even more life. The blades have a negative rake to pull the material to the stops during the cut, for the best accuracy available. Blade angle is adjusted with the use of handwheel, and the notching stroke is controlled by a foot pedal.

Features

• Variable angle
• Capable of notches from 30 to 140 degrees in mild steel and up to 6mm in thickness
• 15 strokes per minute
• 24 Ton Capacity 4 Ga Mild Steel
• Cutting Length: 8.5” x 8.5”
• Table Dimensions of 37.4” x 31.2”
• Long 8.5” blades
• Hand wheel adjusted blade angle
• Foot pedal-controlled notching stroke

Standard Equipment

• Foot pedal switch
• Long 8.5” blades

Specifications

• Max Material: 4 Ga (6mm)
• Max Strokes per Minutes: 15 strokes/min
• Angle: 30°-140°
• Max Notch Dimensions: 8.5” x 8.5”
• Table Dims: 37.4” x 31”
• Max Cutting Thickness
  • 3mm with 15° blade
  • 6mm with 30° blade
• Noise @ 1 meter: 70.2 dB
• Controls: Foot Pedal Switch
• Operation: Handwheels & Foot Switch
• Electrical Requirements: 220V Three Phase 4HP
• Machine Dims: 38.58” x 36.61” x 55.1”
• Approx Weight: 1,741 lbs
