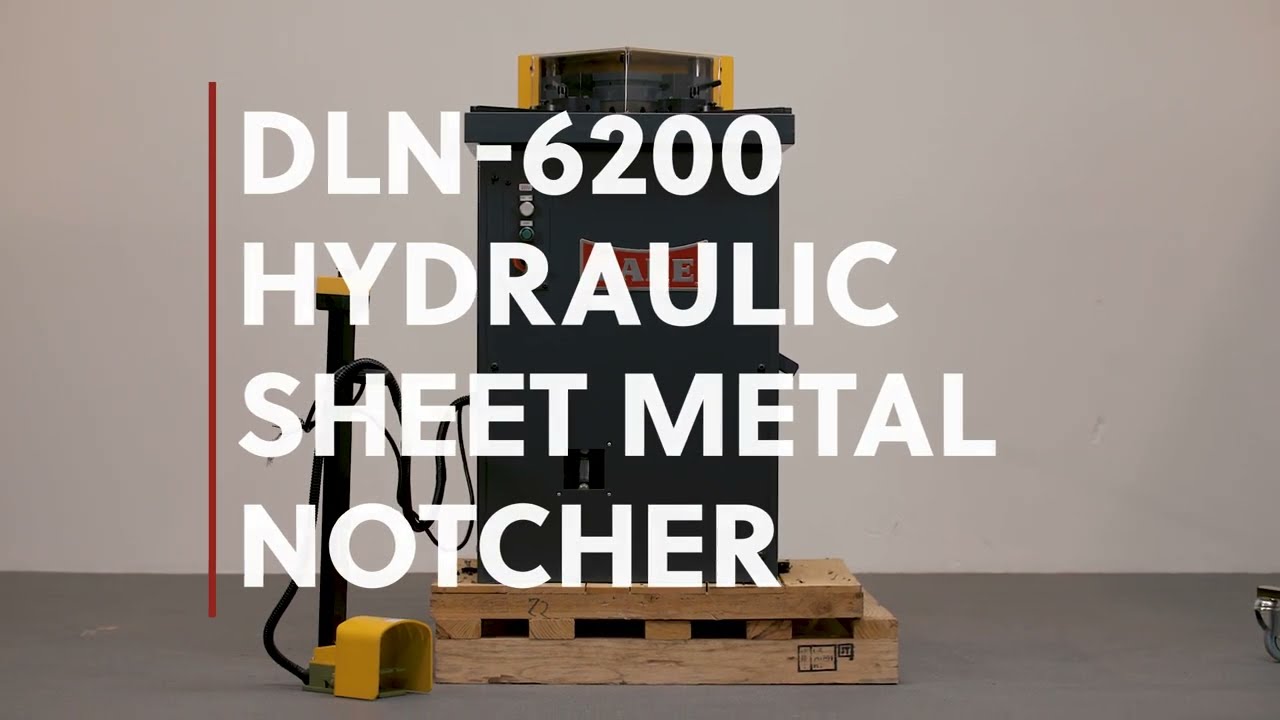

Dake Model DLN-6200 220V Three Phase 4Ga Mild Steel 24-Ton Hydraulic Sheet Metal Corner Notcher 960400

Description

This corner notcher has a 6mm or 4-gauge mild steel capacity, so it can make quick work of most any job. The DLN-6200 sheet metal corner notcher machine has blades that are fixed at 90°, ensuring a perfect notch every time. A 25.5” x 25.5” oversized working table includes table guides, for even more accuracy. The DLN-2600 sheet metal notcher machine has 8.5” long blades that can be resharpened many times for even more lift. The blades have a negative rake to pull the material to the stops during the cut, for the best accuracy available. The DLN-2600 sheet metal notcher comes with a powerful 4HP 220V 3 phase motor and operator-controlled foot pedal that is capable of 15 strokes per minute.

Features

• 25.5” x 25.5” oversized working table with guides
• 90 Degree Fixed Angle
• 15 Strokes per Minute
• 8.5” Long Blades
• Operated Controlled Foot Pedal

Standard Equipment

• Foot pedal switch
• Long 8.5” blades

Specifications

• Max Material: 4 Ga (6mm)
• Blade Length: 8.5”
• Max Strokes per Minute: 15 strokes/min
• Angle: 90° [fixed]
• Max Notch Dimensions: 8.5” x 8.5”
• Table Dims: 25.5” x 25.5”
• Noise @ 1 meter: 70.2 dB
• Controls: Foot Pedal Switch
• Operation: Foot Switch
• Electrical Requirements: 220V Three Phase 4HP
• Machine Dims: 31.5” x 25.59” x 46.85”
• Approx Weight: 1,092 lbs
