| Manufacturer Part: | EMT ID: |
|
TK1016DuctNotcher
|
4144
|
- Capacity: 16-28 Ga. mild steal
- V Notch. 1 ½” max
- Motor: 3 HP, 220V, Single Phase
- 5 Headed Gang Notcher
Description

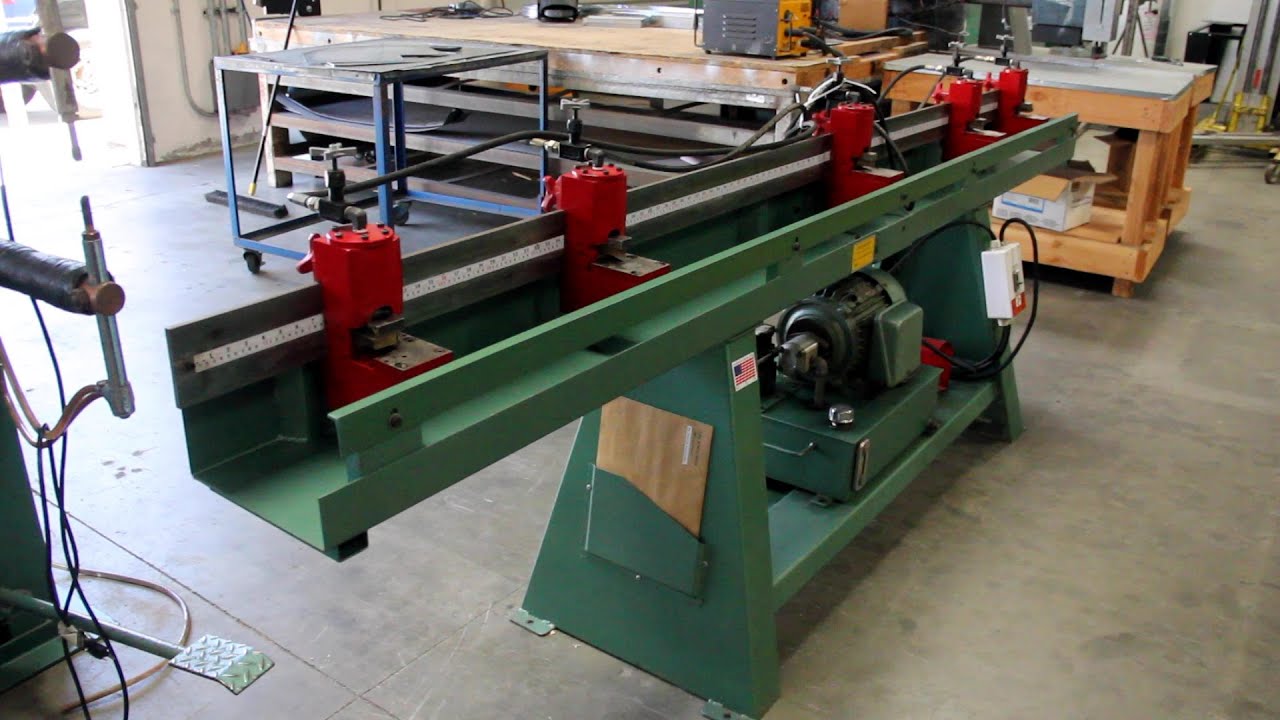

Notches up to 6 times faster than hand notching. This 5 headed gang notcher is a fast and easy way to notch sheet metal ducting, in preparation to receive bar, S Cleats and Drive Cleats…or other drive connections. A real money maker in that it is fast, accurate and durable.
QuickNotch allows you to gang-notch sheet metal hydraulically up to 600% faster than by hand, without layout or scribing. It's the perfect tool for preparing bar, slip or "s" and other drive connections.
Specifications
- Capacity: 16-28 Ga. mild steel
- Number of Notching Heads: 3 V and 2 Corner, for 5 total
- V Notch: 1 ½” max
- Motor & Electrics: 3 HP, 220V, Single Phase, 60 Hz, 1800 RPM
- Dimensions: 79" x 36" x 36"
- Weight: 880 lbs
Options
- Can be wired in 115V
| Manufacturer | |
| SKU |
TK1016DuctNotcher
|
| Shipping Method |
LTL Freight
|
| Weight |
920 lb
|
| Dimensions |
79 × 36 × 36 in
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504
Tin Knocker 3HP 220V 16Ga. Duct Notcher with 5 Heads TK1016
