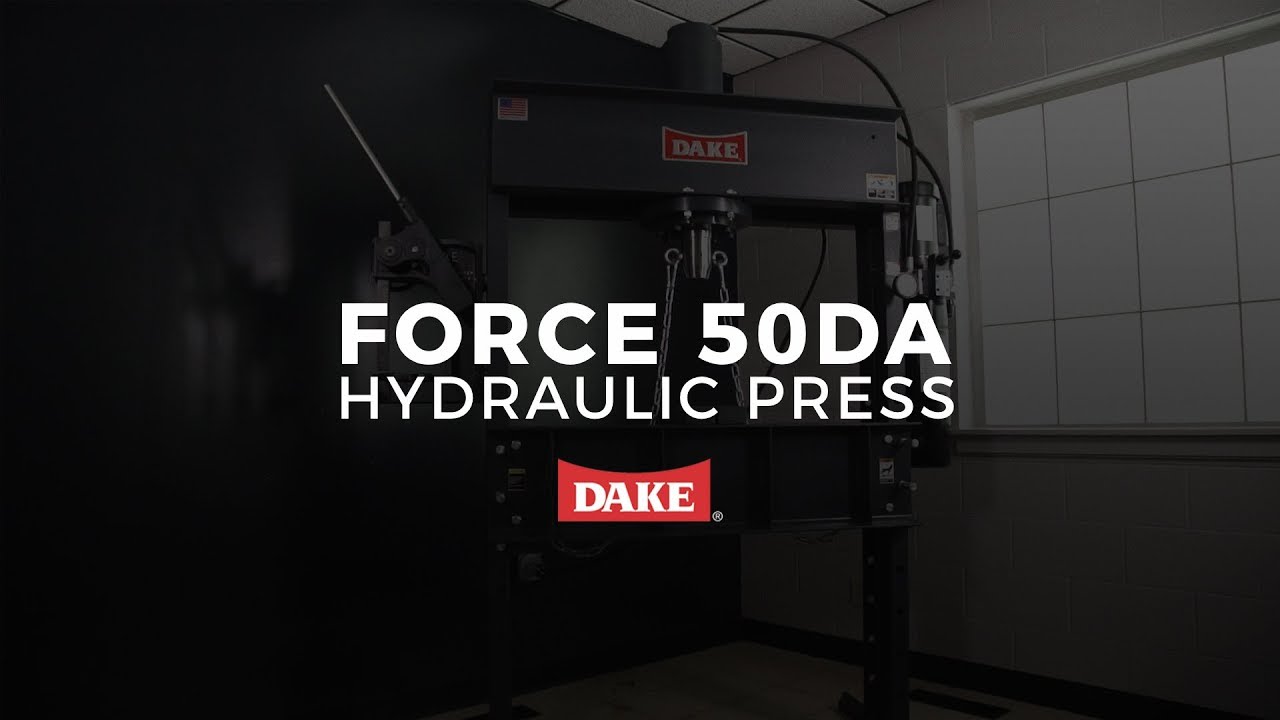

Dake H-Frame 110V Single Phase Hydraulic 50Ton Dura-Press Force 50DA
| Manufacturer Part: | EMT ID: |
|
909250
|
171
|
- Width Between Uprights: 44”
- Max Ram to Table: 41¾”
- Ram Travel: 16”
- Pressing Speed: 11 in/min
Description
50 ton hydraulic dura-press powered by a single-phase, 110-volt motor for pressing and forming applications. The channel iron H-frame accepts large and bulky items, and the table height adjusts for proper positioning with the included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.
Dake has been manufacturing their line of H-frame hydraulic presses since the mid-1940s. Their hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching, and shearing. Every hydraulic press has a frame that is constructed of heavy-duty arc-welded steel and seamless steel cylinders to prevent leaks.
Features
- Electric power unit has convenient single phase, 110 volt operation for greater portability
- Lever control ram advance for easy operation
- Double acting cylinder allows for convenient positioning of ram
- Sturdy, welded channel iron frame for durability
- Quiet, low pressure hydraulic components for greater efficiency and smooth pressing
- One hand ram positioning with 4-way valve hydraulic control
Standard Equipment
- Frame
- Safety Relief Valve
- 2 Combination Table Plate/V-Blocks
- Pressure Gauge
- Lifting Chain
Specifications
- Capacity: 50 Tons
- Operation: Electric
- Horsepoiwer: 2HP
- Width Between Uprights: 44”
- Width Between Table Channels: 8¼”
- Min Ram to Table: 10”
- Max Ram to Table: 41¾”
- Ram Travel: 16”
- Horizontal Workhead Travel: Fixed
- Pressing Speed: 11 in/min
- RPM: 3,450
- Electrical Requirements: 110V Single Phase
- Footprint: 55” x 36”
- Height: 94”
- Weight: 1,330 lbs
Optional Add-Ons
- Remote Pressure Relief Valve
- Check Valve
- Traversing Head
- Two Hand Operation
- Certified Gauge
- Side Mounted Arbor Press
- Flange Adapter
| Manufacturer | |
| SKU |
909250
|
| Shipping Method |
LTL Freight
|
| Weight |
1,400 lb
|
| Dimensions |
66 × 40 × 101 in
|
| Country of Origin |
United States of America
|
