Cosen 13” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-500M
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SH-500M
|
3816
|
- Round Capacity at 0°: 13”
- Rectangular Capacity at 0°: 11” x 19.7”
- Blade Motor: 3 HP
- Workbed Height: 32.3"
Description
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-500M fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Features
- Swivel saw head allows miter cutting from 0 degrees to 60 degrees
- Hydraulic cylinder plus precision ground hinge support
- Hardened worm gear for durability
- Hard-stops at, 45, and 60 degrees for quick angle set up

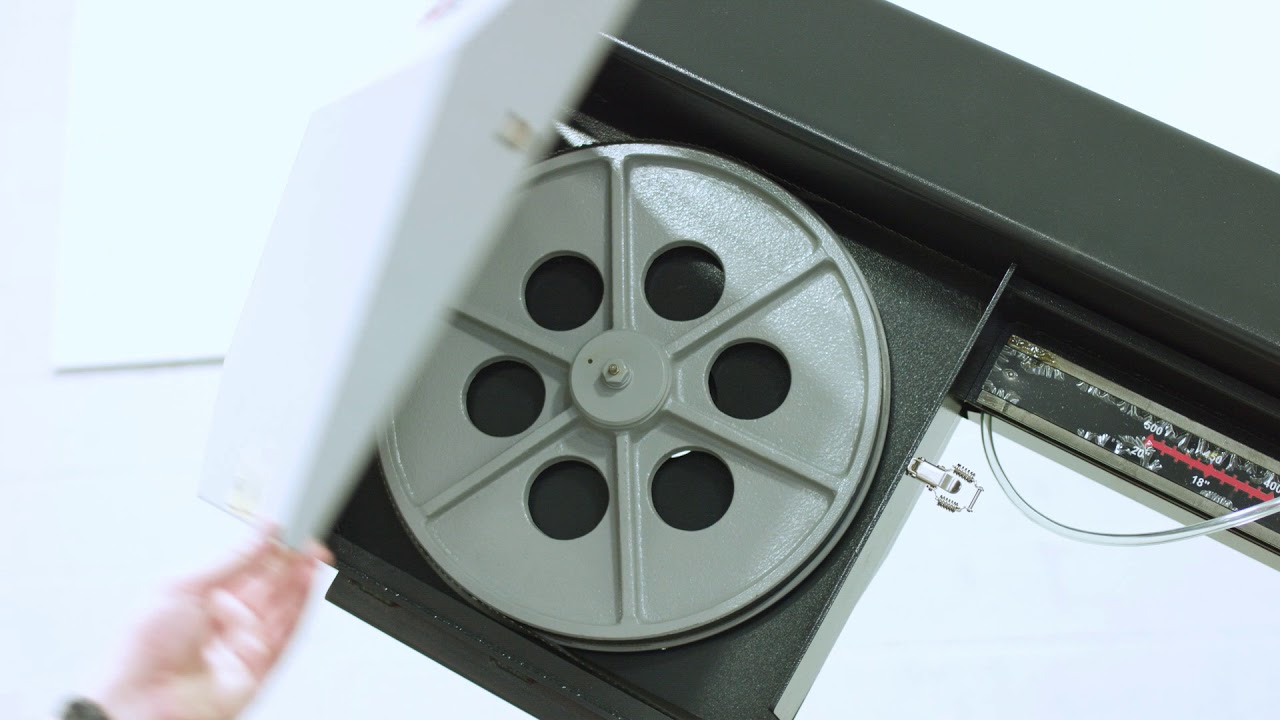

- Blade drive equipped with variable pulley system
- Adjustable flood coolant system
- Motor driven, synchronized wire blade brush
- Carbide blade guides and bearing provides additional blade support
- Rigid cast-iron guide arms
- Cast-iron hydraulic vise
- Adjustable down feed control
- Adjustable material stop
- Saw head automatically raises after each cut
Specifications
- Capacity:
- 0° Angle:
- Round: 13”
- Rectangular: 11” x 19.7”
- +45° Angle:
- Round: 11.5”
- Rectangular: 11” x 11”
- +60° Angle:
- Round: 8.7”
- Rectangular: 11” x 7.9”
- 0° Angle:
- Blade Speed: 60Hz: 75, 117, 166, 47 FPM
- Blade Size (LxWxT): 13' 7" x 1" x .035"
- Blade Motor: 3 HP
- Coolant Motor: 1/8 HP
- Workbed Height: 32.3"
- Weight: 2,079 lbs
- Floorspace (LxWxH): 74" x 107" x 82"
Manufacturer | |
SKU |
SH-500M
|
Shipping Method |
Flatbed
|
Weight |
2,250 lb
|
Dimensions |
79 × 112 × 87 in
|
Warranty |
1 Year
|
