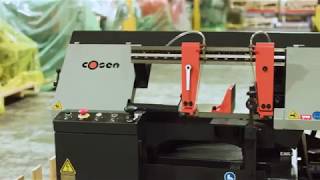

Cosen 10” Semi-Automatic Horizontal Scissor Style Mitering Band Saw SH-460M
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
SH-460M
|
6320
|
- Round Capacity at 0°: 10”
- Rectangular Capacity at 0°: 9” x 18.1”
- Blade Motor: 2 HP
- Workbed Height: 25.4"
Description
Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-460M fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
Features
- Hydraulic cylinder plus precision ground hinge support
- Heavy-duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
- Adjustable flood coolant system
- Carbide blade guides and bearings provides additional blade support
- Rigid cast-iron guide arms
- Cast-iron vise
- Blade cleaning chip brush
- Adjustable down feed and pressure control
- Saw head automatically raises after each cut
Specifications
- Capacity:
- 0° Angle:
- Round: 10”
- Rectangular: 9” x 18.1”
- -45° Angle:
- Round: 9”
- Rectangular: 9” x 9”
- -60° Angle:
- Round: 4.3”
- Rectangular: 9” x 4.3”
- 0° Angle:
- Blade Speed: 95, 150, 213, 321 FPM
- Blade Size (LxWxT): 11' 6" x 1" x .035"
- Blade Motor: 2 HP
- Coolant Motor: 1/8 HP
- Workbed Height: 25.4"
- Weight: 1,450 lbs
- Floorspace (LxWxH): 55" x 74.8" x 66.9"
Manufacturer | |
SKU |
SH-460M
|
Shipping Method |
Flatbed
|
Weight |
1,650 lb
|
Dimensions |
60 × 80 × 72 in
|
Warranty |
1 Year
|
