Cantek 6” Single End Tenoner ST152C

FREE SHIPPING

Manufacturer Part: EMT ID:
ST152C
16990

  • Spindle Diameter: 1.25”
  • Sliding Table Area: 50.4” x 17.7”
  • Maximum Sawblade Diameter: Ø 12”
  • Maximum Tenon Cut Length: 6”
Details below

Economical solution for cutting tenons for door and window frames.

The Cantek ST152C Single End Tenoner offers superior tenoning results in an economical solution. The 12” trim saw unit is mounted in front of the tenon heads and enables stock to be cut to the desired length. The two horizontal spiral insert knife tenoning heads are capable of producing a tenon up to 6” long. The heads are accurately adjusted using mechanical digital readouts. The spiral insert heads produce an extremely smooth finish result. The two opposed coping heads allow for long tenons to pass between to produce a profile to match your rail profile. The coping heads are also adjusted using precision mechanical counters.

Why Cantek ST152C Single End Tenoner?

  • Industrial cast iron machine frame for vibration free operation
  • (5) working units to produce a wide range of tenons and profiles for door, window components, and furniture parts
  • Accurate adjustment using mechanical digital readouts
  • Spiral insert knife tenon cutterheads with scriber tips for superior tenoning results
  • Opposed coping heads allow for profiling even with long tenons

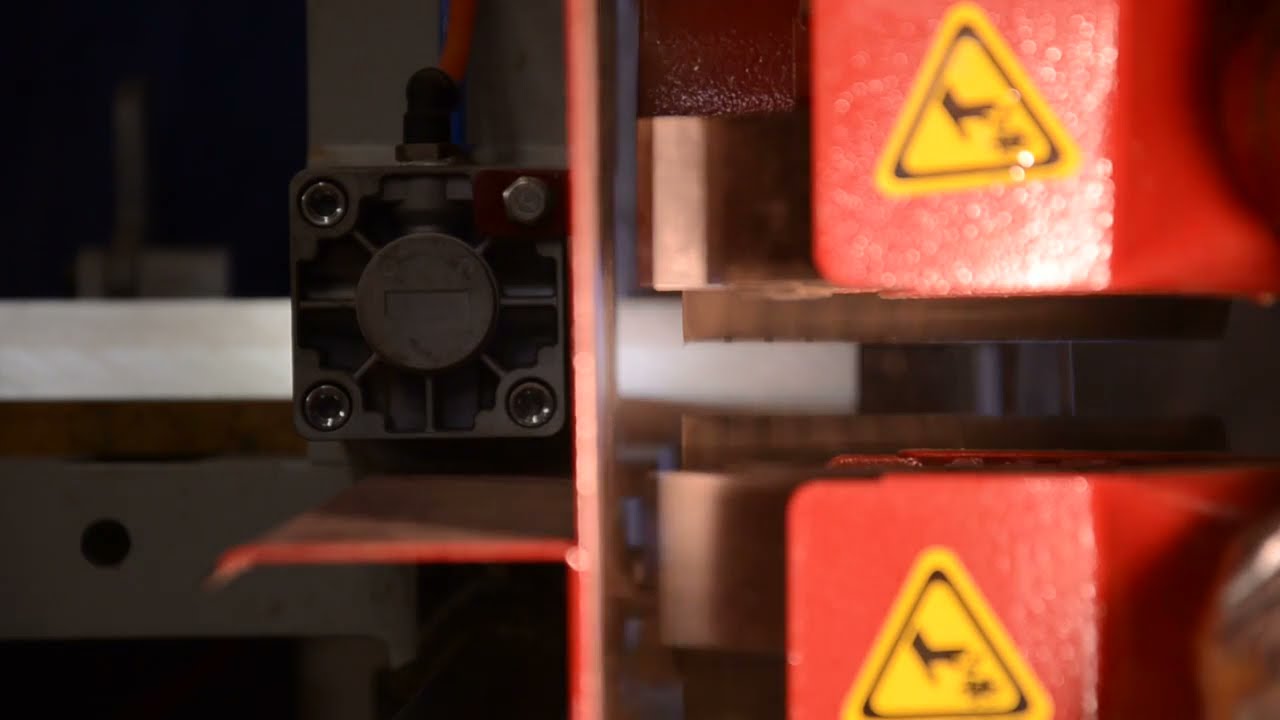

  • Vertical and horizontal pneumatic workpiece clamping ensures material is secure during tenoning operation
  • Infeed and outfeed safety guards
  • Sliding table rolls on precision machined "V" ways allowing for precise and smooth table movement
  • Mechanical stops for precision length cutting
  • Adjustable infeed fence determines stock removal length
  • Dust extraction ports on each working unit
  • Schneider electrical components to CSA standard

Working Units

  • Trim Saw
    • 12” dia. driven from tenon heads
    • 1.25” shaft diameter x 6″ long
    • 2800 RPM
    • Saw position moved by changing spacers
  • Tenon Heads
    • Carbide insert spiral tenon heads with scribing inserts
    • 152mm (6”) long x 127mm (5”) diameter tenons heads
    • 5HP motor drives both tenon heads
    • 1.25” diameter spindle
    • 3400 RPM
    • 1″ lateral adjustment of tenon heads
    • 14 mm x 14mm x 1.5mm carbide insert knives
  • Coping Heads
    • Max. dia. tooling: 6 3/8”
    • (2) 5 HP motors
    • 1.25” diameter spindle
    • 6000 RPM
    • 2.75” spindle length
    • Independent adjustment each head
    • (2) 4 knife wedge type cutterheads with chip breakers included (60o corrugated knives)
    • Counterbore locknut allows both heads to move close together

Specifications

  • Maximum Tenon Cut
    • Length: 6” (152 mm)
    • Width: 14.5” (370 mm)
    • Thickness: 5” (127 mm)
  • Maximum Cutterhead Size
    • Tenoning: 4.3” dia. x 6” long (110mm dia. x 152mm long)
    • Shaping: Ø 6-3/8″ (162mm)
  • Maximum Sawblade Diameter: Ø 12” (305mm)
  • Tenon Spindle
    • Spindle Diameter: 1.25”
    • Spindle Speed: 3400 RPM
    • Motor Horsepower: 7.5 HP
  • Cope Spindle
    • Spindle Diameter: 1.25”
    • Spindle Speed: 6000 RPM
    • Motor Horsepower: 5 HP x 2
  • Saw Spindle:
    • Spindle Diameter: 1.25”
    • Spindle Speed: 2800 RPM
    • Motor Horsepower: 7.5 HP
  • Sliding Table Area: 50.4” x 17.7” (1280 x 450 mm)
  • Net Weight: 1,716 lbs. (780 kgs)
  • Gross Weight: 1,914 lbs. (870 kgs)
  • Machine Dimensions (L x W x H): 66” x 73” x 46” (1680 x 1840 x 1150 mm)
  • Packing Dimensions (L x W x H): 67” x 31” x 56” (1700 x 780 x 1400 mm)
Manufacturer
SKU
ST152C
Shipping Method
LTL Freight
Weight
1,470 lb
Dimensions
67 × 31 × 56 in
Country of Origin
Taiwan
Warranty
1 Year
(Parts)
