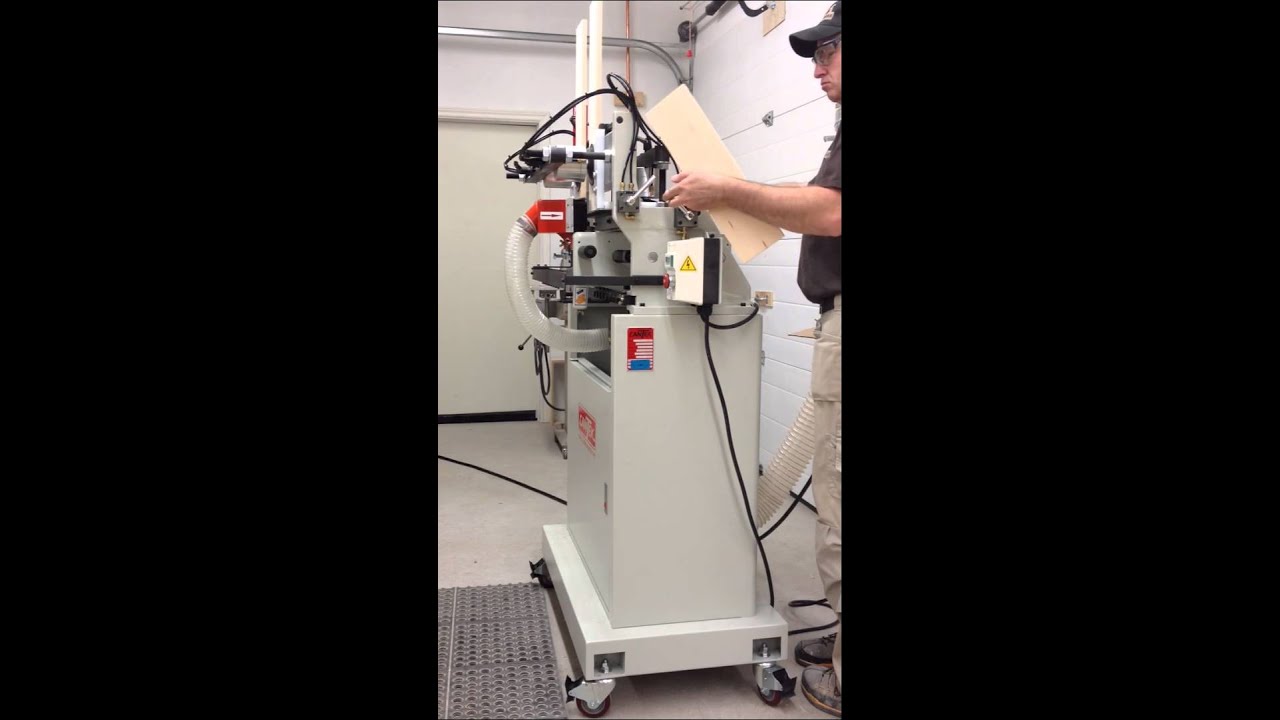

Cantek Single Phase Manual Dovetail Machine JDT-65

FREE SHIPPING

Manufacturer Part: EMT ID:
JDT-65
13090

  • Min. workpiece size: 7.9″ x 2.4″
  • Max. workpiece size: 59″ x 16.5″
  • Dovetail spacing: 1″, 1.5″, 2″, 2.5″
  • Table height from floor: 46.5″
Details below

Features

  • Max. workpiece size 59″ x 16 ½”
  • Workpieces are clamped by air clamps.
  • Enclosed-type stand.
  • Equipped with an indication bar for indicating cutting position.
  • Tenon width can be micro-metrically adjusted in 2 mm.
  • Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.
  • Equipped with one four-sided template providing four types of pitches between dovetails.
  • Standard pitch 1″, 1 ½”, 2″ and 2 ½” (Other sizes available on request)
  • The spindle accommodates 12 mm T.C.T. cutter bit.

Specifications

  • Min. workpiece size: 7.9″ x 2.4″
  • Max. workpiece size: 59″ x 16.5″
  • Min/Max dovetail height: 0.2″ ~ 7.1″
  • Min/Max front thickness: 0.28″ ~ 2.36″
  • Min/Max side thickness: 0.28″ ~ 3.6″
  • Number of spindles: 1
  • Spindle speed (RPM): 18500 RPM
  • Dovetail spacing: 1″, 1.5″, 2″, 2.5″
  • Table height from floor: 46.5″
  • Dust collection ports: front: 2.5″ / rear: 4″
  • Air pressure required: 6 bar
  • Motor power: 1 HP
  • Shipping dimensions: 42” x 31” x 63”
  • Machine weight: 440 lbs.
  • Shipping weight: 539 lbs
Manufacturer
SKU
JDT-65
Shipping Method
LTL Freight
Weight
539 lb
Dimensions
42 × 31 × 63 in
Country of Origin
Taiwan
Warranty
1 Year
(Parts)
