| Manufacturer Part: | EMT ID: |
|
JDT-75
|
13091
|
- Fixed pitch: 1” (25mm)
- Spindle diameter shank: 0.472” (12mm)
- Spindle motor: 2 HP
- Feed speeds: (3) 16, 22, 31 cycles/min
Features
- 21500 RPM spindle rotation for an extremely fine finish on dovetail joints
- High RPM spindle allows for precision machining of plywood & solid drawer sides
- Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints
- Dust hood for milling cutter
- Safety rail in front of spindle motor
- High quality pneumatics for smooth feeding, resulting in quality cutting
- Cast iron base to ensure vibration free cutting
- Automatic lubrication system to spindle stroke
- 3 cycle speeds for best finish results
Specifications
Machine
- Fixed pitch: 1” (25mm)
- Spindle speed: 21,500 RPM
- Spindle diameter shank: 0.472” (12mm)
- Spindle motor: 2 HP
- Feed motor: 2 HP
- Electrics: 230/3/60 = 13.6 Full Load Amps
- Feed speeds: (3) 16, 22, 31 cycles/min
- Net weight approx.: 990 lbs.
Work Piece Dimensions
- Working length: min. 7.87” (200mm) to max. 59” (1500mm)
- Working width: min. 2.36” (60mm) to max. 16.93” (430mm)
- Vertical material thickness: 0.275” (7mm) to 2.36” (60mm)
- Horizontal material thickness: 0.394” (10mm) to 1.18” (30mm)
| Manufacturer | |
| SKU |
JDT-75
|
| Shipping Method |
LTL Freight
|
| Weight |
1,210 lb
|
| Dimensions |
48 × 48 × 63 in
|
| Country of Origin |
Taiwan
|
| Warranty |
1 Year
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504

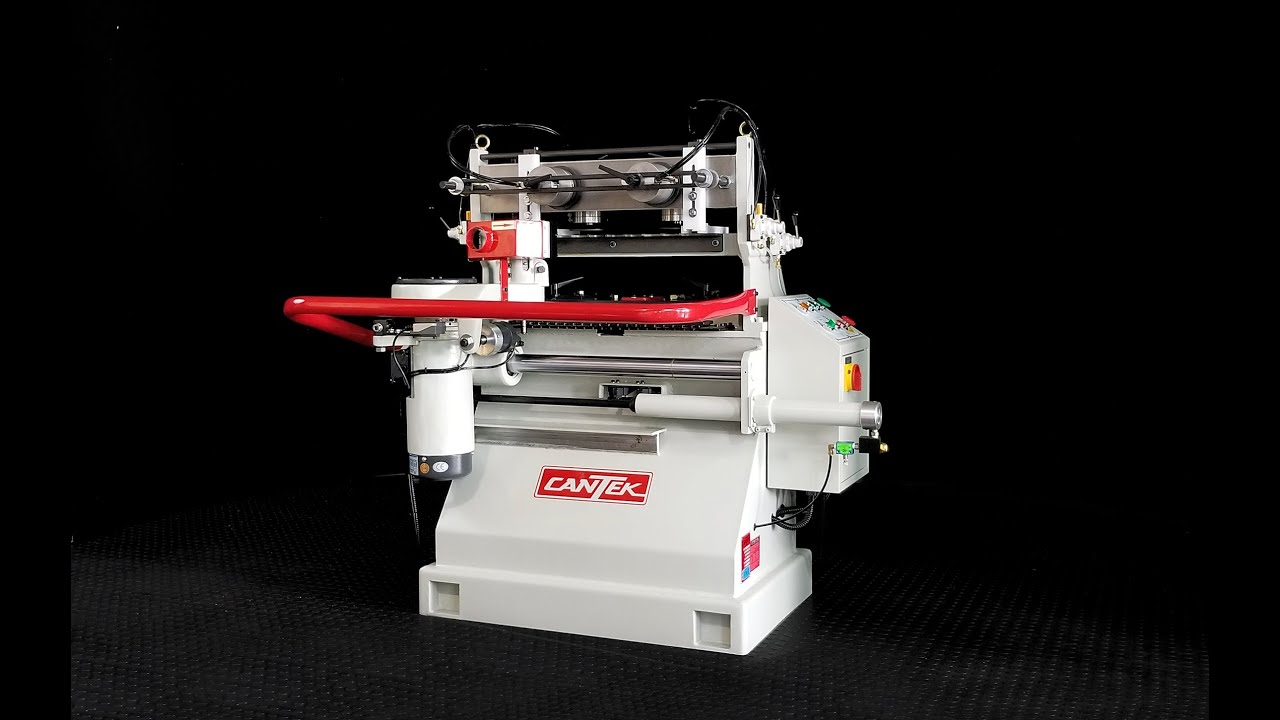

Cantek 2 HP Three Phase Automatic Dovetailer JDT-75
