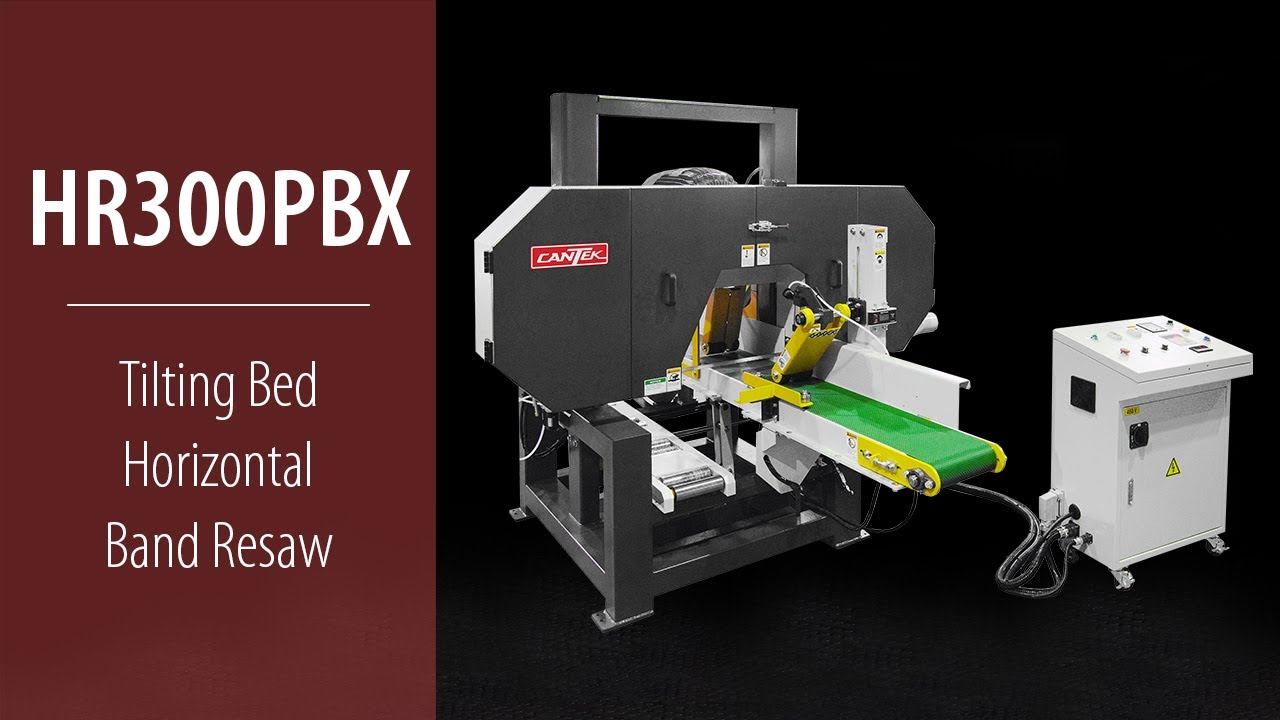

*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
HR-300PBX
|
13253
|
- Conveyor belt size: 11.2” x 215”
- Machine wheel dimensions: 28” Dia. x 2” Wide
- Main motor (Resaw wheels): 30 HP
- Variable feed speeds: 0~120 FPM (0~37 m/min)
Features
- Heavy-duty tubular steel frame
- Solid steel saw wheels – precision machined and balanced
- Motorized thickness (blade height) adjustment with digital position readout
- Hydraulic blade tensioning
- Precision saw suide system – with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
- Pneumatic pressurized top hold down rollers on feed conveyor
- Heavy-duty infeed guide-fence on conveyor right including holdover system
- Reinforced urethane conveyor belt for positive feeding and long life including
- Manually tilting feed belt for angle cutting from 0 – 45o
- Variable feed speed by VFD (frequency inverter)
- Motorized return conveyor belt allows material to be returned to the operator to be re-cut
- Air mist – blade cooling system
- Y Delta – low amperage starter on the saw motor
- Electrical components to UL/CSA standards – 460/3/60 electrics
- Smooth infeed system (limit switch & timer 1 to 3 seconds)
Specifications
- Max. workpiece size: 300mm x 300mm
- Distance from blade to conveyor: 4 – 250mm
- Conveyor belt size: 11.2” x 215” (285mm x 5470mm)
- Machine wheel dimensions: 28” Dia. x 2” Wide
- Main motor (Resaw wheels): 30 HP
- Conveyor motor: 3 HP
- Blade elevation motor: ¼ HP
- Variable feed speeds: 0~120 FPM (0~37 m/min)
- Dust hood diameter: 2 x 4”
- Saw blade size (Normal): 180” (L) x 2” (W)
- Feed belts – bed angle: 0 ~ 45°
- Voltage – Stock machine: 460/3/60 electrics
- Machine weight: 3960 lbs (1800 kgs)
- Shipping weight: 4400 lbs (2000 kgs)
- Shipping dimensions: 113” x 90” x 85” (2850 x 2270 x 2160mm)
Manufacturer | |
SKU |
HR-300PBX
|
Shipping Method |
LTL Freight
|
Weight |
4,400 lb
|
Dimensions |
113 × 90 × 85 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
