Manufacturer Part: | EMT ID: |
ABX
|
12873
|
- Accepts material up to 12" x 12" and uses a 12"-wide conveyor
- Main Drive Motor: 30 HP TEFC
- Variable feed speed from 0-95 feet (0-29 m) per minute
- Versatility: Rip 2-sided slabs; size and resaw 3-sided cants, 4-sided cants, and boards
Description

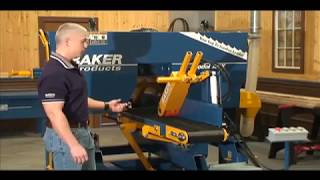

The Baker "AB" and "ABX" Band Resaws are designed to save space but give you the same great features of larger band resaws. The Baker "AB" and "ABX" feature the frame and headrig of our "B" or "BX" model, but use an "A" or "AX" model conveyor belt. This means that the head-rig can be adjusted up or down and the conveyor stays at a fixed height.
Because the conveyor belt stays at a fixed height, it is easier to interchange and integrate with other material handling systems in your facility. This versatile band resaw is perfect for those who need a space saving high production band resaw.
Features
- Accepts material up to 12" x 12" and uses a 12"-wide conveyor
- 28"-diameter dynamically balanced solid metal band wheels
- Baker’s exclusive guide plate and guide wheel system holds blade securely 0.072" kerf standard. Less than 1/16" kerf possible with other blades.
- Simple and easy to operate
- Versatility: Rip 2-sided slabs; size and resaw 3-sided cants, 4-sided cants, and boards
- Variable feed speed from 0-95 feet (0-29 m) per minute
- Compact footprint takes up minimal room: 7’ x 7’ (2.13m x 2.13m)
- Adjustable headrig with fixed conveyor height for easy integration with other machinery, allowing longer length materials to be processed easily.
Specifications
- Number of heads: 1
- Guides: Baker Low-Profile Flat Guides with hardened tool steel guide plates with rear backup roller guide wheels
- Dust Output: 6"x6" (15.24cm x 15.24cm) square outlet with a 90° adapter chute with a 4" (10.2 cm) diameter outlet, which can be rotated to serve four directions of discharge. 500 CFM recommended.
- Dimensions & Weight:
- Length: 64 in. (1.63 m)
- Width: 72½ in. (1.84 m) with return conveyor
- Height: 68 in. (2.03 m)
- Weight: 2,000 lbs. (907 kg)
- Power
- Main Drive Motor: 30 HP TEFC
- Electrical: All 3-phase voltages available. Completely prewired. NEMA 12 enclosure with starter and overload protection standard.
- Feedworks/Conveyor Hydraulic Motor: Driven by main engine. Hydraulics has 10gallon reservoir, flow control valve for variable feed speed, filter, start/stop valve.
- Feedworks and Capacities
- Feedworks: Rough-top belting and hold down wheel
- Material Capacity: 12" x 12" (30 cm x 30 cm)
- Feed speed: Fully variable 0 to 95 fpm (0 to 29 m per minute)
- Hold-down system: Hydraulically powered hold-down wheel system with Western Conveyor width: "AB" = 6" (15 cm)Rollers "ABX" = 12" (30 cm)
- Blades
- 14’2" x 1" x 0.035" hardback or 14'2" x 1 1/4" x 0.035" hardback
- Blade Tensioning: Mechanical spring
- Kerf: 0.072" (1.8288 mm)
Options
- Computer Setworks
- Material Handling Conveyors
- Vulcanized endless belt
- Flat Top Belting
- Larger Motors
- Shingle Belt
- Wedge Belt
- Hold-over Wheels
- Non-powered hold-down
- Blade height Digital Readout
- Return Conveyor
- Tilting Feedworks (0° to 26°) with degree meter
- Air Tensioning
Manufacturer | |
SKU |
ABX
|
Shipping Method |
LTL Freight
|
Weight |
2,000 lb
|
Dimensions |
70 × 80 × 75 in
|
Country of Origin |
United States of America
|
Warranty |
1 Year
|
