| Manufacturer Part: | EMT ID: |
|
BA9-RDB325220
|
205
|
- Computer Programmable
- Touch Screen
- 360 Degree Bend Left or Right
- Fast, 10-Seconds to 180 Degrees
Description

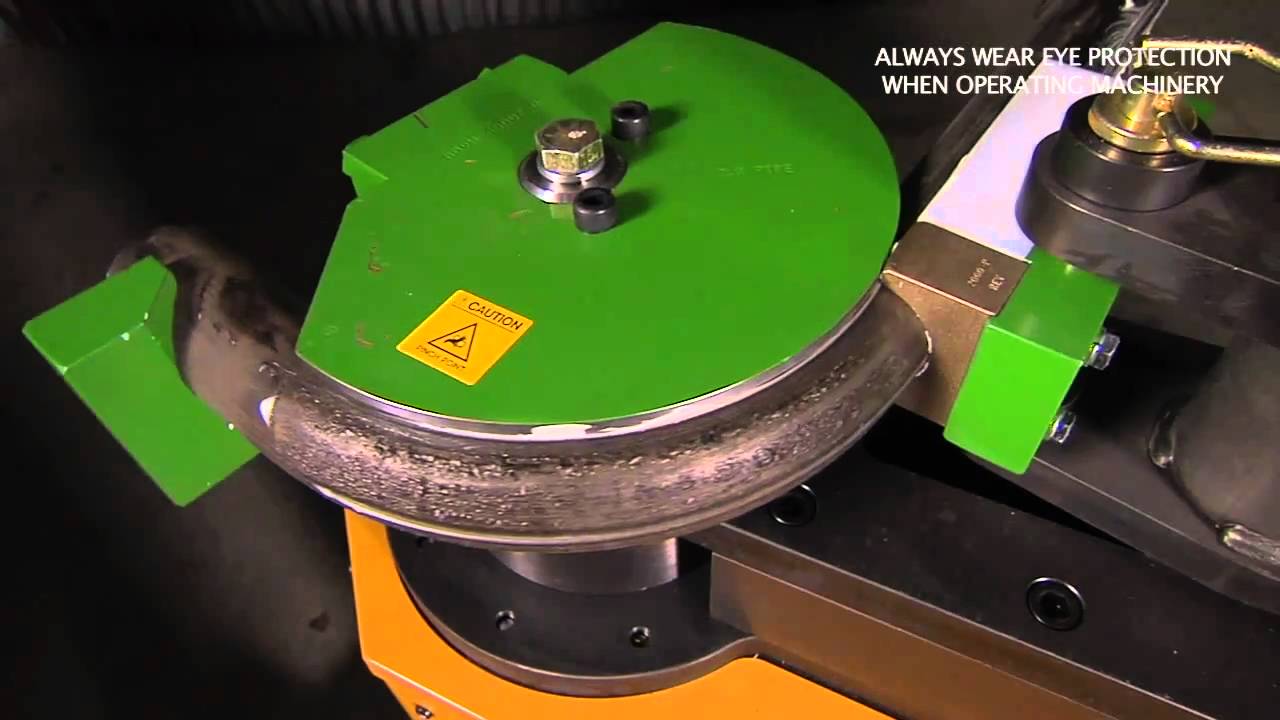

Need to put more muscle in your shop? The RDB-325 pipe bender might just be your answer, has a massive capacity of 2" Schedule 80 pipe (Mild Steel T.S. 64,000 PSI) and 3 “round tubing with a 16" maximum center lines depending on material OD. Tooling for the RDB-325 is the same high quality tooling that entire line of Baileigh Industrial top loading tube benders use and with over 5000 die sets available, there will be one for your application.
The RDB-325 requires just 220 Volts of single phase power that allows it to work in almost any fabrication setting. This pipe bender comes standard with a simple to use touch-screen controller that holds up to 170 programs with up to ten bends per program. If more memory is needed, a memory card (standard 2CB SD card, max) can be used to store programs as well. An optional indexing table can be fitted allowing the fabricator to bend on varying planes and easily duplicate complex bends.
Like most of our RDB tube bending machines, this one comes standard with simple to use foot pedal controls and a swing away counter die system for increased production. Another nice feature of the RDB-325 pipe bender is that it can rotate up to 360 degrees in either direction, making it a great machine when using our optional universal bending plate for rod applications.
This bending machine has been designed and built to be a work horse for any fabrication shop for decades to come.
****Baileigh RDB-325 bender dies are sold seperately****
Specifications
| Minimum CLR | .5" |
| Minumum OD | .25" |
| Mild Steel Solid Rod | 1.25" |
| Mild Steel Pipe Schedule 80 | 2" |
| Mild Steel Round Tube Wall | 3" |
| Mild Steel Square Tube (Wall) | 2" |
| Stainless Steel Pipe Schedule 40 | 2" |
| Stainless Steel Round Tube Wall | 3" |
| Chromolly Round Tube Wall | 3" |
| Aluminum Round Tube Wall | 3" |
| Maximum Center Line Radius Clr | 16.5" |
| Power | 220V Single Phase |
| Shipping Weight | 1200lbs |
| Shipping Dimensions | 60"x32"x48" |
| Manufacturer | |
| SKU |
BA9-RDB325220
|
| UPC |
19907813729
|
| Shipping Method |
LTL Freight
|
| Weight |
1,100 lb
|
| Dimensions |
60 × 32 × 48 in
|
| Country of Origin |
United States of America
|
