| Manufacturer Part: | EMT ID: |
|
BA9-RDB100
|
183
|
- Two Speeds
- 180 Degree One-Shot Bending For Lighter Materials
- Integrated Degree Dial With Bend Indicator Included
- Infinite Tooling Possibilities
Description
Looking for a top quality manual tubing bender to help out with production in your shop? The RDB-100 from Baileigh Industrial is perfect for the industrial fabricator that needs to bend lower production runs with very professional looking bends. Constructed of steel plate the RDB-100 tubing bender ships mostly assembled with only the handle and stand needing to be attached. Like all top loading tube benders from Baileigh Industrial, the RDB-100 was made to accept hundreds of round and square tubing die sets as well as round pipe dies sets. The RDB-100 is capable of bending up to 1-3/4" OD tubing with a maximum wall thickness of .095" and 1" schedule 40 pipe.

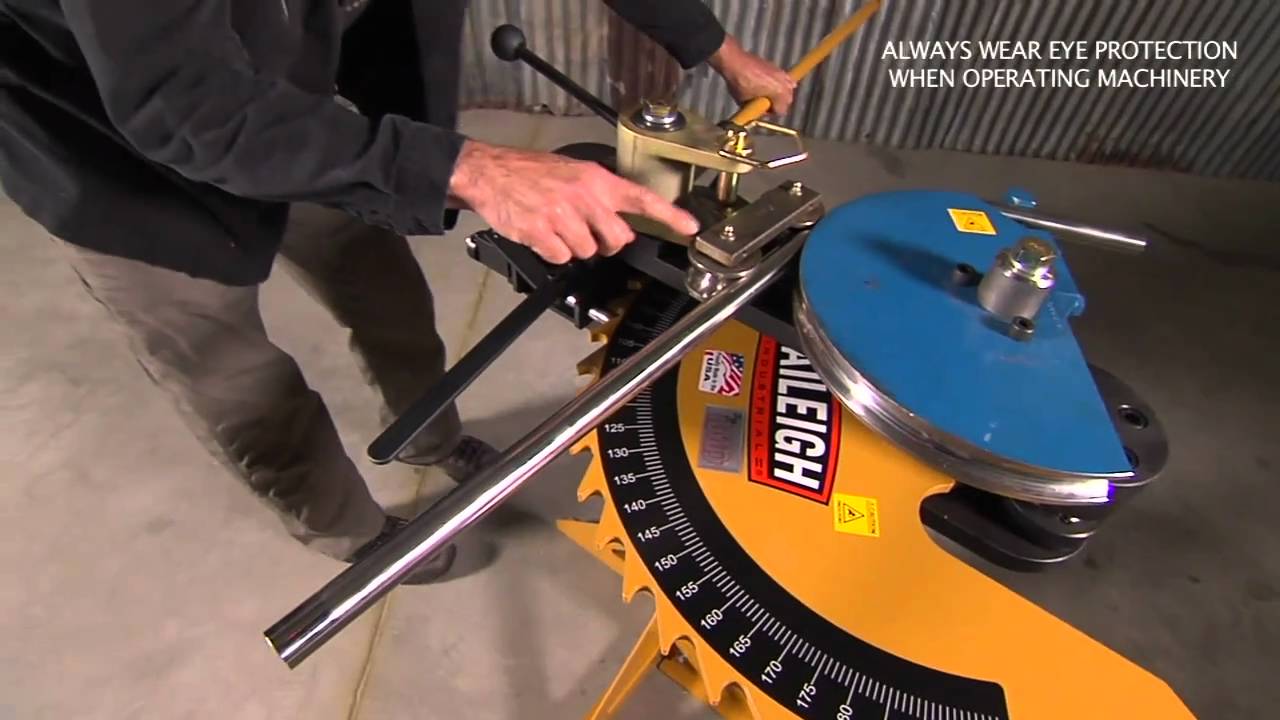

The RDB-100 manual tubing bender from Baileigh Industrial uses a large diameter indexing plate that allows the operator to bend up to 206 degrees (180 degrees plus spring back) without having to re-index and re-pin common on most other manual tube benders on the market. A tension spring back mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials the RDB-100 ratcheting bend system can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the manual bender and bend without the power of the indexing unit.
The RDB-100 includes the stand, degree dial, and handle. A large degree scale displays your bend angle and all the tooling has a start of bend indicator line so complex bends can be made with ease. A quick release counter die system allows for quick loading and unloading of the material.
****RDB-100 does not include any bender dies****
| Minimum CLR | .5" |
| Minimum OD | .25" |
| Mild Steel Solid Rod | 1" |
| Mild Steel Pipe Schedule 40 | 1" |
| Mild Steel Round Tube Wall | 1.75" (.083) |
| Mild Steel Square Tube (Wall) | 1" (.125) |
| Stainless Steel Pipe Schedule 40 | .75" |
| Stainless Steel Round Tube Wall | 1.5" (.083) |
| Chromolly Round Tube Wall | 1.5" (.083) |
| Aluminum Round Tube Wall | 2" (.125) |
| Maximum Center Line Radius Clr | 10.5" |
| Power | Manual |
| Shipping Weight | 290lbs |
| Shipping Dimensions | 42"x22"x42" |
| Manufacturer | |
| SKU |
BA9-RDB100
|
| UPC |
19907415558
|
| Shipping Method |
LTL Freight
|
| Weight |
410 lb
|
| Dimensions |
48 × 45 × 26 in
|
| Country of Origin |
United States of America
|
