• Baileigh RDB-125 Rotary Draw Bender  at Elite Metal Tools
*Image may display optional items not included with purchase.
FREE SHIPPING
$7,078.07
$5,829.00
You save $1,249.07!

Manufacturer Part: EMT ID:
BA9-RDB125
187

  • Low Pressure Industrial Grade Hydraulic System
  • Industrial Drop On Die Sets For Fast Tooling Changes
  • Anti-Spring Back Mechanism
  • Foot Pedal Operation
Details below

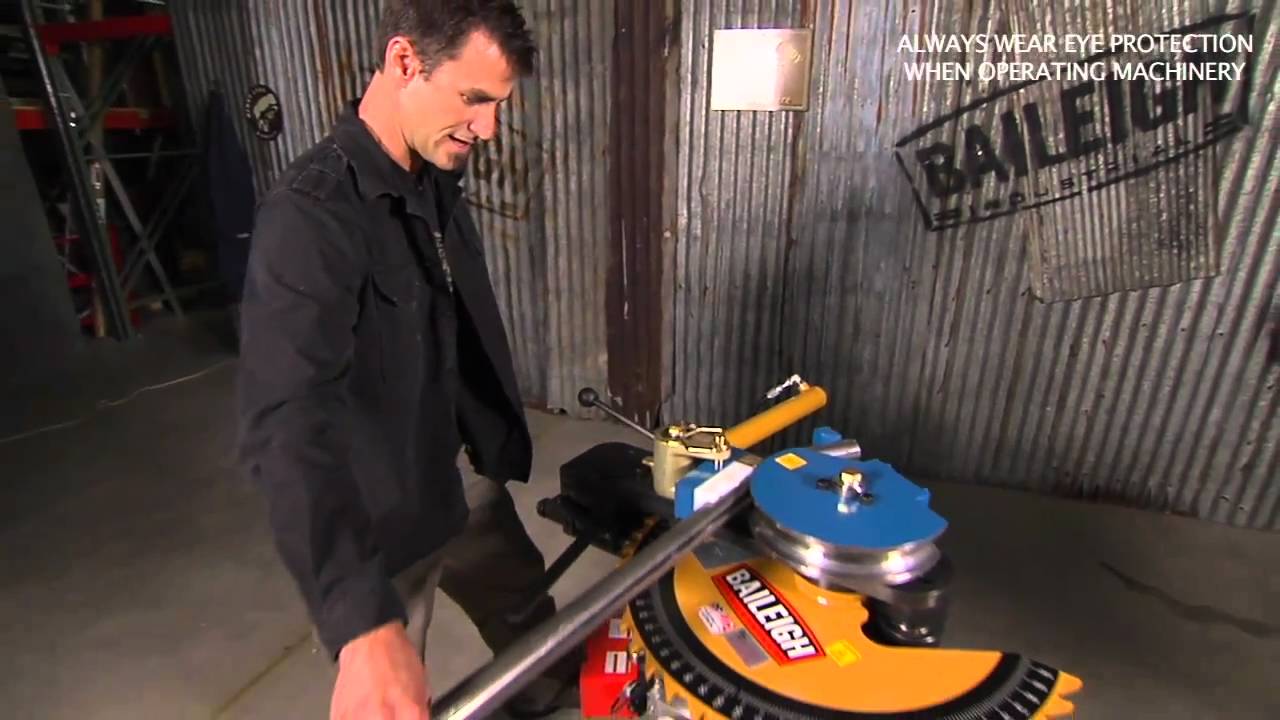

Have a manual bender and want to step up to a hydraulic unit to increase productivity and relieve strain on your body, well the RDB-125 rotary draw bender is just what the doctor ordered.  This hydraulic bender is designed to work with all Baileigh Industrial “drop on" tool sets and constructed of only the best materials.

The RDB-125 operates much like the machine it was based from, the RDB-100, but it incorporates a hydraulic system to turn the ratchet plate and do the actual bending.  Requiring only 110 volts to power it, this pipe bender uses powerful low pressure industrial grade hydraulics making it quiet, quick, and very safe to use even when bending at full capacity.  The RDB-125 has a capacity of 2-1/2" OD tubing, 2" OD Chromalloy, 2" square tubing, and 2" schedule 40 pipe. The RDB-125 has a maximum center line of 8" depending on the outside diameter of the material being bent.

The RDB-125 will bend to 200 degrees allowing for true 180 degree bends without having to repin the die set and it only takes 4 complete pushes to reach 180 degrees. Utilizing its built in anti-spring back mechanism, the RDB-125 can retract its hydraulic cylinder without worry of losing its place in the bend.  Just retract and push again, simple and easy.  A quick release counter die positioner is also included to make material loading and unloading a breeze.

****Baileigh RDB-125 does not include any bender dies****

RDB-125 Specifications

Minimum CLR .5"
Minimum OD .25"
Mild Steel Solid Rod  1.25"
Mild Steel Pipe Schedule 40 2"
Mild Steel Round Tube Wall 2.5" (.125)
Mild Steel Square Tube Wall 2" (.125)
Stainless Steel Pipe Schedule 40 1.5"
Stainless Steel Round Tube Wall 2.375" (.125)
Chromolly Round Tube Wall  2.5" (.125)
Aluminum Round Tube Wall 2.5" (.126)
Maximum Center Line Radious CLR 10.5"
Power  110Volt
Shippign Weight  546lbs
Shipping Dimensions  42x22x42



Manufacturer
SKU
BA9-RDB125
UPC
19907415565
Shipping Method
LTL Freight
Weight
590 lb
Dimensions
60 × 44 × 77 in
Country of Origin
United States of America
