Baileigh Hand Bender RDB-10

The RDB-10 hand bender from Baileigh Industrial is perfect for bending air lines, brake lines, fuel lines, and general hydraulic lines.  If you’re job entails building or repairing race cars, auto and airplane repair or restoration, an automated machinery builder, you know the value of properly bent lines.  The RDB-10 manual hand bender will save you time and money from the first moment you use it.

The RDB-10 comes standard with 10 different size combinations from 1/4" to 5/8" OD in either 3 or 5 times the diameter radiuses. The RDB-10 works great with mild steel, certain coppers and aluminums, as well as stainless steel. It comes standard with a heavy pedestal, tooling rack, and bending machine.

Included Die Sets
1/4 x 3D 6.350 mm x 3D
1/4 x 5D 6.350 mm x 5D
5/16 x 3D 7.938 mm x 3D
5/16 x 5D 7.938 mm x 5D
3/8 x 3D 9.525 mm x 3D
3/8 x 5D 9.525 mm x 5D
1/2 x 3D 12.7 mm x 3D
1/2 x 5D 12.7 mm x 5D
5/8 x 3D 15.875 mm x 3D
5/8 x 5D 15.875 mm x 5D

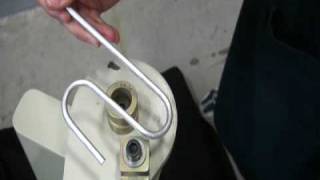

It's easy to use and can bend tubing up to 180 degrees. Because of the design, it can do serpentine bends with ease at very tight radiuses depending on the OD, material and wall thickness.
