Manufacturer Part: | EMT ID: |
TkHemKRF(460V)
|
18877
|
- Speed: 90 feet per minute
- Motor: 5 HP 460V Three Phase
- Drive: Matched Double Vee Belt
- Feed table height: 34 5/8”
Description

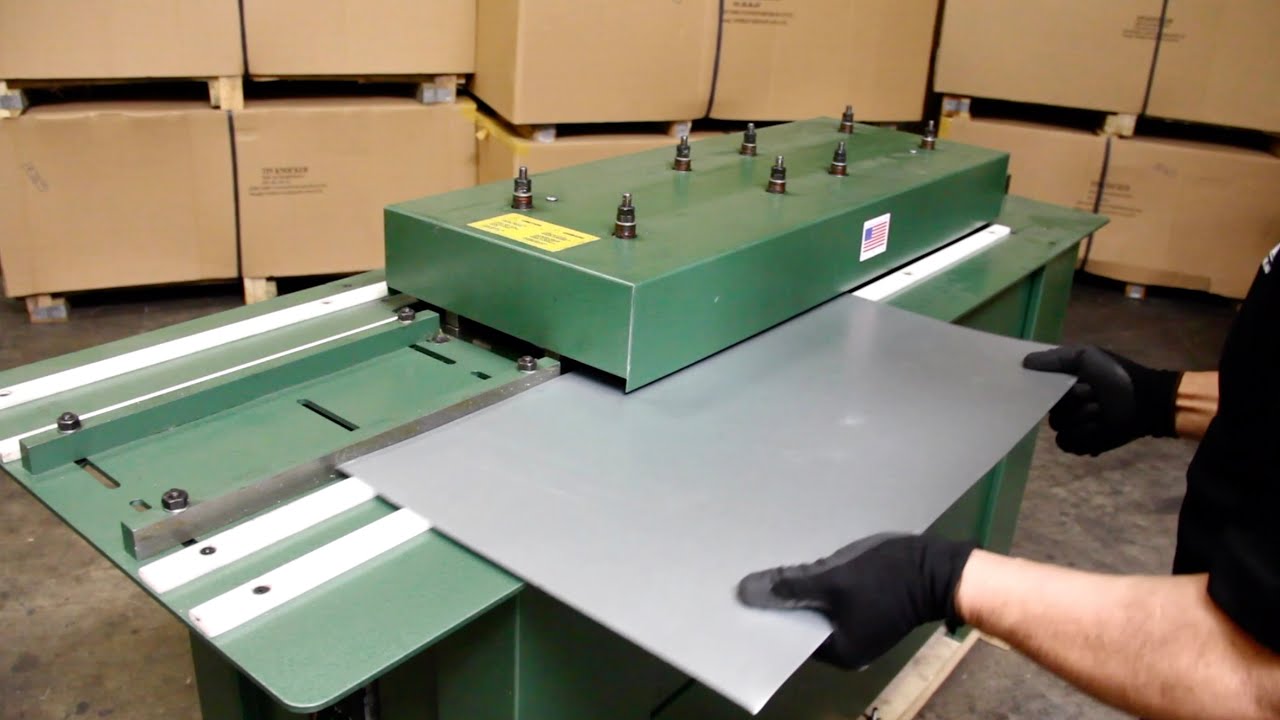

This machine is standard equipped with no tooling in the center position and (2) sets of outboard shafts equipped with;
- ½” x 180-degree hem rolls for 20-26ga (right side)
- ½ Hem with 5/8” Kick Rolls (left side)
Specifications
- Speed: 90 feet per minute
- Motor: 5 HP / 460V / Three Phase / 60Hz / 1800 RPM
- Drive: Matched Double Vee Belt
- Base: Arc Welded Steel. Heavy top plate.
- Dimensions: 68” long, 24” wide, 48” high
- Feed table height: 34 5/8”
- Shipping Weight: Approximately 1050 lbs.
Manufacturer | |
SKU |
TkHemKRF(460V)
|
Shipping Method |
LTL Freight
|
Weight |
1,050 lb
|
Dimensions |
69 × 30 × 50 in
|
Warranty |
1 Year
|
