$11,679
| Manufacturer Part: | EMT ID: |
|
TkH1652
|
6259
|
- Max Shearing Capacity (Mild Steel): 16 Ga.
- Max Shearing Capacity (Stainless Steel): 20 Ga.
- Maximum Cutting Length: 52"
- Standard Motor: 3 HP 220V Single Phase
Description

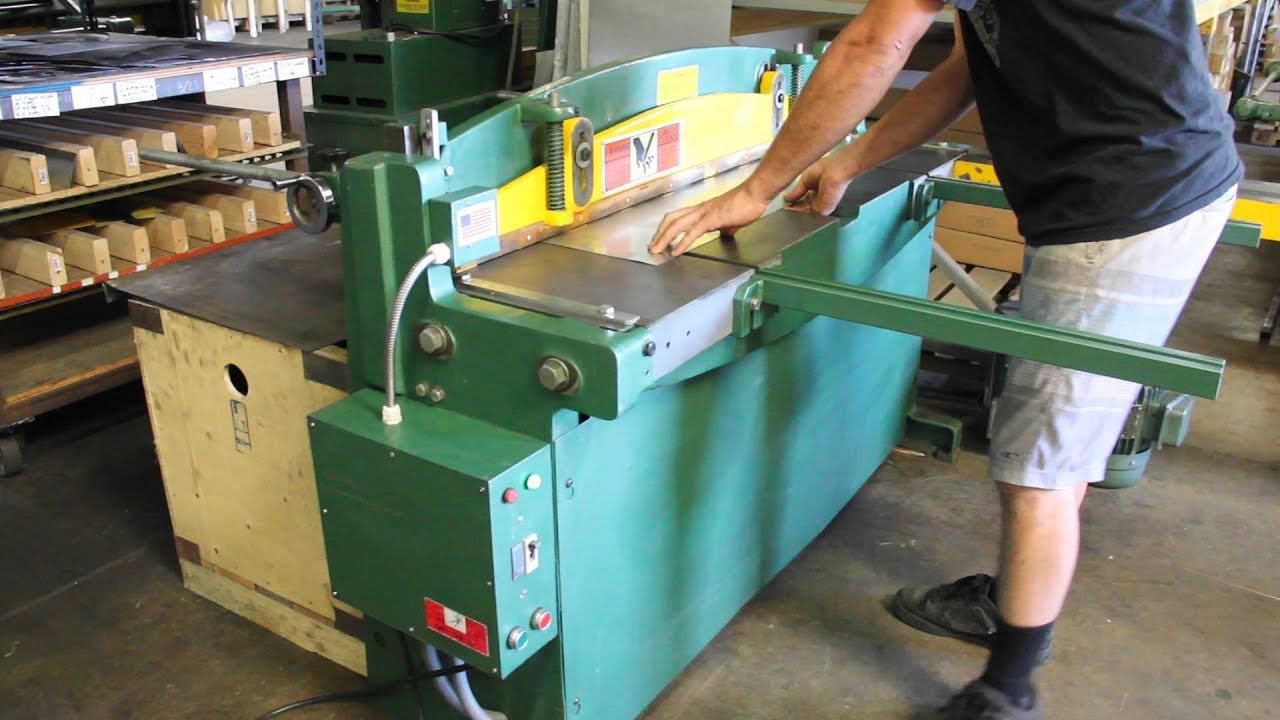

The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action, rear operated parallel rack and pinion back gauge, reversible 4 ft. squaring arm with embedded scale and 3 drop stop gauges. Also includes a one shot lube system.
Specifications
- Max Shearing Capacity (Mild Steel): 16 Ga.
- Max Shearing Capacity (Stainless Steel): 20 Ga.
- Maximum Cutting Length: 52"
- Back Gauge Range: 30"
- Front Gauge Range: 37"
- Standard Motor: 3 HP / 220V / Single Phase / 60 Hz
- Floor Space (gauges in position): 66" x 76" x 42"
- Dimensions: 72" x 48" x 36"
- Weight: 1350 lbs
| Manufacturer | |
| SKU |
TkH1652
|
| Shipping Method |
LTL Freight
|
| Weight |
1,350 lb
|
| Dimensions |
72 × 48 × 36 in
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504
Tin Knocker 16Ga. 52" 220V Single Phase Hydraulic Shear H1652
