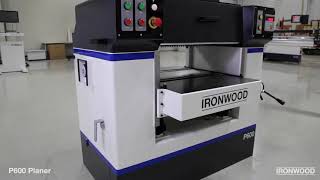

Stiles Machinery Ironwood 230V 24” Single Surface Planer P600

Description

The Ironwood P600 Thickness Planer is the craftsman’s choice for creating beautiful, professional pieces.  With a sturdy cast iron base constructed with (4) heavy-duty jack screws and standard features like the segmented chip breaker and infeed roller, the Ironwood P600 planer ensures accuracy and superior performance above the rest. This machine caters to the American woodworker in offering enhanced engineering designs and superior build construction for long-lasting and trouble-free performance.

Technical Advantages

• Machine base is manufactured from high-quality cast iron and incorporates strong interior construction supports to ensure motionless and vibration-free performance
• Helical tooling is carefully machined, tempered, and dynamically ground balanced
• 4” diameter spiral cutterhead features six rows of carbide inserts to ensure longer-lasting and sharper tool life
• Newly designed outfeed pressure roller configuration features solid construction and spring-pressure adjustments to provide additional strength and ensure appropriate levels of tension
• Two 3” adjustable bed rollers for planing of rough or finished lumber, as well as glued panels
• Powered table height positioning via keypad entry within the digital controller
• A 1/2 HP motor drives the powered table elevation, providing operators with fast and convenient thickness settings
• Both the infeed chipbreaker and the outfeed pressure rollers incorporate spring-pressured adjustments to ensure the positive contact on the work piece as it is passed through the planer

Efficient Yet Versatile

• Integrated digital controller with keypad entry for powered table positioning offers quick and convenient thickness settings to the thousandths of an inch
• Precisely designed infeed anti-kickback fingers to enhance the operator safety element
• 2-sided carbide insert design within the helical cutterhead provides users with a higher chip-removal rate, superior surface finishing, and lower noise levels
• Variable feed speed controls, from 19 to 39 FPM, are conveniently located on the upper side panel of the planer for improved versatility
• Centralized control panel includes on/off controls for the cutterhead and feed, motorized table controls with keypad entry and digital readouts, and an emergency stop
• Ironwood’s bed roller adjustments feature the ‘quick-set’ adjustment from 0.0” to 0.5” as well as the handy raise and lowering lever to ensure smooth feed rates
• An enclosed micro-adjustment dial is also provided to ensure precise positioning of the table

Safety

• Micro-adjustment dial for the table elevation is redesigned in an enclosed format to reduce the chances for operator injury
• Table raise and lowering operations controlled by two limit switches
• Equipped with carefully designed anti-kickback fingers
• All electrics are UL and CSA approved and feature Telemechanique components
• Emergency Stop
• One year warranty

Specifications

• Max width of work piece: 630 mm
• Max. thickness of work piece: 300 mm
• Min. thickness of work piece: 10 mm
• Max cutting depth: 8 mm
• Min length of work piece: 220 mm
• Cutterhead: Helical
• Cutterhead Ø: 98 mm
• Number of knives: 93
• Cutting circle: 102 mm
• Cutterhead speed: 4800 RPM
• Table width: 685 mm
• Table length: 870 mm
• Infeed rollers: (1) 76 mm roller
• Outfeed rollers: (2) 60 mm rollers
• Table roller: (2) 68 mm
• Table adjustment: Motorized - keypad
• Table position display: Digital
• Variable feed speed: 19 - 39 FPM
• Cutterhead motor: 10 HP IE3
• Feed motor: 1 HP
• Table raise/lower motor: 1/2 HP
• Dust requirements: 6" port / 800 CFM
• Shipping weight: 2100 lbs.
• Electrical connection*: 230V | 3-phase | 60 Hz.

*460V power upgrades available upon request. Additional charges may apply.

Options

• Professional Installation
