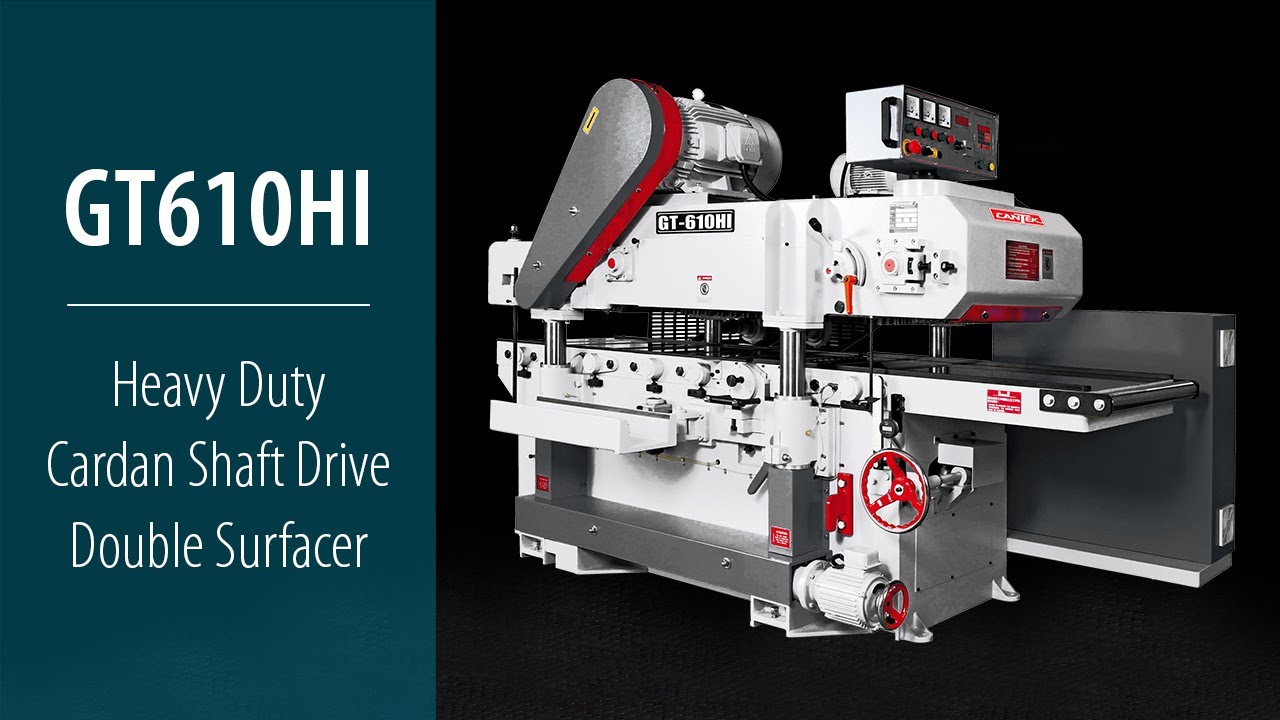

Cantek 24” Heavy Duty Cardan Shaft Drive Double Surface Planer GT610HI

High efficiency and high-speed double surface planing.

The Cantek GT610HI Cardan Shaft Drive Double Surface Planer is capable of speeds up to 98 feet per minute and its robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bottom head allowing it to act like a jointer to flatten the board prior and then a sectional infeed roller feeds the material through the top head for accurate dimensioning.

Why Cantek GT610HI Cardan Shaft Drive Double Surface Planer?

• Powerful 40HP top head motor and 30HP bottom head motor for maximum stock removal
• Full cardan shaft feed system allowing for faster feed speeds up to 98 FPM
• Planing capacity up to 24” wide and 8” thick
• Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
• (7) bed rollers including (3) driven rolls for superior feed speeds
• Spiral insert knife cutterheads with 6 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality

Key Advantages

• Cast iron machine frame for superior vibration damping resulting in a long machine & bearing life
• Chrome-plated tables and top and bottom for maximum wear resistance
• Cutterheads are mounted in precision ABEC 7 RHP bearings
• Feed system uses a spring-loaded pin arrangement to pass material over the bottom jointing head.
• Sectional serrated infeed roll before the top cutterhead
• Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
• Digital thickness control for quickly and precisely setting the desired thickness
• Upper assembly is adjusted for desired thickness by four large diameter cylindrical posts
• Adjustable infeed bed by easily accessible handwheel to set desired stock removal on the bottom head
• Easy to access swivel control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
• Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on startup
• Automatic lubrication to the conveyor feed system
• High quality Schneider electrical components to CSA/UL standard

Features

• Cardan shaft drive
• Ergonomic swivel control panel
• Removeable bottom cutterhead
• Spring loaded pin feed system
• Bed rollers
• Infeed bed adjustment
• Feed pressure adjustment
• Auto lubrication to feed conveyor
• Safety covers

Specifications

• Max. Working Width: 24” (610mm)
• Max. Working Thickness: 8” (200mm)
• Min. Working Thickness: 5/16″ (8mm)
• Min. Working Length: 12” (300mm)
• Cutterhead RPM: 5000 RPM
• Cutterhead Diameter: 5.3” (135mm)
• Feed Speed: 30-98 FPM (10 – 30 m/min)
• Cutterhead Motor
  • Top: 40 HP
  • Bottom: 30 HP
• Feed Motor: 5 HP
• Table Rolls: 7 (3) driven
• Opening Hoist Motor: 1 HP
• Machine Weight: 8,800 lbs. (4000 kgs)
• Machine Dimensions (L x W x H): 112” x 67” x 67” (2830x1700x1700mm)
• Shipping Weight: 9,240 lbs. (4200 kgs)
• Shipping Dimensions (L x W x H): 115” x 75” x 75” (2900x1900x1900mm)
