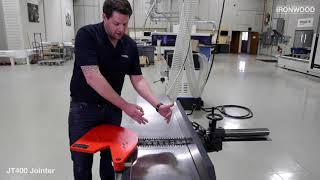

Stiles Machinery Ironwood 230V 16” Jointer JT400

Description

The Ironwood JT400 Jointer marks the beginning of fine craftsmanship. This machine offers a 16” cutting width, enhanced engineering designs, and superior build construction for long-lasting and trouble-free performance. The Ironwood JT400 Jointer also includes convenient standards like the fold-away bridge guard, a helical cutting system for smooth, quiet operations, and a 96” cutting length; Ironwood jointers deliver an unbeatable value.

Technical Advantages

• Solid construction with heavy-duty cast iron to ensure vibration-free face and edge jointing operations
• 16” wide, cast and machined tables, feature accurate withdrawing movements to ensure parallel passage without risk to the cutterhead
• The cast iron tables are balanced by robust and hard-wearing springs, which can be adjusted from the operator’s working position
• Large diameter spiral cutterheads are ground and balanced and mounted on sealed ball-bearings to ensure absolute performance and precision
• Infeed and outfeed tables, offering a 96” cutting length, provide operators with the needed support to perform precise face-and edge-jointing work
• Analog scales for quick and simple viewing of the table height settings
• Centralized control panel provides operators with the cutterhead power switch, an emergency stop, and the power disconnect
• Infeed and outfeed tables are equipped with slotted table lips on either side of the cutterhead to aid in reducing additional operation noise

Efficiency Features

• Proven parallelogram design allows the infeed and outfeed tables to travel along the cutting circle which results in an improved cutting finish
• Features interchangeable European-style bridge guard that folds away and allows the operator to easily move around the machine for faster end-results. Traditional, spring-loaded cutter guard also available with interchangeable design
• Quick depth-of-cut adjustments
• Fully enclosed, solid base to dampen vibration and ensure smooth operations
• 16” spiral cutterhead with 2-sided carbide insert design
• Helical cutting system ensures smoother and quieter operations, while also improving tool change over time and eliminating the need for sharpening
• Locking knobs are located on the front panel of the machine to ensure the secure positioning of the tables
• Vertical adjustment levers offer quick set-ups for the infeed and outfeed tables
• Magnetic contact with over-current protection

Safety and Comfortable

• Locking knobs ensure the tables are fixed into position to prevent any accidental movement
• Interchangeable cutter guards: Bridge guard and Traditional Spring-loaded
• Emergency Stop
• All electrics are UL and CSA approved and feature Telemecanique components
• One year warranty

Specifications

• Max width of work piece: 16"
• Table length: 96"
• Table width: 16"
• Table height: 31.5"
• Max cutting depth: 3/4"
• Fence size: 47" x 5.5"
• Fence tilt: 45 degrees
• Positive stops: 45, 90, 135 degrees
• Cutterhead speed: 5000 RPM
• Number of knives: 60
• Cutterhead insert size: 30 mm x 12 mm x 1.5 mm
• Cutting circle: 140 mm
• Rabbeting capacity: 3/4"
• Motor: 7.5 HP IE3
• Dust requirement: 6" Port / 700 CFM
• Shipping dimensions: 2540 mm x 780 mm x 1050 mm (100 x 31 x 42”)
• Shipping weight: 1,380 lbs
• Electrical connection*: 230V | 3-phase | 60 Hz.

     *460V power upgrades available upon request. Additional charges may apply.

Options

• Professional Installation
