JET JWJ-8HH-BLK Black 230V Single Phase 8” Helical-Head Jointer with 72”x9” Table JT1-1373

Description

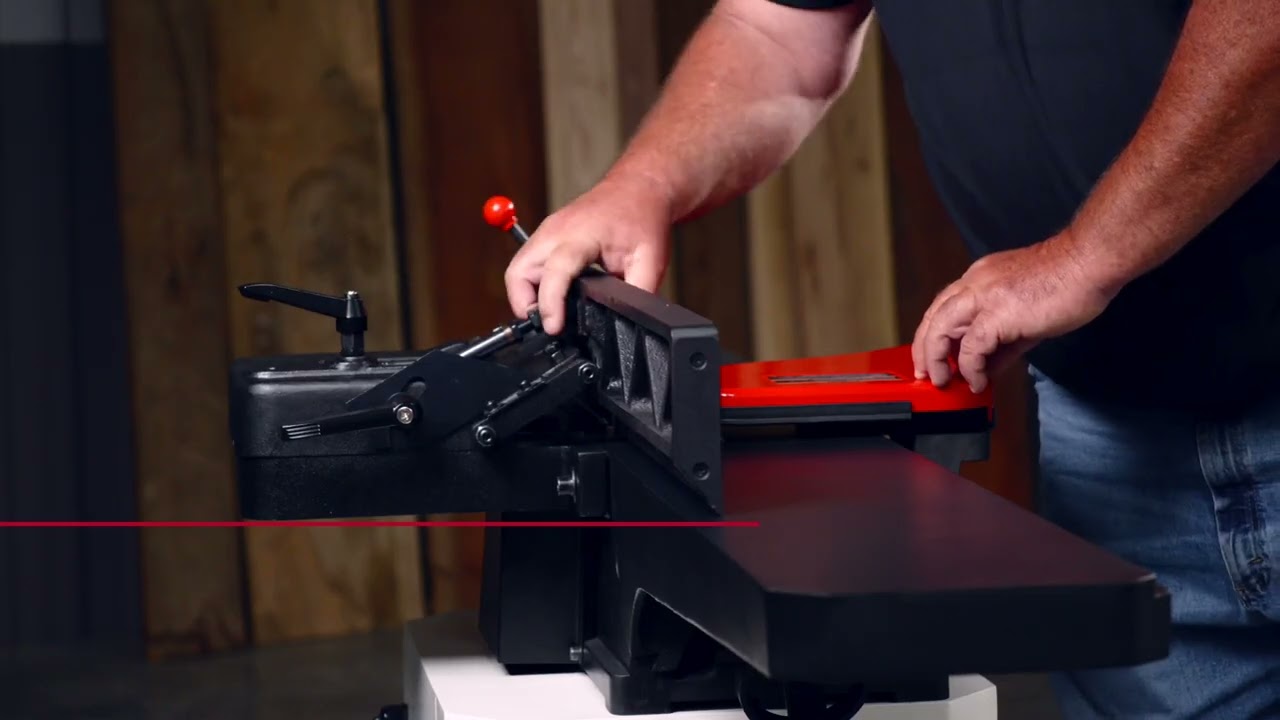

Upgrade your workshop with the JWJ-8HH-BLK JET Black 8” Helical Head Jointer.

This premium jointer features a cast-iron table with JET Black Performance Coating for unmatched durability, enhanced visibility, and friction-free workpiece movement – no waxing or polishing needed.

Its helical insert cutterhead with 36 carbide inserts delivers exceptionally smooth and precise cuts, powered by a quiet 2HP motor that tackles even the toughest jointing tasks. Enjoy quick and accurate infeed table adjustments with the easy-to-use lever and achieve flawless angled cuts with the two-way tilting fence and positive stops at 45° and 90°.

Features

• JET Black Performance Coating: cast iron table with advanced coating offers corrosion resistance and reduced friction, eliminating maintenance like waxing or polishing
• Efficient Dust Collection: built-in 4” dust port connects to your system for effective dust and chip disposal
• Safe Operation: base-mounted On/Off switch ensures easy and safe accessibility
• Precise Fence Adjustments: two-way tilting fence with positive stops at 45° and 90° for accurate angled cuts
• Helical Head Cutter: features 4 rows of 36 four-sided carbide inserts for smooth, precise cuts
• Accurate Infeed Table Adjustment: height adjustment lever allows for quick and precise modifications
• Easy Outfeed Table Adjustment: handwheel with folding handle for convenient height adjustments

Specifications

• Type of cutterhead: Helical Head
• Cutterhead diameter: 2-15/16”
• Max cutting depth: 1/8”
• Cutterhead speed: 5,500 rpm
• Cutting capacity width: 8”
• Number of knives: 36
• Helical knife size: 15mm x 15mm x 2.5mm
• Dust collection min CFM required: 400 CFM
• Dust port outside diameter: 4”
• Fence positive stops: 45°L, 90°, 45°R
• Fence size: 40½” x 5”
• Fence tilt: 45°L, 90°, 135°
• Infeed table length: 34-11/16”
• Outfeed table length: 34-11/16”
• Table height from floor: 33”
• Table size: 72” x 9”
• Motor (TEFC): 230V / Single Phase / 2HP / 60Hz / 9Amp
• Net weight: 405 lbs
• Gross weight: 472 lbs
• Machine dims: 71” x 26” x 45¼”

Optional Add-Ons

• Universal Mobile Base (JT9-708118)
• Shelix Head Inserts for Helical Planers (PM9-1791212)
