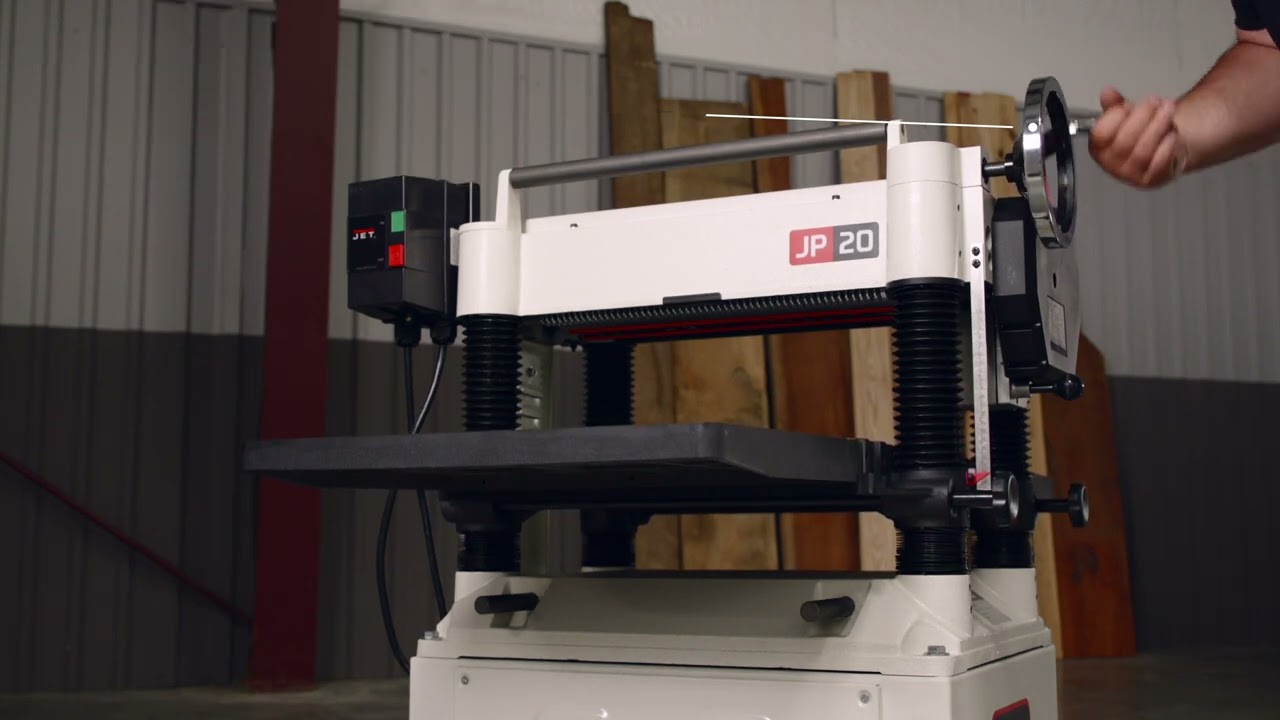

JET JPW-208HH-BLK Black 230V Single Phase 20” Helical Cutterhead Planer with 25¾”x20” Table JT1-1374

Description

Transform rough lumber into perfectly smooth boards with the JPW-208HH-BLK JET Black 20” Helical Head Planer. Designed for precision and ease, this planer features a 20” planing width and a JET Black performance-coated cast iron table that enhances visibility, reduces friction, and eliminates the need for waxing or polishing. The innovative two-speed gearbox with an automatic chain tensioner offers effortless, accurate feed rate adjustments. Powered by a robust 5HP induction motor, it pairs seamlessly with the helical insert cutterhead equipped with 68 staggered carbide knives for an exceptional finish and quieter operation. Elevate your woodworking with the unmatched performance and durability of this essential tool.

Features

• Jet Black Performance Coating: premium cast iron coating resists rust, reduces friction for smoother operation, and ensures a maintenance-free experience by avoiding waxing and polishing
• Precise Height Adjustments: 1/16” increment height scale allows for exact adjustments, ensuring fine and accurate cuts
• Integrated Cast Iron Tables: includes JET Black cast iron infeed and outfeed tables for enhanced stability and support
• Quick and Accurate Adjustments: large handwheel with positive gear drive enables fast and precise table adjustments
• Reliable Magnetic Controls: magnetic controls ensure long-lasting durability and consistent performance
• Solid Support: one-piece welded steel base provides robust support and stability for consistent results
• Efficient Table Movement: positive gear drive facilitates rapid and accurate table adjustments

Specifications

• Cutterhead diameter: 3-7/32”
• Table size: 25¾” x 20”
• Cutterhead speed: 5000 rpm
• Dust collection min CFM required: 400 CFM
• Dust port outside diameter: 5”
• Feed rate: 24 & 31 FPM
• Number of knives: 68
• Knife Size: 15mm x 15mm x 2.5mm
• Max full width depth of cut: 3/32”
• Max planing thickness: 8”
• Max planing width: 20”
• Min planing length: 6¾”
• Motor (TEFC): 230V / Single Phase / 5HP / 60Hz / 20Amp
• Type of cutterhead: Helical Head
• Net weight: 640 lbs
• Gross weight: 765 lbs
• Machine Dims: 26” x 36-5/8” x 41-3/8”

Optional Add-Ons

• Universal Mobile Base (JT9-708119)
• Digital Readout for 20” Planers (JT9-708520)
• Adjustable Roller Stand 12.5” (JT9-709209)
• Shelix Head Inserts for Helical Planers (PM9-1791212)
