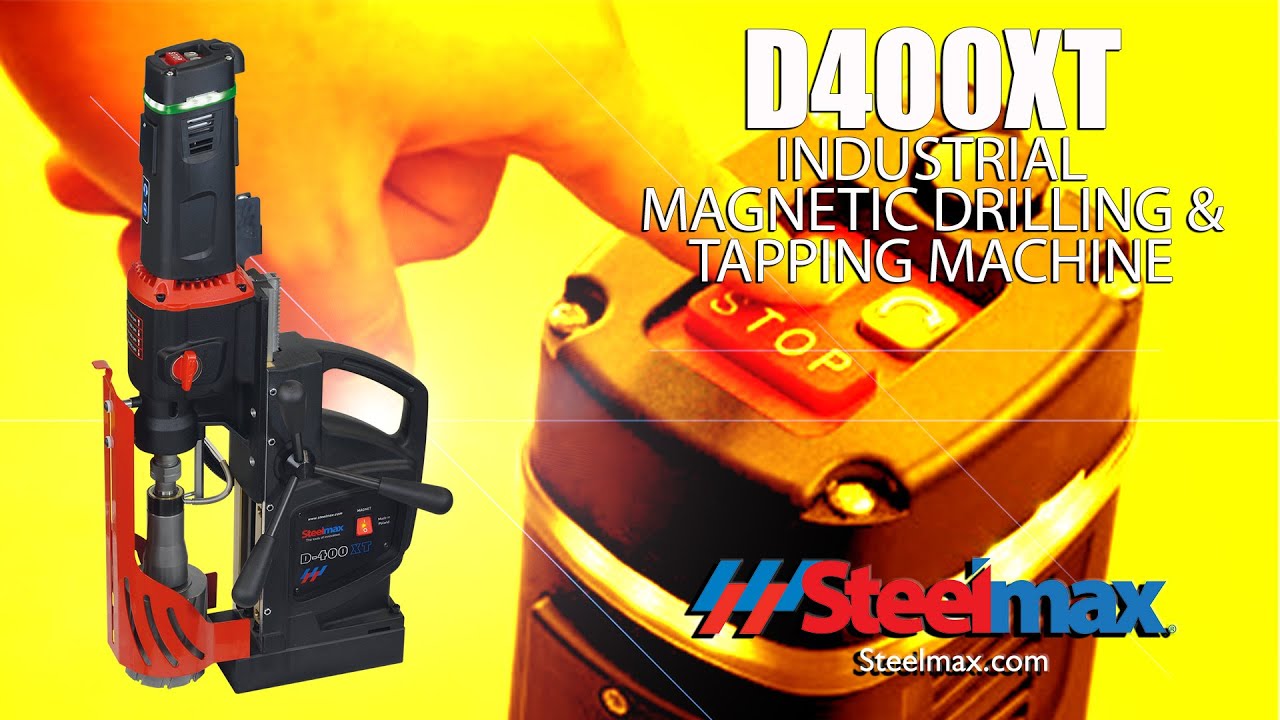

Steelmax 115V Single Phase Industrial Variable Speed Magnetic Drilling Machine with Swivel Base SM-D-400-XTS

Description

The D400XTS magnetic drilling machine is suitable for numerous industrial hole making and tapping applications.

The D400XTS has a swivel base which makes it much easier to align the pilot pin or twist drill for accurate drilling to avoid off-center holes, especially when used upside down or sideways. Powerful 2300 W, variable-speed motor enables cutting capacity up to 4¾” and drilling capacity up to 1¼”. Forward and reverse functions allows tapping of pre-drilled holes up to 1¼” (M30) by using the quick-change tapping system from Steelmax.

4-speed gear and continuous speed adjustment help to set the optimal speed depending on size of diameter, material grade and tool in use. The intelligent speed control system maintains constant speed regardless of the changing load and increases tool life. Innovative 360-degree visual monitoring system facilitates machine operation and increases work safety.

Features

• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes
• Innovative swivel base enables local movement of machine for precise hole positioning
• Most powerful motor in its class (among MT3 drills)
• Overload & Overheat protection
• 4-speed gear with continuous speed adjustment
• Intelligent speed control system maintains stable speed regardless of load changes
• Tapping of through and blind holes with intelligent load control
• Drilling with both TCT & HSS cutters and twist drill bits from small through large diameters
• Full electronic motor control
• Electronic clutch and speed control
• Rigid design extends tool life
• Tilt sensor (gyroscopic) stops motor in case of machine break away
• Innovative smart magnet with reduced weight
• Intuitive control panel at top of the drill
• Large coolant reservoir
• Swivel Base: Adjustment range-shift +10mm / -5mm turn ±15°

Specifications

• Motor Speeds (under load)
  • Gear 1: 75-110 rpm
  • Gear 2: 135-200 rpm
  • Gear 3: 220-320 rpm
  • Gear 4: 390-570 rpm
• Motor Power: 2300 W
• Electrical Requirements: 115V / Single Phase / 50-60 Hz
• Max Hole Size – Annular Cutter: 4¾”
• Max Drilling Capacity: 1¼”
• Max Tap Size: 1¼”
• Max Depth of Cut: 4”
• Stroke: 9”
• Magnetic Clamping Force
  • Surface with the thickness of 25mm and roughness Ra=1.25: 4045 lbs
• Magnet Base Dimensions: 4.3” x 8.7” x 2
• Min Workplace Thickness: 3/8”
• Spindle: MT3
• Tool Holder: ¾” Weldon
• Weight: 62 lbs
