Steelmax 115V Single-Phase Heavy-Duty Variable Speed Magnetic Tapping & Drilling Machine SM-D-500-XT
| Manufacturer Part: | EMT ID: |
|
SM-D-500-XT
|
19054
|
- Motor Power: 2300 W
- Max Hole Size – Annular Cutter: 6”
- Max Drilling Capacity: 1-5/8”
- Max Depth of Cut: 4”
Description

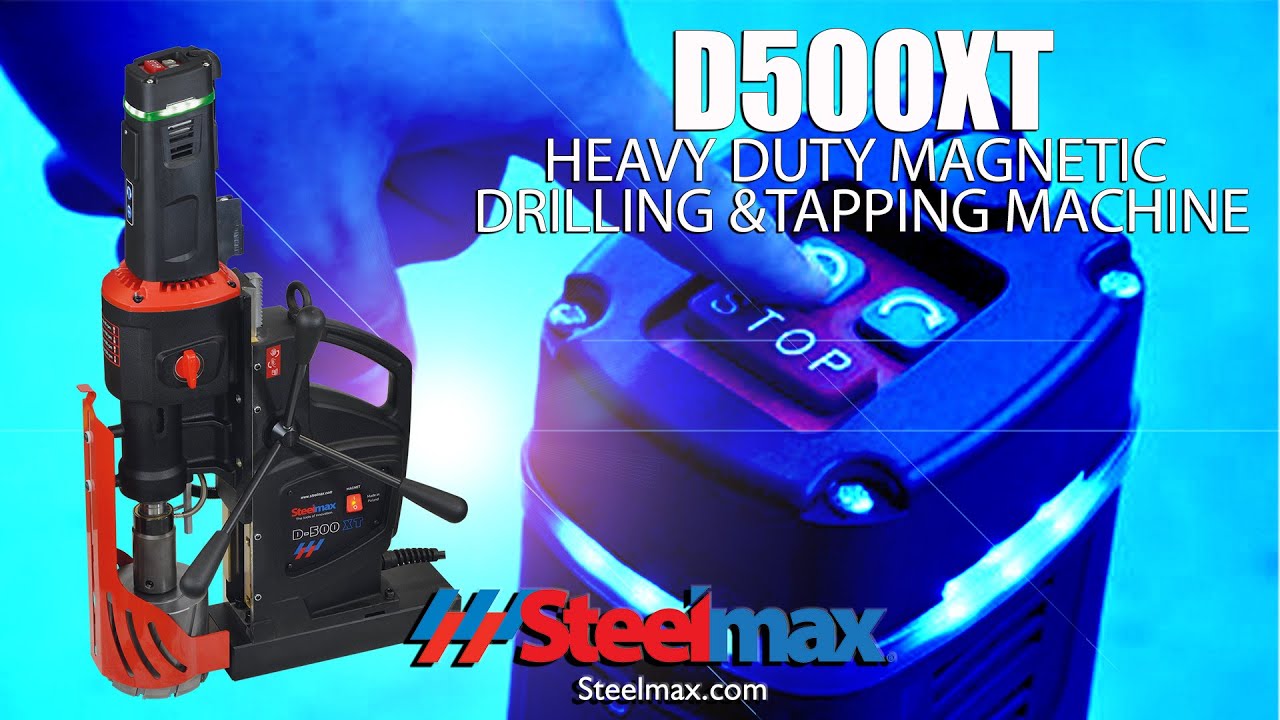

POWERFUL HEAVY DUTY MAGNETIC DRILLING MACHINE
The D500XT magnetic drill is suitable for many heavy-duty hole making and tapping applications. Powerful 2300 W, variable-speed motor enables cutting capacity up to 6” and drilling capacity up to 1-5/8”. Forward and reverse functions allow tapping of pre-drilled holes up to 1-5/8” (M42) by using the quick change tapping system by Steelmax.
4-speed gear and continuous speed adjustment help to set the optimal speed depending on diameter, material grade and tool in use. The intelligent speed control system maintains constant speed regardless of the changing load and increases tool life. The innovative 360-degree visual monitoring system facilitates machine operation and increases work safety.
Features
- 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information, e.g. worn brushes
- Very powerful 2300 W motor
- Overload & Overheat protection
- 4-speed gear with continuous speed adjustment
- Intelligent speed control system maintains stable speed regardless of load changes
- Tapping of through and blind holes with intelligent load control
- Drilling with both TCT & HSS cutters and twist drill bits from small up to large diameters
- Full electronic motor control
- Electronic clutch (faster than mechanical)
- Rigid design extends tool life
- Tilt sensor (gyroscopic) stops motor in case of machine break away
- Innovative smart magnet with reduced weight
- Intuitive control panel at top of the drill
- Large coolant reservoir
Specifications
- Motor Speeds (under load)
- Gear 1: 58-85 rpm
- Gear 2: 100-150 rpm
- Gear 3: 200-300 rpm
- Gear 4: 350-520 rpm
- Motor Power: 2300 W
- Electrical Requirements: 115V / Single Phase / 50-60 Hz
- Max Hole Size – Annular Cutter: 6”
- Max Drilling Capacity: 1-5/8”
- Max Tap Size: 1-5/8” (M42)
- Max Depth of Cut: 4”
- Stroke: 10”
- Magnetic Clamping Force
- Surface with the thickness of 25mm and roughness Ra=1.25: 5622 lbs
- Magnet Base Dimensions: 4-1/8” x 12-3/8” x 2”
- Min Workplace Thickness: 3/8”
- Spindle: MT4
- Tool Holder: ¾” or 1¼” Weldon
- Weight: 668 lbs
| Manufacturer | |
| SKU |
SM-D-500-XT
|
| UPC |
848118005551
|
| Shipping Method |
LTL Freight
|
| Weight |
125 lb
|
| Dimensions |
32 × 32 × 13 in
|
| Country of Origin |
Poland
|
