Steelmax Rail Runner Single Phase 100W Track Welding Carriage without Oscillation SM-WC-RR-WO

Description

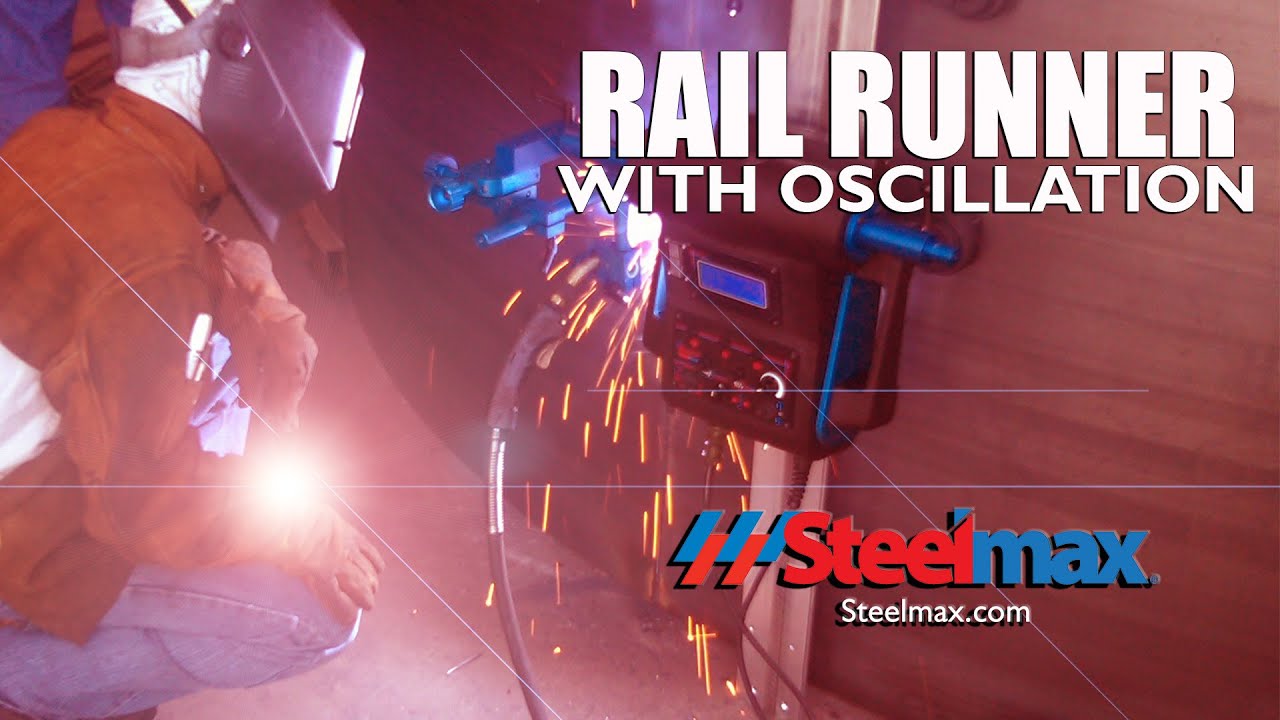

The Steelmax Rail Runner is a digitally controlled travel carriage designed for the mechanization of welding and thermal cutting processes. Featuring a positive rack and pinion drive system with electronic speed control, the Rail Runner can produce consistent, high quality welds and cuts in the flat, vertical or horizontal position. A multi-function LED display permits precise setting of process parameters making set up and repetition of predefined weld procedures quick and simple.

The Rail Runner is available in two versions: (i) the standard version with the integrated linear oscillator; and (ii) a basic version without integrated linear oscillation. As a result, the Rail Runner family of track mounted welding carriages economically meets a broad array of welding and cutting applications.

Features

• Durable aluminum cast housing
• Automatic arc ignition integrated with travel switch
• Precise cross slide torch adjustment
• Closed loop position control with encoder feedback
• LED display with numeric representation permits presetting of all motion parameters including weave width, weave speed, side wall dwells, and tractor travel speed
• Integrated linear oscillator for weave welding and overlay
• Electronic torch steering during weaving operation
• Semi-Flexible Guide Rail will adhere curved surfaces with minimum radius of 16’

Included Equipment

• Welding carriage
• Metal box
• Torch holder
• Cable holder
• Power cord
• Arc ignition cable of 6.5m
• 3mm hex wrench
• 4mm hex wrench
• Operator’s manual

Specifications

• Power Supply (Dual Voltage): 115-230V / Single Phase / 50-60Hz
• Power: 100 W / 0.13 HP
• Welding Positions
  • Horizontal: PA (flat), PB (horizontal vertical), PC (horizontal)
  • Vertical: PF (vertical up), PG (vertical down)
• Min track way curvature radius: 16’ (5m)
• Torch Type: MIG/MAG
• Torch diameter: 5/8” – 1”
• Min welding material thickness: 3/16”
• Pulling Force
  • Horizontal work: 77 lbs (350N)
  • Vertical work: 33 lbs (150N)
• Torch adjustment: 1-3/8” up-down, left-right
• Horizontal speed: 0 – 47-3/8” /min
• Vertical speed: 0 – 43-5/16” /min
• Oscillation type: linear
• Oscillation path: trapezoid, triangle, straight line
• Oscillator arm stroke: 0-4”
• Oscillation width: 0-1.9”
• Oscillation speed: 0-59”/min
• Oscillation dwells: 0-5 sec
• Max oscillator pulling force: 100N
• Max permitted ambient temperature: 122°F
• Max permitted ambient humidity: 85%
• Weight: 44 lbs

Optional Accessories

• Track segment of 6.5ft
• Magnetic base unit
• Mounting bracket for magnet
