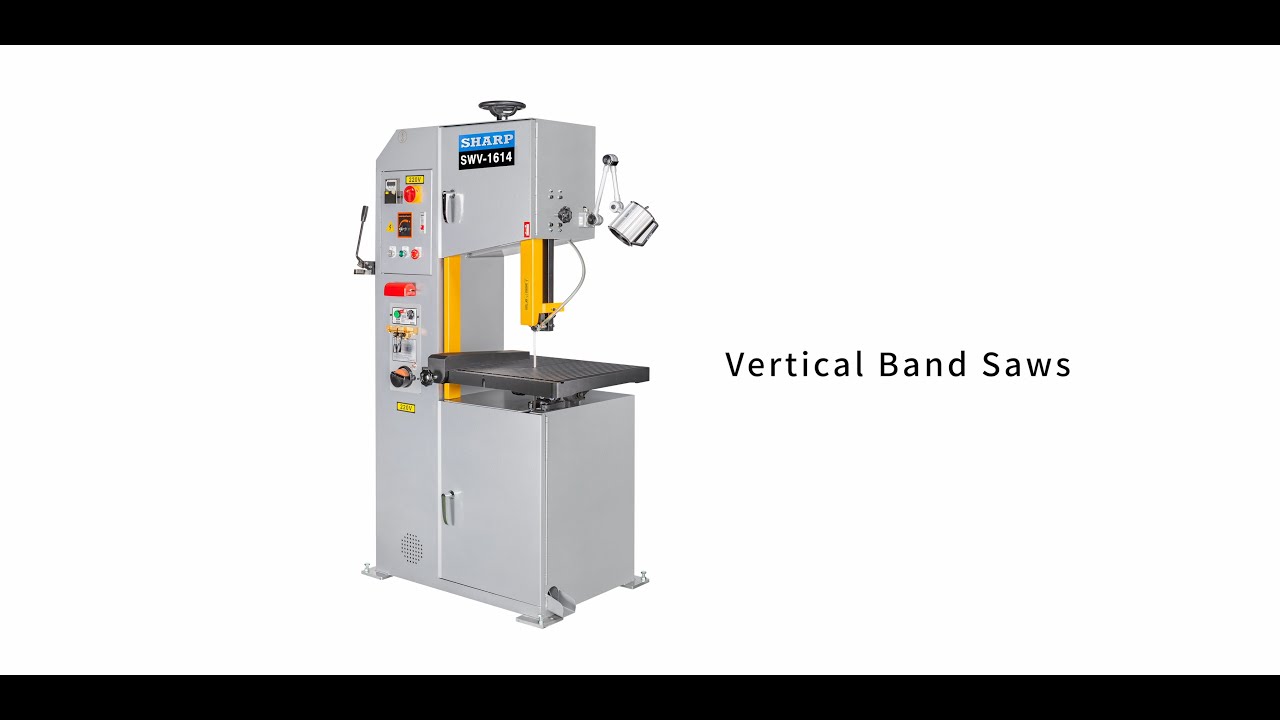

Sharp Industries 220V Three Phase 15.7” Vertical Contour Band Saw SWV-1614

Description

Sharp’s multi-function design along with easy operating system makes their vertical contour bandsaw suitable for cutting a wide range of materials. The superior flexibility allows users to accurately cut contour shapes, straight cuts, and even make internal cuts on one self-contained machine.

The Sharp Vertical Bandsaw is one of the most versatile machines on the market today. It’s multi-purpose design, inverter drive, and heavily constructed base allows the machine to cut smoothly even while operating at a high-speed range: 98-1,510 ft/min (fpm).

With just the turn of a knob the band speed is digitally displayed and is easily adjusted for the material being cut from 98.4 to 1,510 ft/min. This allows the machine to cut effectively and accurately on a very broad range of materials.

One of the biggest advantages this versatile machine provides is allowing the operator to make straight, contour, or internal cuts on metal, wood, plastic, etc.

Features

• Infinite Variable Blade Speed: the inverter drive with the digitally displayed band speed range makes the machine ideal for cutting a wide variety of materials
• LED Industrial Work Light: the work light allows the operator to easily see exactly where the bandsaw blade is cutting
• The One Piece Construction: increases the rigidity of the machine, reducing vibration in the sawing process for increased productivity and long blade life
• Manual Band Tension & Indicator: this allows for the proper tension of the bandsaw blade based on the width of the blade being used
• Post Elevation Retention Knob: this allows for the proper positioning of the upper saw guide for more accurate cutting and longer blade life
• Cast Iron Table: provides for a very rigid working surface for the parts to be cut
• Rip Fence: make cutting of straight cuts of any length very simple for the operator
• Chip Blower: make it easy to see the lines during the cutting process
• Blade Shear: allows the operator to cut the blade to the appropriate length at the machine before welding greatly enhancing convenience
• Blade Welder: compared with the general design of copper material, Sharp uses the gold-plated welding port that are less likely to oxidize and affect the welding process. This standard feature allows the operator to thread the saw blade through a hole in the part, re-weld the sawblade at the machine, and perform internal cutting. This process increases productivity and saves money.
• Built-in Blade Grinder: allows the operator to grind off the slag created in the blade welding process at the saw
• Power Button: conveniently located on the front of the machine for easy operation
• Blade Guides & Backup Bearing: Tungsten carbide tipped for extended lift and accuracy of cut
• Brush for Cleaning Drive Wheel: eliminates chip interference in the cutting process

Specifications

• Max Cutting Capacity, Throat: 15.7”
• Max Cutting Capacity, Height: 13.8”
• Wheel Diameter: 13.8”
• Inclination, Front/Back: 10°
• Inclination, Left/Right: 15°
• Table Size: 23.6” x 19.7”
• Blade Length: 136.2” x 0.75”
• Blade Speed: 98-1510 fpm
• Electrical Requirements: 220V Three Phase 1HP 0.75kW
• Machine Dims: 43.3” x 34.6” x 74.4”
• Approx Weight: 550 lbs

Optional Add-Ons

• Transformer for 440V Three Phase power (please contact a sales rep for more info)
