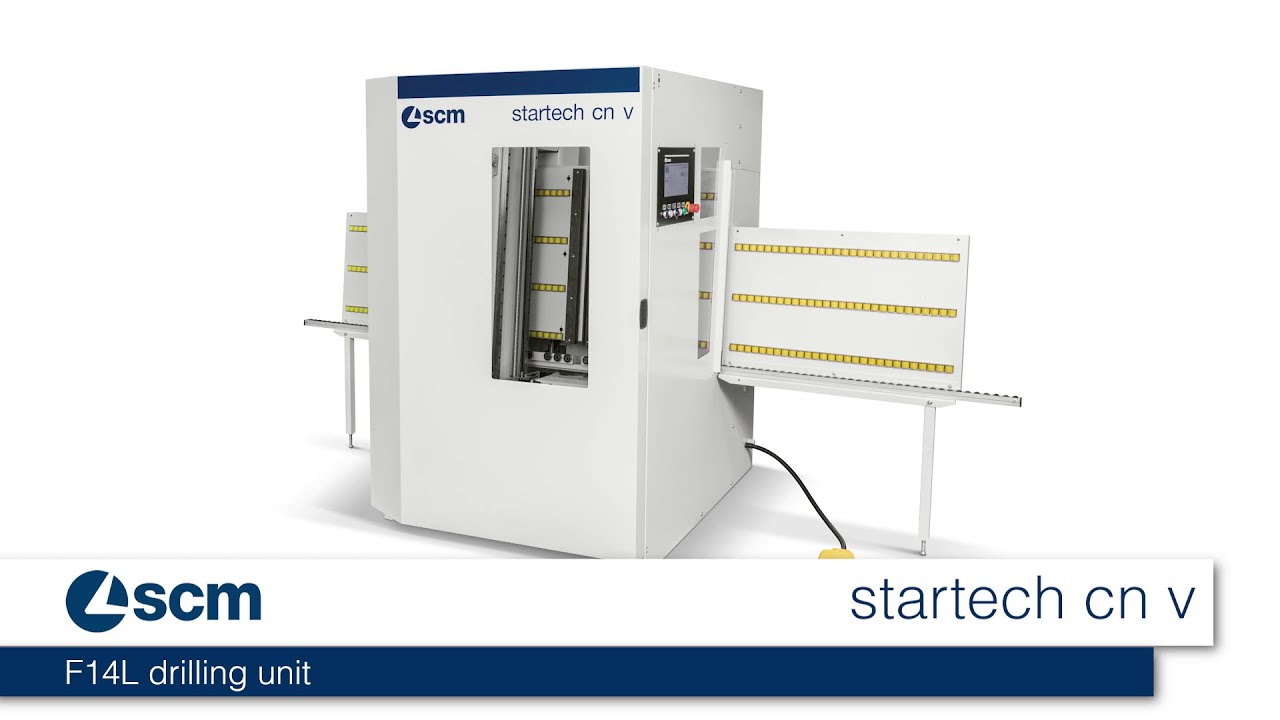

SCM Group 220V Three Phase Multi-Spindle Vertical CNC Boring and Grooving Machine Startech CN V

Features

• Operating group: drilling head with 8 vertical/6 horizontal independent spindles and integrated blade
• Effective: the operating head above the panel allows a very precise processing and a reference always certain
• Precise: work piece stability and high working quality guaranteed by the mobile clamp with floating opening
• Versatile: thanks to the 8 vertical spindles, the 6 horizontal spindles, and the blade in X, elements of finished furniture can be produced without having to reposition the bits and with no operator’s intervention for the work table set up and machine when varying dimensions and panels
• Ease of use with the 10” control with touch-screen function. Possibility to import drilling programs from SCM Maestro software
• CNC drilling machine with fixed work table and mobile workpiece. It is capable to perform the following operations:
  • Vertical drilling on the panel surface
  • Horizontal drilling on all 4 sides
  • Grooving along “X” axis
• Base and working table: structure made of tubular welded steel to create a large support surface on which the work tables are fixed. Electrical cabinet integrated in the base. Work table made of phenolic material with grooves to allow the through drilling
• Mobile upright: the gantry structure is made of tubular welded steel which supports the main operating group
• Operating group: boring head with 8 vertical/6 horizontal spindles and integrated blade
• Movement of workpiece and operating group: a clamp, directly controlled from the NC, locks the panel to be processed and positions it in sequence under the operating head to execute the requested machining. The operating head moves along “X”, “Y” and “Z” axes on prismatic linear guides with recirculating ball bearings and transmission through recirculating ball screws. Group positioning and machine motion is carried out by means of direct current motors
• The drilling unit is equipped with the SCM patented, roto-axial technology Ro.Ax:
  • Improving cutting quality, thanks to the increased rigidity of the spindle (enlarged diameter of the rotating shaft and direct connection, no mechanical interfaces involved, between drilling bit and the shaft itself thanks to Weldon attachment type)
  • Increasing production rate thanks to a rotation speed of 8000 rpm, which allows a higher penetration speed into the material
  • Reducing maintenance interventions, up to 1000 hours with lubrication mechanical organs on the unit
• CNC control: 10” touchscreen LCD color display
• Programming
  • Direct programming from NC display installed on the machine
  • Import/export of drilling programs via USB key (Maestro or other CAD/CAM software – please contact SCM to verify compatibility)
  • Automatic optimization of drilling cycles
  • Possibility of panel origin change

Standard Equipment

• Cooling fans for electric cabinet
• Sensor for panel calibration
• Automatic lubrication
• Internal machine lighting
• (1) blade for grooving unit
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Axes
  • Min/Max panel length (X): 11.81” / 118.06”
  • Min/Max panel length (Y): 3.56” / 35.37”
  • Min/Max panel length (Z): 0.37” / 1.94”
  • Max X-Y axes speed: 66 fpm
• Drilling Head
  • Motor power: 3HP – 2.2kW
  • Vertical spindles: 8 (5X – 2Y – 1 shared between axes) / 4R-4L
  • Horizontal spindles: 6 (2+2X / 1+1Y)
  • Spindles rotating speed: 4,460 rpm
  • Grooving blade axis: X
  • Max blade diameter: 4.87”
  • Max blade thickness: 0.19”
  • Blade arbor: 0.81”
  • Blade rotating speed: 5,700 rpm
• Nominal extraction air consumption: 476 CFM
• Exhaust air speed: 66 ft/s
• Exhaust outlet diameter: 4.75”
• Compressed air consumption: 90 NI/min
• Pneumatic system operating pressure: 6.5 bar
• Electrical Requirements: 220V Three Phase 60Hz 15A
• Machine Dims: 84” x 60” x 98”
• Approx Weight: 2,130 lbs

Optional Add-Ons

• “Maestro CNC” programming software
• Wireless barcode reader
• Keyboard type: Qwerty

**This machine requires a mandatory installation and training from the manufacturer. This comes as an additional charge that is NOT included in the website price. This additional charge includes the installation and full training on how to operate and maintain the machine. Please contact one of our sales representatives for more details**
