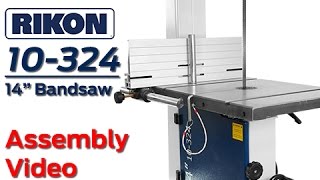

Rikon Tools 14” 1.5HP Vertical Bandsaw with Tool-Less Guides 10-324TG

Description

The 14” Bandsaw 10-324TG is RIKON’s most popular model due to its many professional features – including tool-less blade guides, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and base stand with storage shelf. Its dual voltage, 1-1/2HP motor provides ample power for most every work encountered. Pre-lubricated, sealed thrust and side ball bearing guides give smooth blade support during difficult cuts. Includes 6″ tall rip fence with re-saw bar. Wired for use with 3-wire 115V receptacles.

Features

• Rugged welded steel column and frame
• Balanced cast aluminum drive wheels
• Resaw Capacity 13″
• Dual blade speed ranges – 1445 / 2950 FPM
• Machined cast iron table with miter gauge ‘T’ slots
• Quick-release blade tension system
• Rack and Pinion upper guide adjustments
• Dependable 1.50HP 60Hz motor

Specifications

• Motor
  • Horsepower: 1-1/2 HP TEFC
  • Amps: 14/7
  • Volts: 115/230V, 60Hz
• Cutting Capacity
  • Height: 13”
  • Width: 13-5/8”
• Blade (Includes 111” x 5/8”, 4 TPI, Reg.)
  • Width: 3/16” – 3/4”
  • Length: 111”
  • Blade Speed: 1,445/2,950 FT/MIN
• Table
  • Size: 21-1/2” x 15-3/4”
  • Left Tilt: -5°
  • Right Tilt: 45°
  • Miter Gauge “T” Slot: (2) 3/4” x 3/8”
  • Height to Floor: 39-1/2”
• Overall
  • Height: 74-1/2”
  • Width: 30”
  • Depth: 25”
  • Base Size: 21-5/8” x 14-3/4”
  • Dust Port: 1@4”
  • Net Weight: 219 lbs.
  • Shipping Weight: 231 lbs.
  • Shipping Carton: 54” x 17-1/2” x 23-5/8”
  • Warranty: 5 Years
