Revolution Machine Tools 3HP Automatic Pivoting Single Miter Band Saw S-SMART PM 13-15

Description

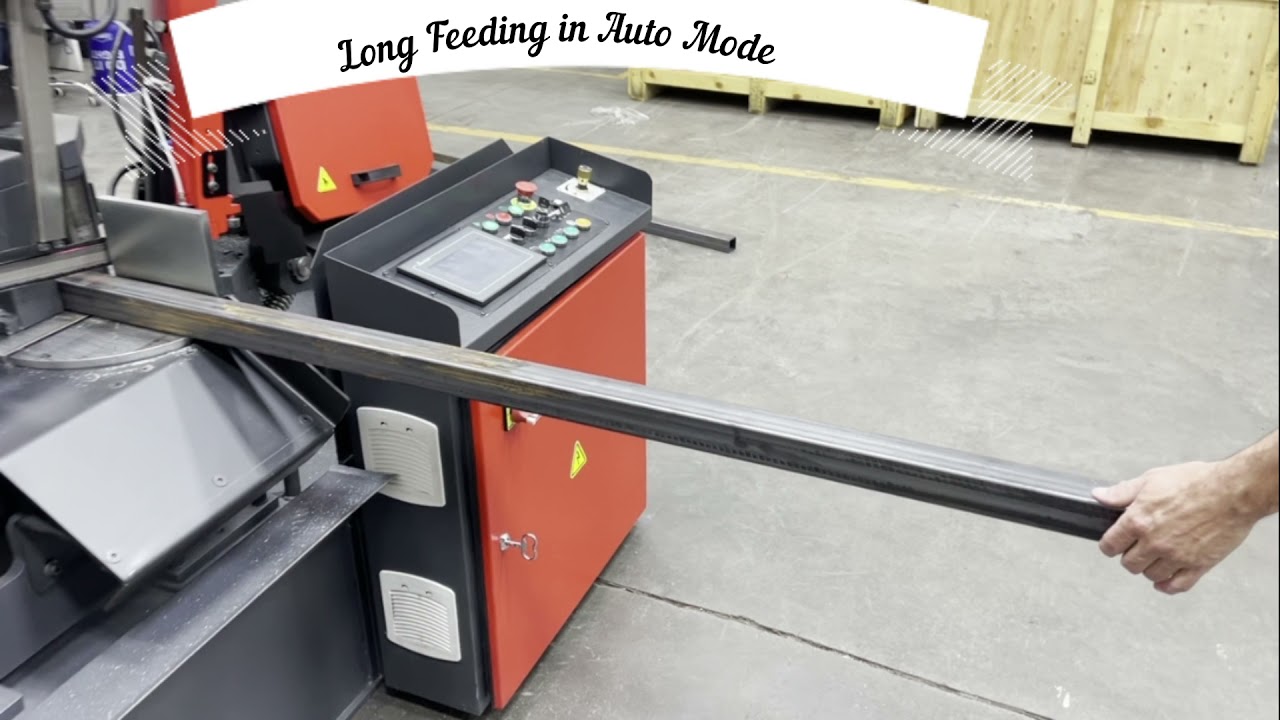

RMT's S-SMART PM 13-15 is a fully automatic bandsaw with hinged PLC and HMI hardware, independent of the stop point. Their bandsaw has the ability to cut solid and pipe type materials straight and angled and can cut in desired quantities and lengths. Thanks to the hydraulic closing clamps, this machine has a material feeding process with precision.

Features

• Control Panel NC
• Blade brush
• Hydraulic vice
• Hydraulic feeding vice
• Security switch
• Height adjustment switch
• Siti heavy duty gearbox
• Infinite variable speed inverter
• Sensitive pressure control
• Hydromechanical blade tension
• Coolant pump
• Anti-vibration cylinder
• Double action feeding vice

Specifications

• Capacity at 0°
  • Round: 13” (350 mm)
  • Flat (H x W): 13” x 15” (350 x 400 mm)
  • Square: 13” (350 mm)
• Capacity at 30°
  • Round: 13” (350 mm)
  • Flat (H x W): 13” x 15” (350 x 400 mm)
  • Square: 13” (350 mm)
• Capacity at 45°
  • Round: 13” (320 mm)
  • Flat (H x W): 11.4” x 11.8” (290 x 300 mm)
  • Square: 11.4” (290 mm)
• Cutting Speeds: 65 – 328 ft/min (20 – 100 m/min)
• Band Dims.: 164” x 1.34” (4160 x 34 mm)
• Main Motor: 3 HP (2.2 kW)
• Hydraulic Motor: 0.5 HP (0.37 kW)
• Coolant Motor: 0.2 HP (0.12 kW)
• Weight: 2,315 lbs. (1,050 kg)
• Machine Dims. (L x W x H): 97” x 36” x 80” (2450 mm x 920 mm x 2020 mm)

Options

• Hydraulic blade tension
• Hydraulic blade clamping
• Dropsa air/oil clean lubrication
• Micro mist cooling
• 10 ft roller table
• 10 ft motorized roller table
