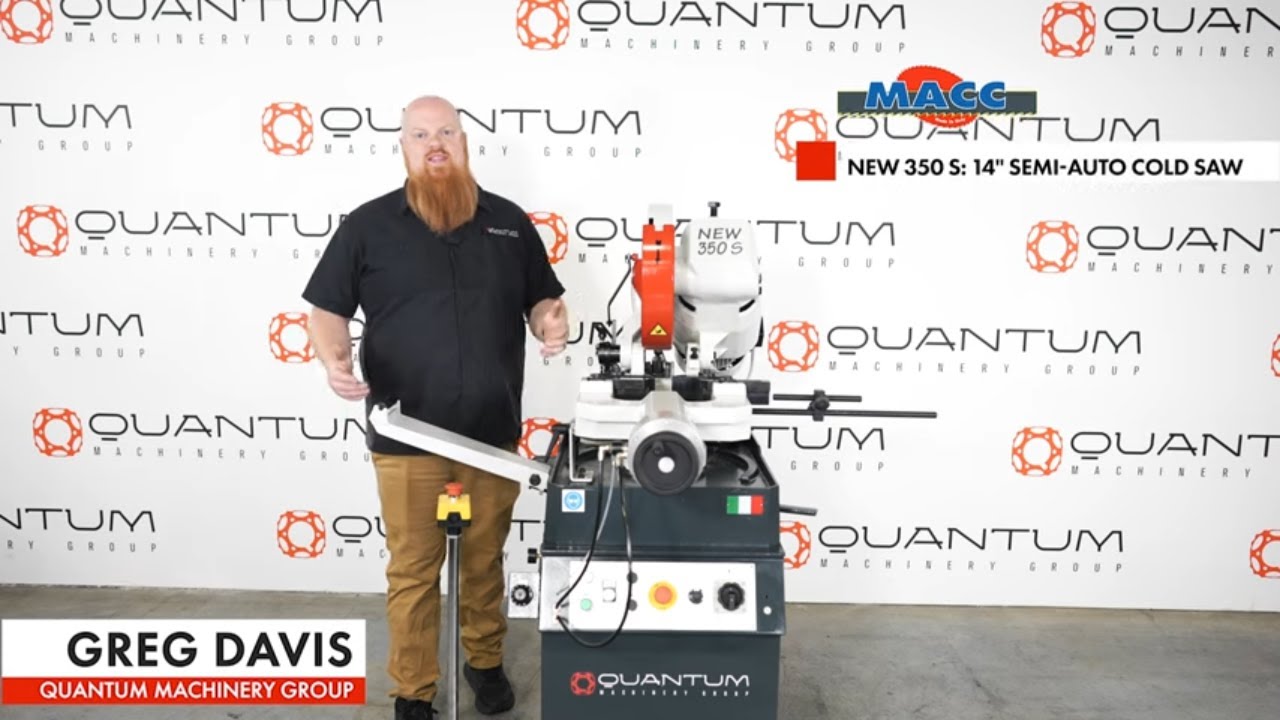

Quantum Machinery MACC 14” 480V Three Phase Semi-Automatic Pivot-Style Cold Saw 350-S

Description

The Quantum MACC New 350 S Semi-Automatic Cold Saw has a movable head that swivels 45 degrees left and 90 degrees right. The reduction unit is in an oil bath with a double hinged pin that has an eccentric bush. The new 350 S Cold Saw is equipped with a dual quick-locking vice and a sliding counter-vice for longitudinal cutting. Has a 0.035 kW power-driven pump for band cooling, along with a coolant filter. This unit is also equipped with a Jet Separation System to keep the blade oiled, has a Bar Support Arm, and a Bar Stop. Manual, service tools, and a steel pedestal come with the machine.

Operation

1. Closing of vice & activation of blade motor
2. Cutting head begins down-stroke
3. Completes cut & head returns to initial position & blade motor stops
4. The vice will then open

Maximum Cutting Capacities

• Round Tube
  • Straight Cut: 4.25”
  • 45° Left/Right Cut: 3.1”
• Square Tube
  • Straight Cut: 4.9”
  • 45° Left/Right Cut: 3.1”
• Solid Round
  • Straight Cut: 2.25”
  • 45° Left/Right Cut: 2.1”
• Rectangular Tube
  • Straight Cut: 3.1”H x 4.6”W
  • 45° Left/Right Cut: 3.1”H x 3.1”W

Features

• Movable cutting head: From 45° Left up to 45° Right
• Saw is equipped with variable speed inverter
• Double-hinged pin with eccentric bush
• Reduction unit in oil bath
• Double quick locking vice
• Coolant filter
• Jet Separation System to keep the blade oiled
• Sliding counter-vice for longitudinal cutting
• 24V low voltage installation withhold-to-run Head Control Knob
• 0.035 kW power-driven pump for band cooling
• Saw Includes: Instruction manual, service tools & 1 HSS 350mm Cold Saw Blade

Specifications

• Blade Size (HSS Blade): 350mm x 2.5mm x 32mm
• Max Vice Opening: 4.7”
• Band cooling pump: 0.035 kW
• Electrical Requirements: 480V / Three Phase / 60Hz
• Machine Dims: 58” x 40” x 48”
• Machine Weight: 618 lbs
