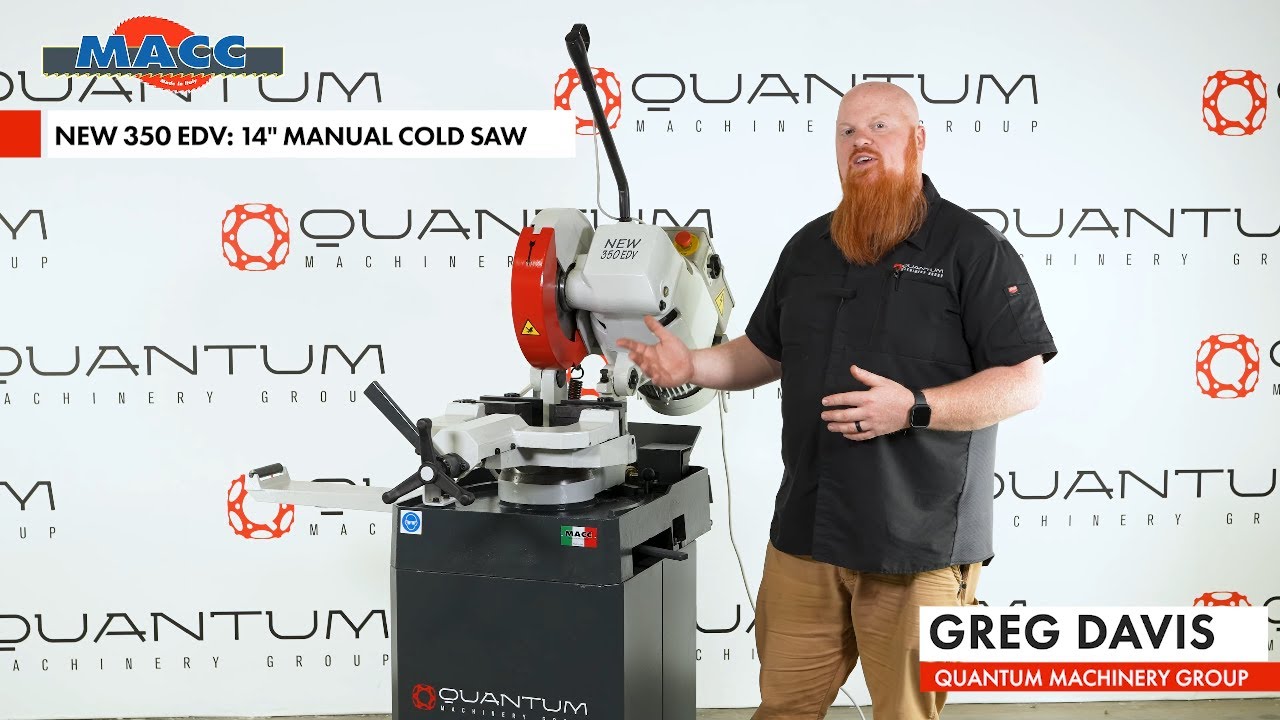

Quantum Machinery 14” 220V Three Phase Manual Pivot-Style Cold Saw 350 EDV

Maximum Cutting Capacities

• Round Tube
  • Straight Cut: 4.3”
  • 45° Left/Right Cut: 3.15”
• Square Tube
  • Straight Cut: 4”
  • 45° Left/Right Cut: 3.15”
• Solid Round
  • Straight Cut: 2.3”
  • 45° Left/Right Cut: 2.15”
• Rectangular Tube
  • Straight Cut: 3.15”H x 4.7”W
  • 45° Left/Right Cut: 3.15”H x 3.15”W

Features

• Moveable cutting head: from 45° left up to 45° right
• Double-hinged pin with eccentric bush
• Reduction unit in oil bath
• Double-quick locking vice
• Coolant filter
• Jet separation system to keep the blade oiled
• Sliding counter-vice for longitudinal cutting
• 24V low voltage installation withhold-to-run head control knob
• 0.09 kW power-driven pump for band cooling
• Includes: the pedestal/stand, bar stop, bar support arm, instruction manual, service tools, & 1 HSS Cold Saw Blade

Specifications

• Blade Size (Bore HSS): 350mm x 2.5mm x 32mm
• Max Vice Opening: 4.7”
• 2 Speeds: 40-80 rpm
• Power-driven Pump: 0.09 kW
• Electrical Requirements: 220V / Three Phase / 60Hz
• Overall Dims: 47” x 40” x 58”
• Machine Weight: 510 lbs

Optional Add-Ons

• Variable Speed Inverter
