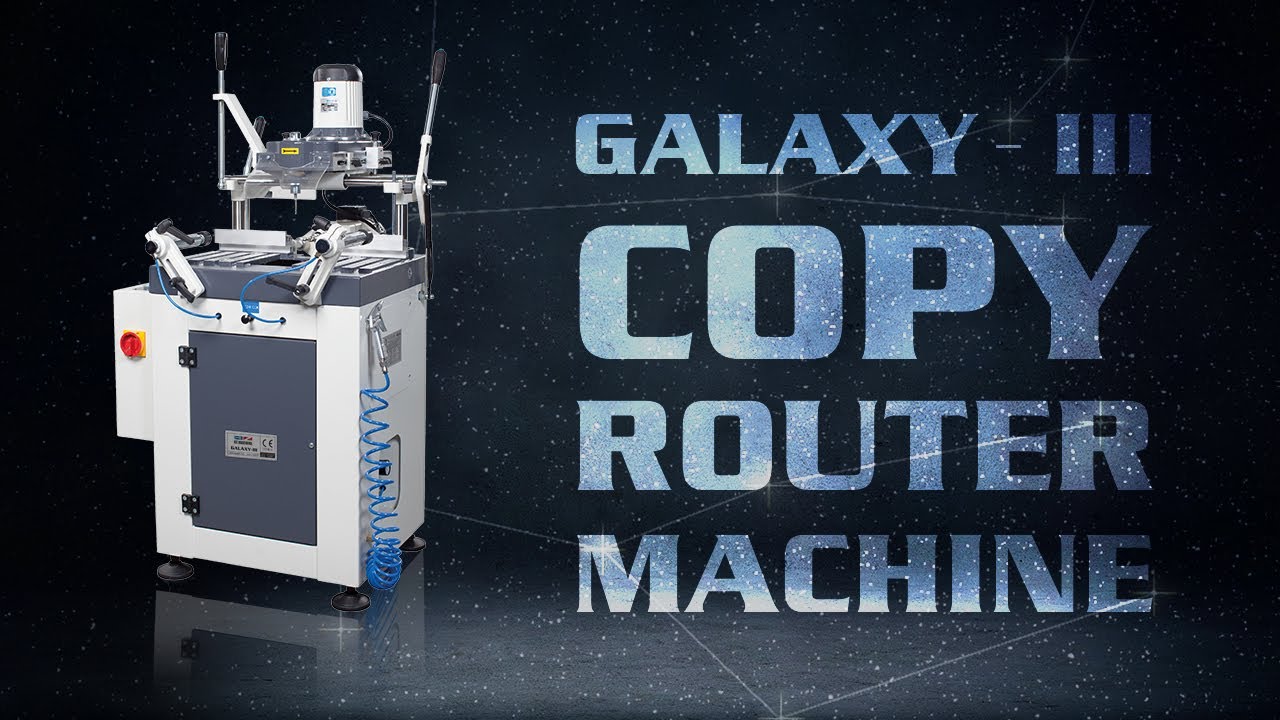

OZ Machine 400V 1.5HP Copy Router Machine with Triple Grip Slot Drilling and Water Discharge GALAXY - III
*Image may display optional items not included with purchase.
You might also be interested in...
| Manufacturer Part: | EMT ID: |
|
GALAXY - III
|
15709
|
- KW: 1.1
- RPM: 3000
- Hz: 50 / 60
- Amp: 6.5 A
Features
- Used for cutting appropriate slots on aluminum and vinyl profiles for mounting locks, grips, hinges, latches, and opening channels.
- Copy assembly matching the process
- Ability to open various channels independently of the copy assembly with profile gauges
- Pneumatic clamps
- Triple grip slot drilling system
- Ability to open water discharge channels with various angles and sizes
Standard Equipment
- 0.2 inch milling cutter (2 pcs)
- Triple Drill Bit Kit
- Profile gauge
Specifications
- HP: 1.5
- KW: 1.1
- RPM: 3000
- Hz: 50 / 60
- Amp: 6.5 A
- Voltage: 400 V
- Air pressure: 6-8 bar
- Air consumption: 8 L / min
- Weight: 335 lbs.
- Dimensions (L x W x H): 33” x 35” x 61”
Options
- Special copy assembly
- Single-phase system
| Manufacturer | |
| SKU |
GALAXY - III
|
| Shipping Method |
LTL Freight
|
| Weight |
401 lb
|
| Dimensions |
38 × 40 × 66 in
|
| Country of Origin |
Turkey
|
| Warranty |
1 Year
|
