Manufacturer Part: EMT ID:
NH5216
598

  • 16 Gauge Mild Steel Capacity
  • 20 Gauge Stainless Steel Capacity
  • 52" Cutting Length
  • 25 Strokes Per Minute
Details below

National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated-pressure relief valve, heavy duty foot switch that allows this unit to return to the top of the stroke when the operator removes his foot from the foot switch. Heavy duty double acting cylinders. Fully enclosed control panel. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator. Steel side frames, all steel cutter heads and tables with solid 4-edge high carbon high chromium blades. Quick adjusting back gauge for direct reading with a positive lock. Standard with table gauges and front arm extensions.

Specifications
Model NH5216
Mild Steel Capacity 16 Gauge
Stainless Steel Capacity 20 Gauge
Strokes Per Minute Approx. 25
Cutting Length 52"
Shipping Weight 1400 lbs
Oil Reservoir Capacity 24 gal
Motor

3 HP, 208V
1800 rpm, 240V
3 PH, 460V



Manufacturer
SKU
NH5216
Shipping Method
LTL Freight
Country of Origin
There are currently no reviews for this product.
Be the first to review this product.

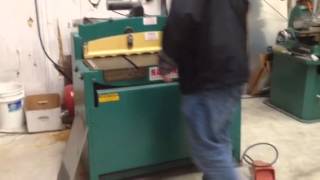

National Hydraulic Shear NH5216
