Minimax 230V Single Phase 16” Tilting Blade Sliding Table Saw SI 400ES-ready

Description

Introducing the SCM Group Minimax SI 400ES – a circular saw with tilting blade with professional performances, for a quality without compromises.

Features

• Sliding carriage: large dimensions sliding carriage with guides secured by riveting
• Cast-iron blade group: cast iron saw unit with a rigid closed loop structure and scoring blade with independent motor
• Mobile Control Panel Ready (NC Rip Fence): the Ready control manages the powered and programmed movement of the parallel fence, increasing productivity and working quality
• DADO set compatible
• Safety/Protections
  • Self-braking motor
  • Overhead blades guard
  • Emergency pushbutton located on the front machine side

Powered Parallel Fence with Electronic Programmer

• Position readout on encorder
• Adjustment by means of recirculating ball screws
• Continuous adjustments by means of pushbuttons or automatic positionings
• Possibility of incremental positionings
• Possibility of fence exclusion

Standard Equipment

• Optimizer/Sequencer App for Tablet – SCM Thundercut: application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems. It is activated using the QR code supplied with the machine
  • Manage your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software (“cpout” file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Prints labels with bar code to identify the various parts, thanks to the Bluetooth connection with compatible label printers
• Ergonomic handwheels for blade unit height and tilt
• Readout of sawblades tilt on the machine front side
• Cast iron saw unit with lifting system by means of “dove-tail” guideways and tilting on high rigidity sliding side trunnions
• Independent powered scoring unit with external setting: scoring unit adjustment – vertical and horizontal adjustments are carried out by user-friendly mechanical levers with precise and smooth movements. These adjustments can be easily operated from the front of the machine. Handwheel with readout of sawblades tilt in front of the machine

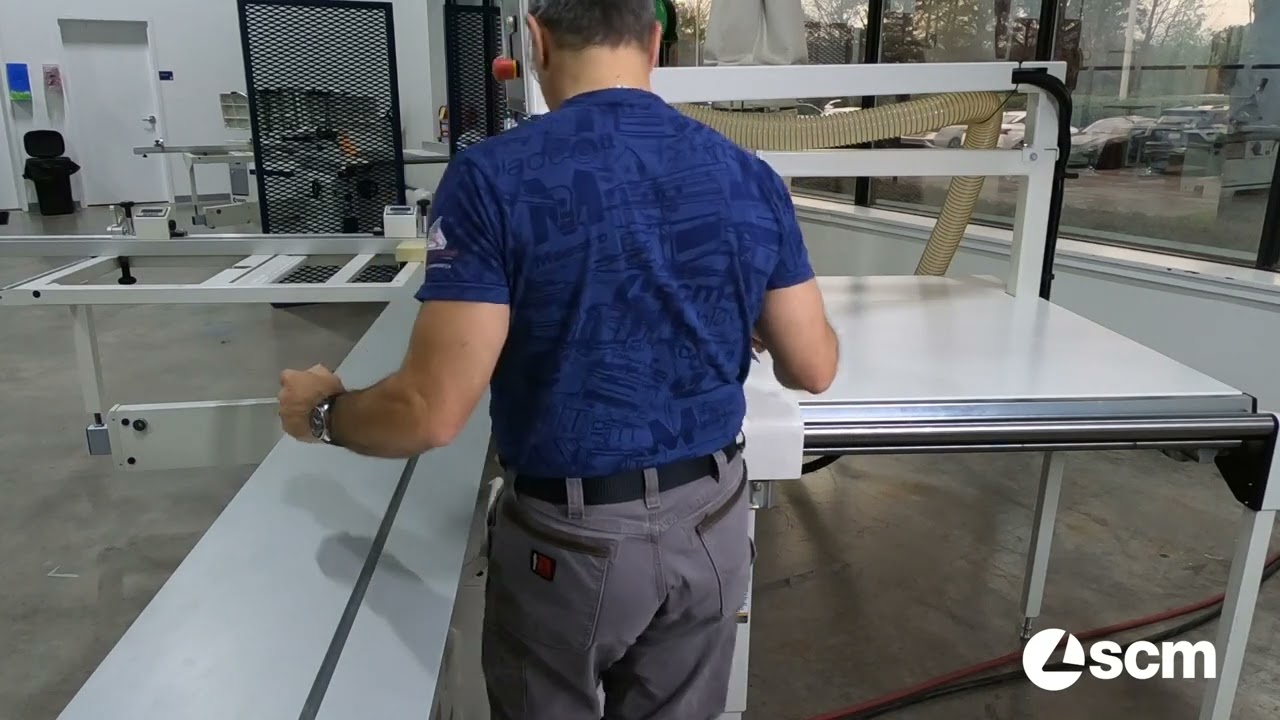

• Extruded anodized aluminum sliding table (360mm x 3200mm): sliding on high precision hardened steel guideways secured by riveting
• Squaring frame (1200mm x 650mm) with swinging arm support and idle roller to facilitate the panel loading/unloading
• Telescopic squaring fence with 2 flip-over stops and metric/imperial rule tilted towards the operator
• Overhead blade protection
• Eccentric clamp
• (1) main blade 400mm
• (1) scoring blade
• Trimming shoe, push stick, and push handle
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Cast iron worktable dims: 37” x 22”
• Main blade motor power: 4.8HP – 3.6kW
• Max saw blade diameter: 15.69”
• Saw blade arbor size: 1”
• Scoring blade motor power: ~ 1HP
• Scoring blade diameter: 4.69”
• Scoring blade arbor size: 0.75”
• Diameters to be used simultaneously: 15.69” x 4.69”
• Main blade speed: 4000 rpm
• Scoring blade speed: 9200 rpm
• Blade tilting: 90° / 45°
• Max cutting height at 90°/45° (w/400mm blade): 5.31” / 3.81”
• Max squaring stroke: 10.5’
• Cutting width on parallel fence: 50”
• Exhaust outlets diameter
  • Frame outlet: 4.69”
  • Overhead guard: 3.12”
• Nominal extraction air consumption: 955 CFM
• Compressed air: 6.5 bar
• Air exhaust speed: 66 ft/s
• Electrical Requirements: 230V Single Phase 60Hz 26A
• Machine Dims: 134” x 45” x 48”
• Approx Weight: 1,364

Optional Add-Ons

• “Minimax ease” mobile trolley for accessories
• Squaring fence with 2 DRO flip stops – not for CompeX
• Third squaring stop with LCD position readout
• Angular cutting device with flip-over stops
• Additional table on the sliding table
• Expandable scoring blade
• Eccentric clamp
• Version with max squaring stroke 2600mm
• Start/stop pushbuttons integrated in the sliding
• 2 saw blade rotating speed (3500/5000 rpm)
• Device for blade micro-lubrication, to cut plastic materials and light alloys of aluminum and brass
• Pre-set angular cutting device, positioned on squaring frame
• Squaring frame with CompeX device
• Squaring fence with 2 DRO flip-stops – for CompeX
• READY 3 version (3NC axes)
