Manufacturer Part: | EMT ID: |
101522
|
4637
|
- Drilling Capacity: 1.26”
- Column Diameter: 8”
- Throat: 13” – 32”
- Spindle nose-to-table surface distance: 13” – 34”
Description

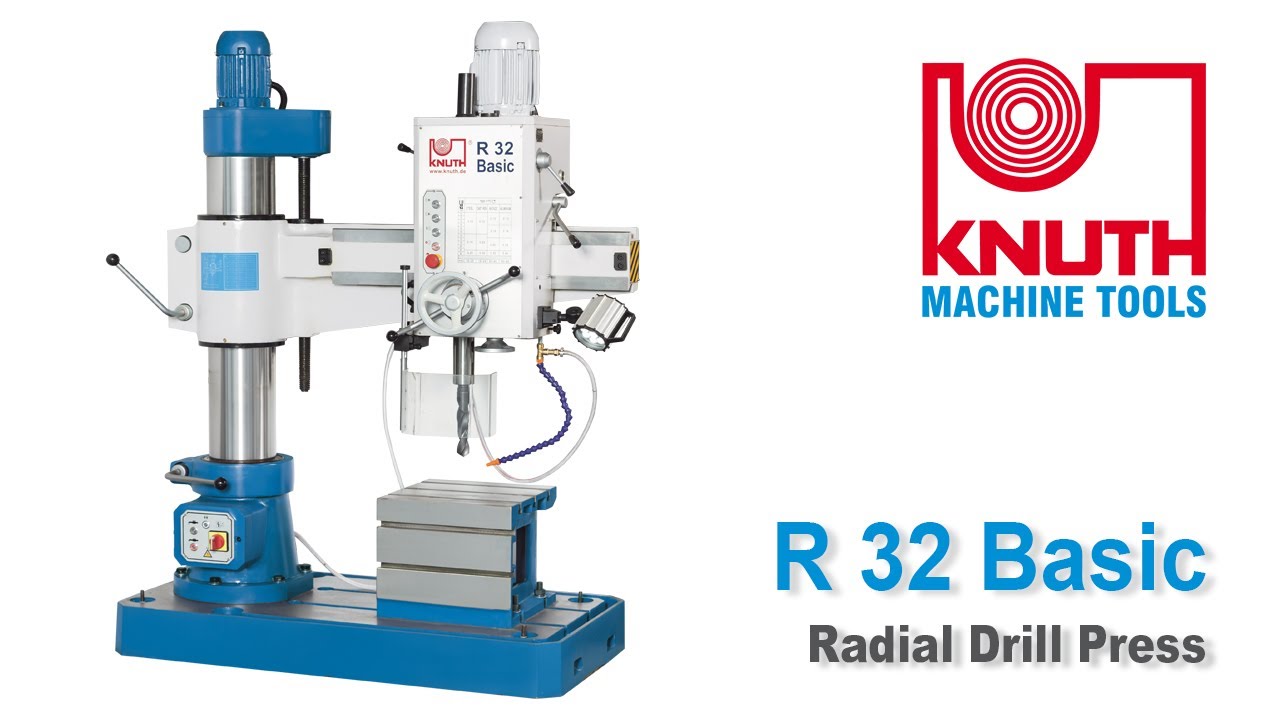

As an entry-level model, this radial drilling machine offers 32 mm (1.26in) drilling capacity, 820 mm (32.28in) throat and 860 mm (33.86in) processing height. The model belongs to Knuth’s R Basic series of classic radial drilling machines with manually switched gears and manual clamps. With their heavy weight they guarantee the best stability with an excellent price-performance ratio. Due to the easy handling of large workpieces and the robust design, we recommend these models to use in workshops and steel construction, among other applications. A cube table is part of the standard equipment for smaller workpieces.
Features
- For drilling, reaming, and tapping
- Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
- Precision-ground gears for quiet operation
- Practical layout of electrical and mechanical controls at the headstock for easy operation
- Motorized arm height adjustment
- The spindle is made of high-quality hardened steel of consistent accuracy
- Mechanical clamping for head, column, and arm
- Easy positioning on all axes
Standard Equipment
- Coolant System
- Cube Table
- Halogen Lights
Specifications
- Working Area
- Drilling Capacity: 1.26”
- Column Diameter: 8”
- Throat: 13” – 32”
- Spindle nose-to-table surface distance: 13” – 34”
- Cube Table Dimensions-height: 16” x 16” x 14”
- Machine Table Dimensions-height: 54” x 28” x 6”
- Quill Stroke: 9”
- Headstock
- Spindle Mount: MT 4
- Speed Range: 75 rpm – 1.220 rpm
- Feed
- Feeds: 0 in/R – 0.01 in/R
- Drive Capacity
- Motor Rating Main Drive: 2 HP
- Measures and Weights
- Overall Dimensions (LxWxH): 56” x 29” x 75”
- Weight: 2,596 lbs
Optional Accessories
- 103184 – Coolant Concentrate 5 ltr
- 103402 – Universal Facing / Lathe / Bore Head ADA / MT 4
- 103820 – Reductions Sleeve MT 4/1
- 103825 – Reduction Sleeve MT 4/2
- 103830 – Reduction Sleeve MT 4/3
- 104670 – Extensions Sleeve MT 4/5
- 104695 – Taper Drift MT 4/5
- 104745 – Tool Holder Bit MT4 / B16
- 104750 – Tool Holder Bit MT4 / B18
- 104765 – Keyless Drill Chuck 0.04-0.05in B 16
- 104770 – Keyless Drill Chuck 0.12-0.63in B 18
- 106009 – Compound Sliding Table 28.7x8.27”
- 106035 – Tapping Attachment M5 – M12 (MT3 + MT4)
- 106037 – Tapping Attachment M8 – M20 (MT3 + MT 4)
- 107615 – Quarter Circle Cutter – set 0.08-0.47in
- 107617 – Quarter Circle Cutter – set 0.24-0.79in
- 108631 – Lathe Bore Head with Boring Bar Set 2 in 9 pcs
- 108633 – Lathe Bore Head with Boring Bar Set 3 in 12 pcs
- 108641 – Mounting Shank for Reaming Head 1.97/2.95”, MT4
- 108655 – Combo Flat Counter Sink
- 108665 – Counter-Sink Set 90°
- 123040 – Power Worker Metal Cutter
- 125006 – PBS 140 Machine Vise
- 125007 – PBS 200 Machine Vise
- 125031 – UMS 140 Machine Vise
- 125032 – UMS 200 Machine Vise
- 129340 – Swivel Table ST 300
- 129345 – Swivel Table ST 380
- 104594 -Accessory Set for Drilling MT4, 8pc
Manufacturer | |
SKU |
101522
|
Shipping Method |
LTL Freight
|
Weight |
3,135 lb
|
Dimensions |
55 × 28 × 74 in
|
Country of Origin |
Germany
|
