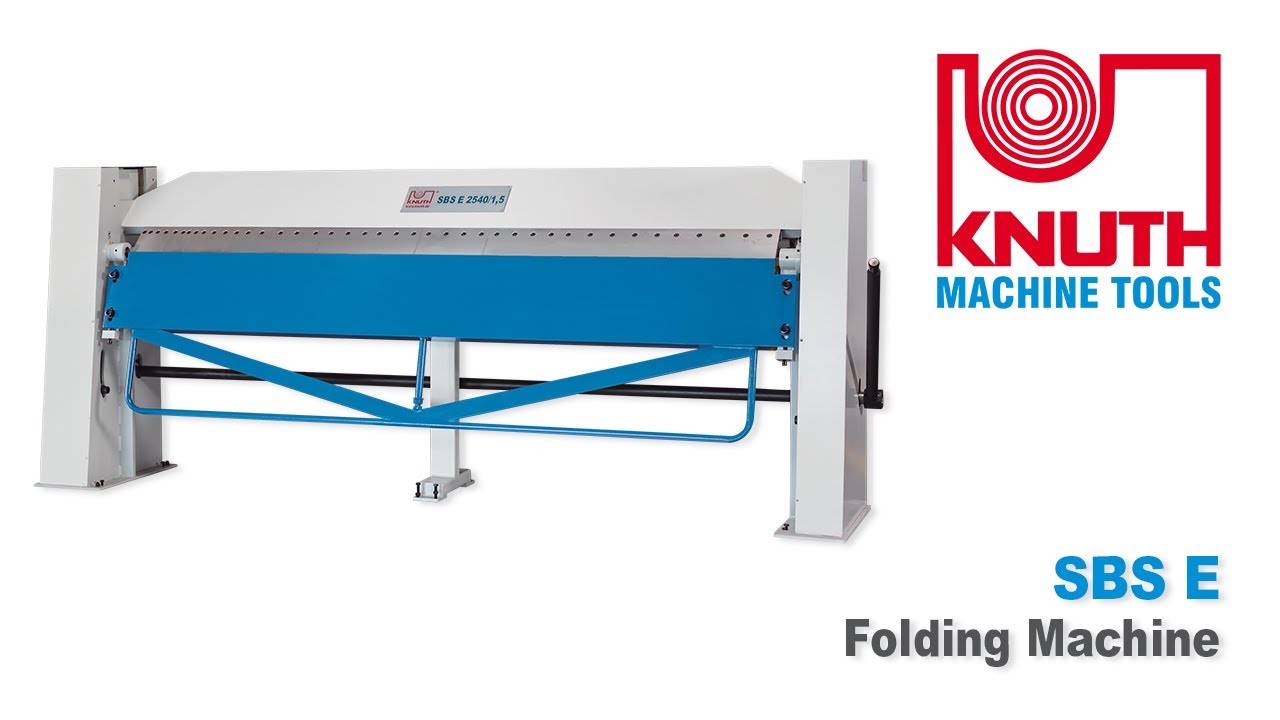

Knuth 80” SBS E 2020/2,0 Manual Folding Machine 131367

Description

The manual folding machines of the SBS E-series with their heavy and robust design are designed for bending long metal sheets of up to 3000 mm (118 in.) in length. Due to its angle stop, this series can also be used for the production of small series.

Features

• The series has a rugged, very robust design and is impressively easy to handle while delivering maximum accuracy.
• All models of this series have a hardened, segmented male die.
• Segments can be removed individually, so all sides of the basin can be bent
• Adjustable angular stop for the production of angular small batches
• Segmented upper tool
• Upper beam with hand-lever

Standard Equipment

• Segmented male die
• Operator manual

Specifications

• Working Area
  • Working height: 36”
  • Plate thickness (max.): 0.08”
  • Working length: 80”
• Male Die
  • Stroke: 4.7”
• Bending Die
  • Bending angle (max.): 135 deg
  • Adjustment range for A axis: 1”
• Measures and Weights
  • Overall dimensions (L x W x H): 111” x 34” x 52”
  • Weight: 2,255 lbs.

Options

• 257386 – Manual back gauge for SBS E 2020/2.0
