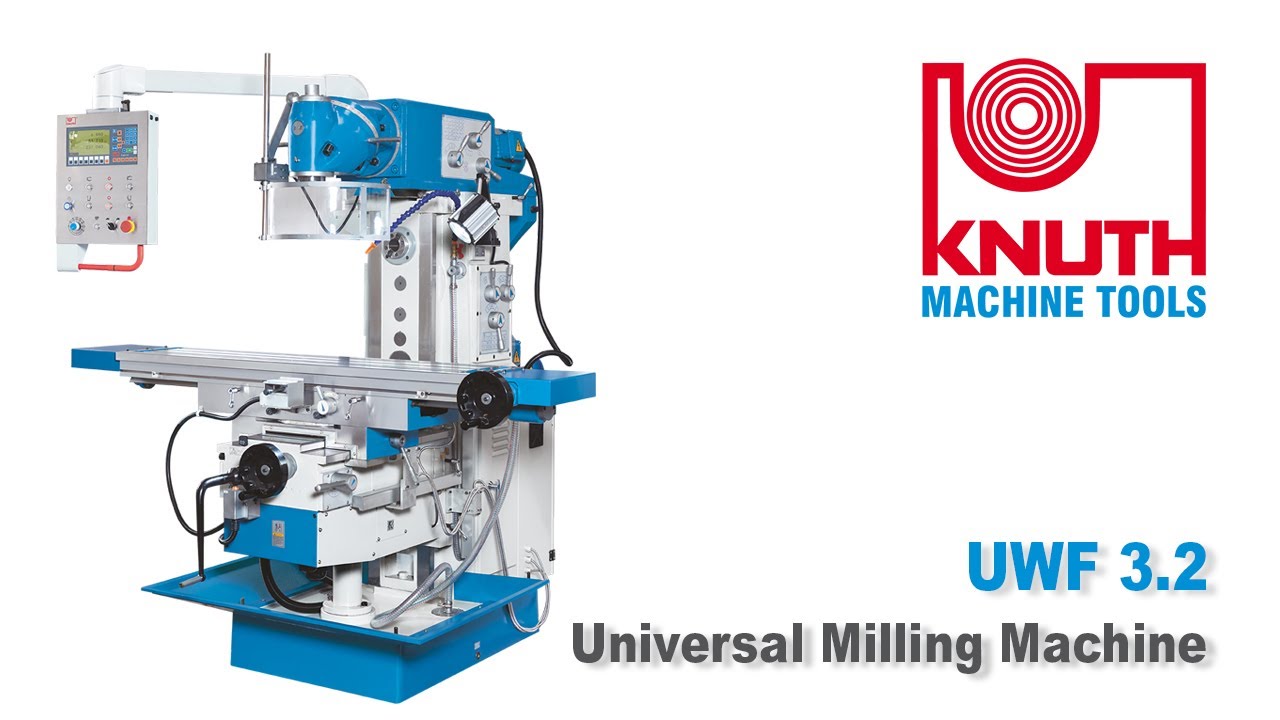

Knuth 4HP 54"x13" UWF 3.2 Universal Milling Machine with Swiveling Vertical Head 362695

FREE SHIPPING

Manufacturer Part: EMT ID:
362695
15390

  • Table set up area: 54” x 13”
  • Number of T-slots: 3 positions
  • Table load capacity (max.): 572 lbs.
  • T-slot (width x spacing): 0.55” x 3.15”
Details below

Description

The versatile universal milling machine complements the tried and tested UWF 3. Both models have the large work area, the universal milling head, and the horizontal spindle in common. The new UWF 3.2. however has a slightly higher speed range and an infinitely variable servomotor feed, which extends its range of application. Together with the extensive equipment, this model is also ideally suited for repair workshops as well as training and production departments.

Features

  • Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
  • Large rectangular guideways ensure precision and quiet operation within permissible high loads
  • Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
  • The milling table features a large setup area and can be rotated in linear direction
  • Quiet, precision-made headstock gears with hardened and ground gears
  • Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
  • By combining both swivel levels, almost any angle can be set
  • Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
  • Powerful servo-motor for infinite variation of feeds in all 3 axes
  • Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
  • Control panel swivels for comfortable operation
  • Coolant system and chip tray are included

Standard Equipment

  • 3-axis position indicator
  • Collet chuck with collets (0.16",0.2",0.24",0.31",0.39",0.47",0.55",0.63" diam.)
  • Horizontal milling arbor, 27 mm diam.
  • Outer arbor support for horizontal milling
  • Chip tray
  • Coolant system
  • Central lubrication
  • M16 draw bar
  • LED work lamp
  • Operating tools
  • Operator instructions

Specifications

  • Working Area
    • Table set up area: 54” x 13”
    • Number of T-slots: 3 positions
    • Table load capacity (max.): 572 lbs.
    • T-slot (width x spacing): 0.55” x 3.15”
    • Milling table swivel range: 45 deg
  • Travels
    • Travel X-axis: 39.4”
    • Travel Y-axis: 14”
    • Travel Z-axis: 16”
  • Vertical Milling Head
    • Spindle speed (vertical): 45 rpm - 1.660 rpm
    • Throat: 12” - 30”
    • Vertical spindle-to-table surface distance: 10.24” - 25.98”
    • Milling head swivel range: 360 deg
    • Spindle speed (vertical)-stages: 11
    • Spindle mount: DIN 2080 / ISO 40
  • Rapid Feed
    • Rapid feed Z-axis: 39.37”/min
    • Rapid feed X-/ Y-axis: 53”/min
  • Horizontal Milling Spindle
    • Spindle speed (horizontal)-stages: 12
    • Spindle speed (horizontal): 35 rpm - 1500 rpm
    • Spindle mount: ISO 40
    • Horizontal spindle-to-table surface distance: 3” - 19”
  • Feed
    • Feed speed X-axis-stages: 9
    • Feed speed X-axis: 1.1811”/min - 32.6771”/min
    • Feed speed Y-axis-stages: 9
    • Feed speed Y-axis: 1”/min - 33”/min
    • Feed speed Z-axis: 0.9055”/min - 24.6063”/min
  • Drive Capacity
    • Motor rating horizontal spindle: 4 Hp
    • Motor rating vertical spindle: 4 Hp
  • Measures and Weights
    • Overall dimensions (length x width x height): 75” x 69” x 79”
    • Weight: 4,290 lbs.

Options

  • 106075 – ER 40 Collet Set 15 pcs.
  • 125024 – HS 125 Hydraulic Machine Vise
  • 103900 – Shell End Milling Arbor Ø22 SK 40
  • 103331 – Pivoted Mounts LK 5
  • 105295 – Clamping Tool Set De Luxe 14/M12
  • 104596 – Accessory-Set ISO 40 5-pc.
  • 106062 – ER 40 Collet Chuck / Mount ISO 40
  • 103184 - Coolant Concentrate 5 Ltr
  • 103404 - Universal Facing / Lathe Bore Head ADA / SK40
  • 103895 - Shell End Milling Arbor Ø16 SK40
  • 103905 - Shell End Milling Arbor Ø27 SK40
  • 103910 - Shell End Milling Arbor Ø32 SK40
  • 103915 - Shell End Milling Arbor Ø40 SK40
  • 104920 - Machine vise with pull-down system NZM160
  • 105790 - Swivel Hold-Down Clamp Set 100/M12
  • 106090 - Angle Collet Fixture (vertical + horizontal)
  • 106103 - 5-C Collet Clamp - Ø 0.04"
  • 106104 - 5-C Collet Clamp - Ø 0.08"
  • 106105 - 5-C Collet Clamp - Ø 0.12"
  • 106110 - 5-C Collet Clamp - Ø 0.16"
  • 106215 - 5-C Collet Clamp - Ø 1"
  • 108057 - Edge Tracer Set
  • 108400 - Roughing End Mill Cutter 40
  • 108401 - Roughing End Mill Cutter 50
  • 108402 - Roughing End Mill Cutter 63
  • 108403 - Roughing End Mill Cutter 80
  • 108440 - End Milling Set HSS TiN
  • 108445 - Roughing Shank Cutter 10 pcs
  • 108633 - Lathe Bore Head with Boring Bar Set 3 in 12 pcs
  • 108637 - Mounting Shank for reaming head 1.97/2.95" EN ISO40
  • 108930 - Assembly Stand MAS-BT40, SK40
  • 110960 - Divider ST130
  • 110970 - Optional Accessory Set / ST130
  • 123040 - Power Worker Metal Cutter
  • 125835 - Rotary Table RT200
  • 128960 - Corrugated Parallel Parts 0.4-0.9"
  • 128961 - Corrugated Parallels 1-1.5"
Manufacturer
SKU
362695
Shipping Method
Flatbed
Weight
4,490 lb
Dimensions
80 × 74 × 84 in
Country of Origin
China
