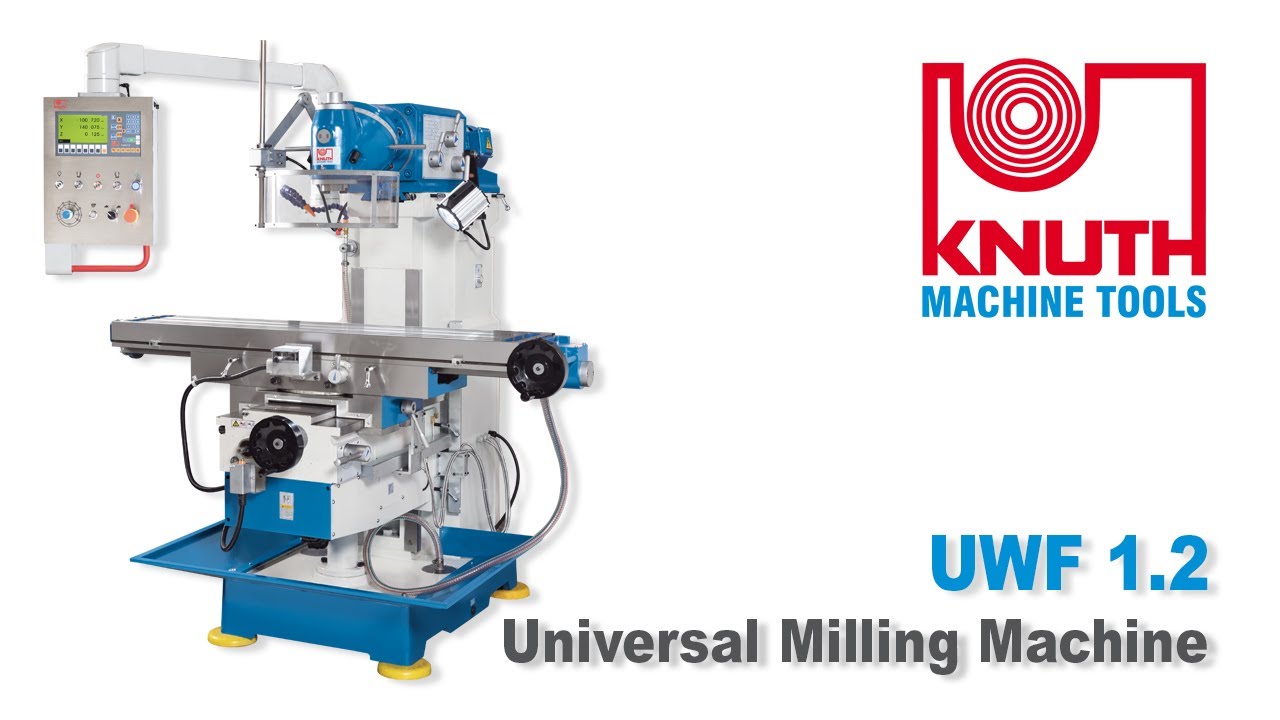

Knuth 4HP 54"x12" UWF 1.2 Compact Universal Milling Machine with Swiveling Vertical Head 362694

Description

This versatile milling machine offers a large work area with a long traverse path on the X-axis. Together with the extensive features, it is ideal for repair workshops as well as training and production departments. The infinitely variable servomotor feed, together with a vertical milling head that can be swiveled on two planes, extends the wide range of applications for the entire UHF series. Wide, stable flat guides on the Z- and Y-axes can also absorb high cutting forces without any problem.

Features

• Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
• Large rectangular guideways ensure precision and quiet operation within permissible high loads
• Universal cutter head swivels on 2 planes - quick change-over from horizontal to vertical machining
• By combining both swivel levels, almost any angle can be set
• Outer arbor support for horizontal milling, mounts to cutter head
• The milling table features a large setup area and can be rotated in linear direction
• Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
• Quiet, precision-made headstock gears with hardened and ground gears
• Powerful servo-motor for infinite variation of feeds in all 3 axes
• Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
• Control panel swivels for comfortable operation
• Coolant system and chip tray are included

Standard Equipment

• Chip tray
• Coolant system
• Central lubrication
• 3-axis position indicator
• Operator instructions
• M16 draw bar
• Operating tools
• Outer arbor support for horizontal milling

Specifications

• Working Area
  • Table set up area: 54” x 12”
  • Number of T-slots: 3 positions
  • Table load capacity (max.): 660 lbs.
  • T-slot (width x spacing): 0.55” x 3.15”
  • Milling table swivel range: 45 deg
• Travels
  • Travel X-axis: 39.4”
  • Travel Y-axis: 14”
  • Travel Z-axis: 16”
• Vertical Milling Head
  • Spindle speed (vertical): 45 rpm - 1660 rpm
  • Throat: 6” - 22”
  • Vertical spindle-to-table surface distance: 3.94” - 19.69”
  • Milling head swivel range: 360 deg
  • Spindle speed (vertical)-stages: 11
  • Spindle mount: DIN 2080 / ISO 40
• Rapid Feed
  • Rapid feed Z-axis: 39.37”/min
  • Rapid feed X-/ Y-axis: 53”/min
• Feed
  • Feed speed X-axis-stages: 9
  • Feed speed X-axis: 1.1811”/min - 32.6771”/min
  • Feed speed Y-axis-stages: 9
  • Feed speed Y-axis: 1”/min - 33”/min
  • Feed speed Z-axis: 0.9055”/min - 24.6063”/min
• Drive Capacity
  • Motor rating main drive: 4 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 73” x 70” x 67”
  • Weight: 3,850 lbs.

Optional Accessories

• 106075 – ER 40 Collet Set 15 pcs.
• 125024 – HS 125 Hydraulic Machine Vise
• 103900 – Shell End Milling Arbor Ø22 SK 40
• 103331 – Pivoted Mounts LK 5
• 105295 – Clamping Tool Set De Luxe 14/M12
• 104596 – Accessory-Set ISO 40 5-pc.
• 103184 - Coolant Concentrate 5 Ltr
• 103404 - Universal Facing / Lathe Bore Head ADA / SK40
• 103895 - Shell End Milling Arbor Ø16 SK40
• 103905 - Shell End Milling Arbor Ø27 SK40
• 103910 - Shell End Milling Arbor Ø32 SK40
• 103915 - Shell End Milling Arbor Ø40 SK40
• 104920 - Machine vise with pull-down system NZM160
• 105790 - Swivel Hold-Down Clamp Set 100/M12
• 106062 - ER40 Collet Chuck / Mount ISO40
• 106090 - Angle Collet Fixture (vertical + horizontal)
• 106103 - 5-C Collet Clamp - Ø 0.04"
• 103104 - 5-C Collet Clamp - Ø 0.08"
• 106105 - 5-C Collet Clamp - Ø 0.12"
• 106110 - 5-C Collet Clamp - Ø 0.16"
• 106112 - 5-C Collet Clamp - Ø 1"
• 108057 - Edge Tracer Set
• 108400 - Roughing End Mill Cutter 40
• 108401 - Roughing End Mill Cutter 50
• 108402 - Roughing End Mill Cutter 63
• 108403 - Roughing End Mill Cutter 80
• 108440 - End Milling Set HSS TiN
• 108445 - Roughing Shank Cutter 10 pcs
• 108633 - Lathe Bore Head with Boring Bar Set 3 in 12 pcs
• 108637 - Mounting Shank for reaming head 1.97/2.95" EN ISO40
• 108930 - Assembly Stand MAS-BT40, SK40
• 110960 - Divider ST130
• 110970 - Optional Accessory Set / ST130
• 123040 - Power Worker Metal Cutter
• 125835 - Rotary Table RT200
• 128960 - Corrugated Parallel Parts 0.4-0.9"
• 128961 - Corrugated Parallels 1-1.5"
