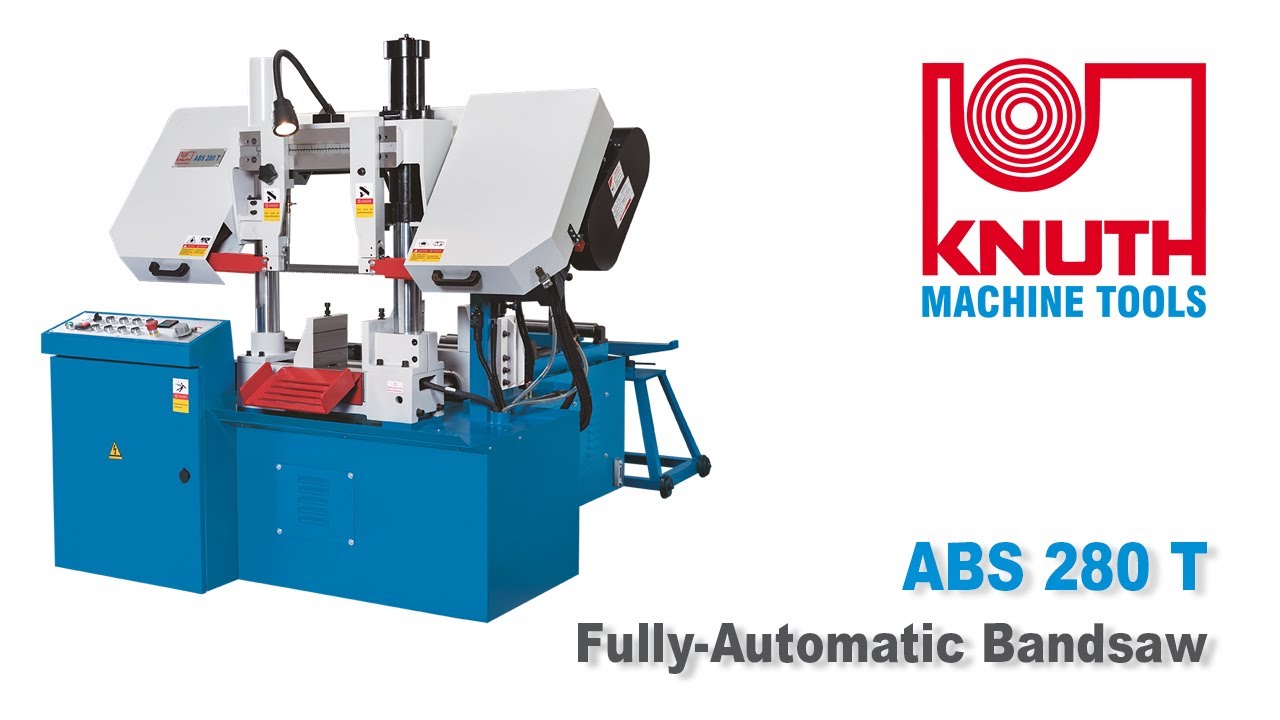

Knuth 4HP ABS 280 T Fully Automatic Band Saw 152828

Description

This fully automatic horizontal band saw of the ABS T series is perfect for precise straight cuts in larger workpieces. The construction convinces with a rigid and extremely stable double column frame, which also forms the basis for the fixed clamping jaw of the vise and integrates the lifting cylinder of the saw frame. The main drive is via low-maintenance V-belts. Feed, workpiece clamping, and the stroke of the saw frame are driven hydraulically. The automatic material feed does not require any programming and is set using a contactless stop system.

Features

• The machine frame is designed as torsion-proof dual-column construction to allow powerful, precise machining with minimal vibration
• The remove cabinet-mounted control panel is user-friendly and provides optimum visibility of the workpiece during machining
• A second non-traversing vise secures the positioned workpiece automatically at the cut line
• Feed and tensioning of the vises are hydraulically controlled
• The hydraulically controlled lowering of the saw is infinitely variable
• At the end of each sawing cycle, the saw blade frame will return to the home position
• For an even wider spectrum of applications, the standard equipment includes a bundle clamping fixture
• Rigid saw blade guides can easily be adjusted to different workpiece diameters
• Blade speed is adjustable to 3 settings
• A high-performance coolant system and a mobile material support base are part of the standard equipment

Standard Equipment

• 1 saw blade
• Bundle vise
• Coolant system
• Work lamp
• Material support block
• Operating tools
• Operator manual

Specifications

• Cutting Capacities
  • Cutting capacity 0°
    • Round: 11”
    • Square: 11”
    • Flat (length x width): 11” x 11”
  • Cutting speed: 89, 148, 226 fpm
• Drive Capacity
  • Motor rating main drive: 4 Hp
  • Motor rating hydraulic pump: 1 Hp
  • Motor rating coolant pump: 0.1 Hp
• Measures and Weights
  • Overall dimensions (length x width x height): 89” x 71” x 65”
  • Weight: 2,222 lbs.
  • Blade dimensions: 137.99” x 1.06” x 0.04”

Optional

• 103184 - Coolant Concentrate 5 Ltr
