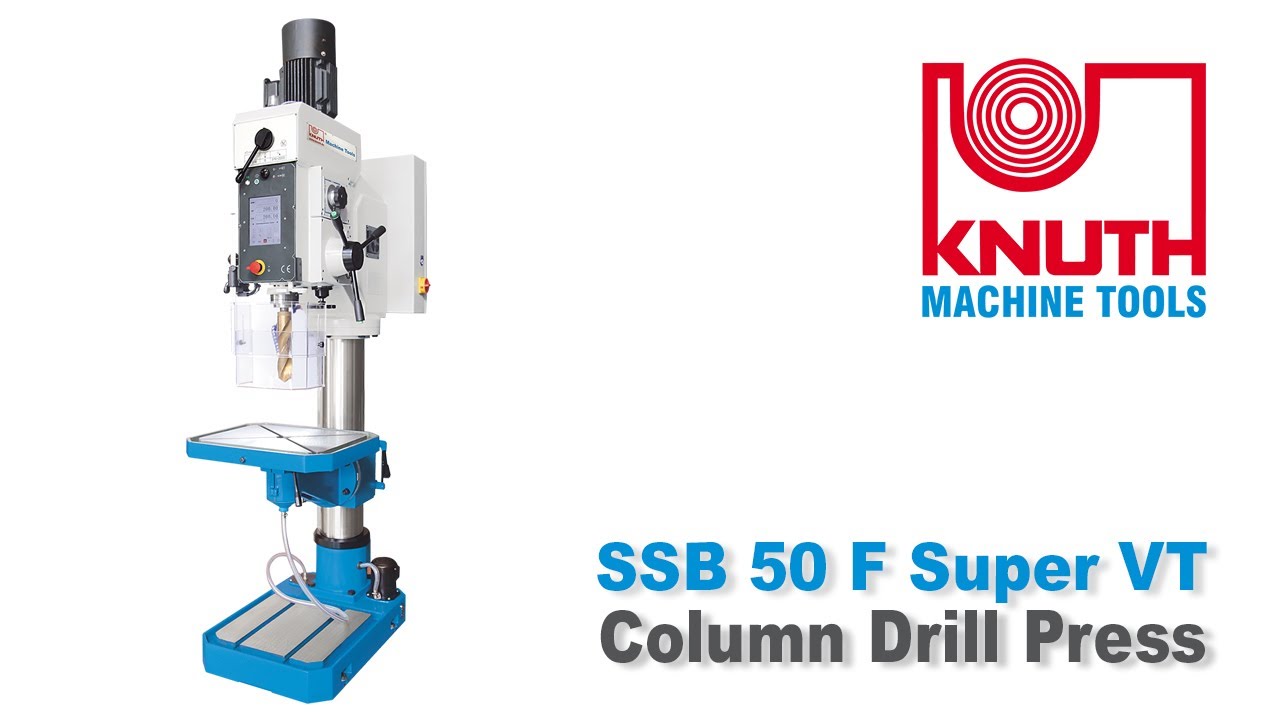

Knuth 3HP SSB 50 F Super VT Drill Press with Touchscreen Control Panel 101673
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
101673
|
15093
|
- Drilling capacity: 1.97”
- Quill stroke: 8”
- Speed range: 50 rpm - 2200 rpm
- Quill feeds: 0.08; 0.12; 0.17; 0.24; 0.35; 0.50 (6) in/R
Description
The drilling machines of the SSB F Super series are the right choice for every workshop, from maintenance to production. The sturdy drilling machines are constructed with a thick-walled column and powerful drives. The spindle speed is infinitely variable and the quill feed has a robust gearbox. Whether via the control panel or touchscreen, all functions are clearly displayed and are easy to use. The clamping table can be moved in height using a motor and facilitates the handling of heavy parts.
Ideal for drilling, countersinking, reaming, and tapping
- Heavy construction with thick-walled column
- Base, column, table, and gear head are made of premium high-quality cast iron
- Large drill press table with circumferential coolant groove, height adjustment, and ± 45° swivel range
- Table height adjustment via a powerful motorized drive
- The auxiliary gears run in an oil-bath for maximum reliability and minimum wear
- 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
- Easy handling of the machine ensures effortless operation in a production environment
- Thread-cutting feature is standard
Modern operating concept with rugged touchscreen display
- 8" touchscreen features a rugged, resistant surface
- No programming skills are required for the modern, patented control system
- The infinitely variable spindle speed can be controlled at the display and is easy to read
- The control system assists the operator with the selection of the correct rpm and feed speed
- The system recommends cutting parameters based on bore diameter and material, which also may be accepted automatically
- The depth stop is set electronically at the display
- Measuring units for input and display can be selected by the operator (mm or inch)
- Various alarm screens warn the operator in case of operational errors
- The high-performance coolant system also is activated at the touchscreen
- The system features an operating hour counter
Standard Equipment
- Touchscreen control panel
- Tapping unit
- Protective shield
- LED work lamp
- Coolant system
- Operating tools
- Operator manual
Specifications
- Working Area
- Drilling capacity: 1.97”
- Table set up area: 23” x 18”
- Tapping capacity, steel: M 30
- Throat: 14”
- Spindle nose-to-table surface distance: 23”
- Table swivel range (max.): ± 45°
- Quill stroke: 8”
- Manual table travel: 20.87”
- Powered table travel: 16.14”
- Column diameter: 7”
- Spindle nose-to-foot distance: 46”
- Headstock
- Speed range: 50 rpm - 2200 rpm
- Spindle mount: MT 4
- Feed
- Quill feeds: 0.08; 0.12; 0.17; 0.24; 0.35; 0.50 (6) in/R
- Drive Capacity
- Motor rating main drive: 3 Hp
- Measures and Weights
- Overall dimensions (length x width x height): 46” x 27” x 93”
- Weight: 1,430 lbs.
Optional Accessories
- 103184 - Coolant Concentrate 5 Ltr
- 104594 - Accessory Set for Drilling MT4, 8-pc
- 104713 - Tapping Chuck GSF M6-24/MT4
- 105295 - Clamping Tool Set De Luxe 14/M12
- 105790 - Swivel Hold-Down Clamp Set 100/M12
- 106006 - Compound Sliding Tables 510x240
- 107615 - Quarter Circle Cutter - Set 0.08-0.47"
- 107617 - Quarter Circle Cutter - Set 0.24-0.79"
- 108655 - Combo Flat Counter Sink
- 108665 - Counter-Sink Set 90°
- 123040 - Power Worker Metal Cutter
- 125032 - UMS 200 Machine Vise
Manufacturer | |
SKU |
101673
|
Shipping Method |
LTL Freight
|
Weight |
1,630 lb
|
Dimensions |
51 × 32 × 98 in
|
Country of Origin |
China
|
