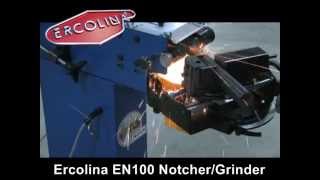

Ercolina 480V Three Phase Pipe and Tube Notcher / Grinder with 3" Tube Bending Capacity EN100

Description

Ercolina’s EN100 Pipe & Tube Notcher is ideal for hand railing, chassis and roll cages, fences and gates, furniture frames, marine rails and arches, tubing and plumbing for restaurant and dairy.

Ercolina's affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finsih.

Features

• Quickly create perfect professional notches at any angle to 60°
• One handle moves pipe or tube in and across abrasive belt simultaneously – extending belt life and reducing heat (patented by Ercolina)
• Ideal for hand railing, chassis and roll cages, fences and gates, furniture frames, marine rails and arches, tubing and plumbing for restaurant and dairy
• Replaces outdated notching methods of using hole saws, end mills, grinding wheels and flame cutting
• Uses premium abrasive belts for a wide range of materials including; carbon steel, stainless steel, Inconel, chrome moly, aluminum and titanium
• Graduated vise 0-60° with vertical adjustment for offset angles
• Patented quick-change roller system
• Converts to abrasive belt grinder with optional accessory
• Top mounted deburring surface
• Tool free belt changeover

Specifications

• Min Diameter: 1”
• Max Diameter: 3”
• Angle Range: 0-60° at 2⅜″ O.D.
• Belt Size: 4” x 76¾”
• Belt Speed: 100 FPS
• Dust Extraction: Conventional
• Voltage Requirement: 480V Three Phase
• Motor: 5½ HP  50-60 Hz
• Motor Speed: 3650 RPM
• Contact Wheel: NA
• Dimensions (LxWxH): 52” x 22” x 43”
• Shipping Weight: 425 lbs

Options

• Notcher rollers available
