| Manufacturer Part: | EMT ID: |
|
ED9-HAT6000
|
4954
|
- 20' quick-connect hoses for simple "plug & play" operation
- Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
- Digital encoder provides enhanced accuracy for precise repeatability
- Easy-to-use hand/jog controls with integrated E-Stop
- Robust construction with 2" machine heavy-duty table

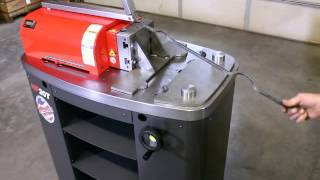

The 20 Ton Horizontal Press is the go-to tool to from, break and straighten mild steel. Designed for maximum flexibility to accept a variety (including custom) tooling. Repetitive processes are simple with the proximity sensor and digital readout. Must be run off an Edwards Ironworker with PowerLink ™ System or Portable Power Unit.
- 20' quick-connect hoses for simple "plug & play" operation
- Designed for maximum flexibility with 4 pin locations to accept wide variety of custom tooling
- Digital encoder provides enhanced accuracy for precise repeatability
- Easy-to-use hand/jog controls with integrated E-Stop
- Robust construction with 2" machine heavy-duty table
- Ships with a standard 6" Brake with 4-Way Die able to create clips, brackets, hangers and more
- Storage shelves perfect for holding additional tooling
| Specification | Value |
|---|---|
| Stroke (In.) | 10 |
| Table Dimensions (In.) | 24 x 42 |
| Work Height (In.) | 38 |
| Cylinder (In) | 2-1/4" Ram |
| Weight (Lbs.) | 1500 |
| Rating (Tons) | 20 |
| Product Dimensions (In.) | 26 x 43 x 49 |
| Overall Dimensions (L x W x H) (In.) | 30 x 48 x 60 |
| Net Weight (Lbs.) | 1500 |
| Gross Weight (Lbs) | 1500 |
| Height | 60.0000 |
| Length | 30.0000 |
| Width | 48.0000 |
| Weight | 1500.0000 |
| Manufacturer | |
| SKU |
ED9-HAT6000
|
| UPC |
731325555592
|
| Shipping Method |
LTL Freight
|
| Weight |
1,500 lb
|
| Dimensions |
30 × 48 × 60 in
|
| Country of Origin |
United States of America
|
There are currently no reviews for this product.
Be the first to review this product.
Looking for parts? Let us know what you need in the form, or give us a call at
281-241-9504
Edwards 20 Ton Horizontal Press HAT6000
