| Manufacturer Part: | EMT ID: |
|
2013-V5
|
4978
|
- Machine Capacity: 20" x 13"
- Production Level: Low
- Table: 26" x 26"
- Band Speed: 30-320 fpm; 550-5,500 fpm
Description
The 2013-V5 DoALL vertical contour band saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V5 upright metal cutting saw is among the most versatile 20" x 13" (508x330mm) sawing machines on the market today.
Standard Equipment
- Wrench for saw guides

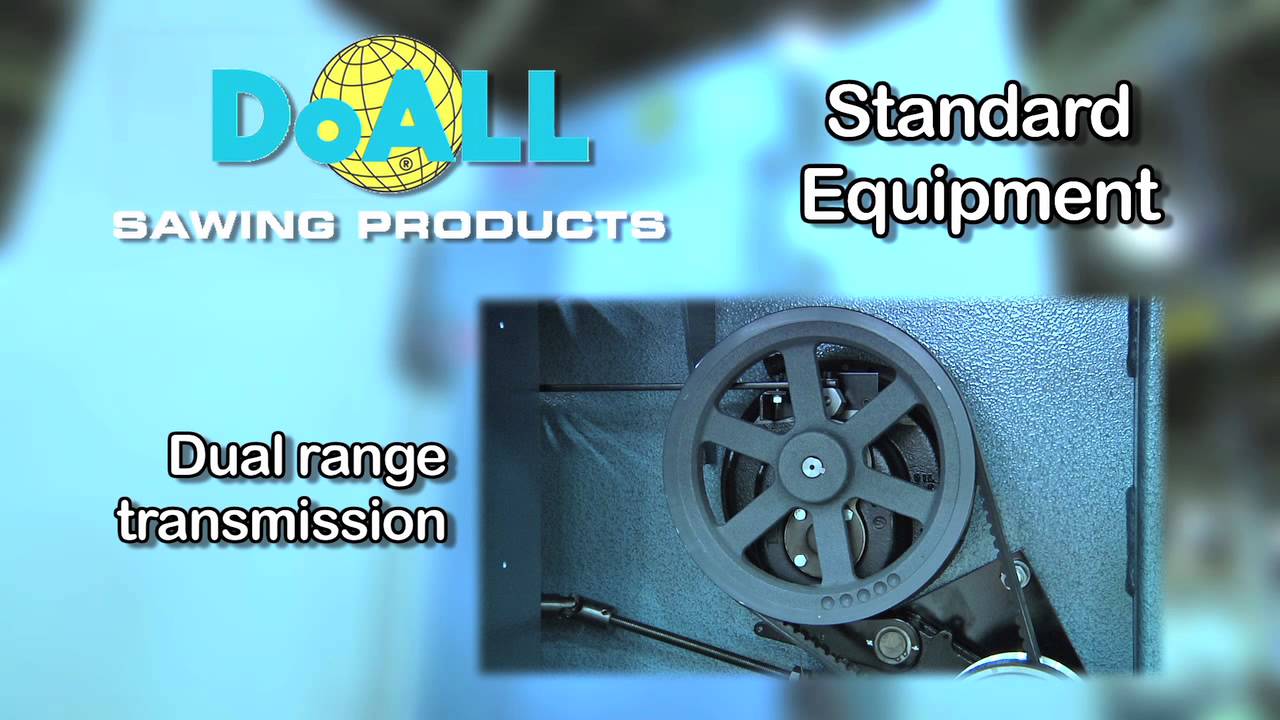

- Dual range transmission
- Variable frequency AC drive
- Band speed indicator
- Band door interlocks
- Band tension indicator
- Job selector
- One set of high-speed, insert-type guide blocks for bands 1/8" - 1/2"
- Chip pan
- Instruction and parts manual
- One bi-metal saw band
- One set of steel guide inserts for bands 1/4", 3/8" and 1/2"
- Wrench for table trunnion
- Transmission oil
Specifications
| Machine Capacity | 20" x 13" |
| Production Level | Low |
| Band Speed | 30-320 fpm; 550-5,500 fpm |
| Throat band to Column | 20" |
| Max. work height | 13" |
| Band width capacity | 1/8" - 1" |
| Saw band length | 154" |
| Variable band speed | 550-5,500 fpm |
| Table | 26" x 26" ; Tilts 45° R, 10°L |
| Table to floor height | 39" |
| AC drive motor | 5 hp ac |
| Table capacity | 500 lbs |
| Wheels | Aluminum with crowned rubber tires |
| Upper wheel adjustment | 3" |
| Height maximum | 80-1/4" |
| Floor Area required | 53-1/2" x 45" |
| Weight | 1250 lbs |
| Manufacturer | |
| SKU |
2013-V5
|
| Shipping Method |
Flatbed
|
| Weight |
1,350 lb
|
| Dimensions |
56 × 47 × 83 in
|
| Country of Origin |
United States of America
|
