Manufacturer Part: | EMT ID: |
DC-400CNC
|
6369
|
- Band Saw Blade Width: 1-1/2" x 0.05″ (41x1.3mm)
- Maximum Blade Length: 220″ (5580mm)
- Band Speed: 65-328 fpm (20-100mpm)
- Index Single Stroke Min-Max: 0.12-21.7″ (3-550mm)
Description

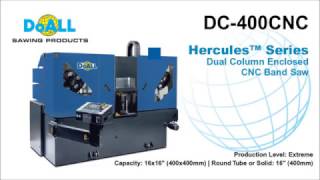

The DC-400CNC Hercules™ high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-400CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-400CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation.
Specifications
Cutting Capacity Round (Tube and Solid): 15.75″ (400mm)
Cutting Capacity Rectangle: 15.75" x 15.75″ (400x400mm)
Maximum Bundle Capacity: 15.75 x 9.8″ (400x250mm)
Band Saw Blade Width: 1-1/2" x 0.05″ (41x1.3mm)
Maximum Blade Length: 220″ (5580mm)
Band Speed: 65-328 fpm (20-100mpm)
Band Drive: 7.5 hp (5.6kW)
Hydraulic Pump: 2 hp (1.5kW)
Coolant Pump: 0.16 hp (0.12kW)
Material Pass Line Height: 30-1/2″ (775mm)
Machine Weight: 6040lbs (2740kg)
Dimensions W x L x H: 117 x 102.5 x 87″ (2970x2600x2200mm)
Index Single Stroke Min-Max: 0.12-21.7″ (3-550mm)
Auto Index Multiple Stroke Max: 394″ (9999mm)
Manufacturer | |
SKU |
DC-400CNC
|
Shipping Method |
Flatbed
|
Weight |
8,125 lb
|
Dimensions |
144 × 76 × 75 in
|
