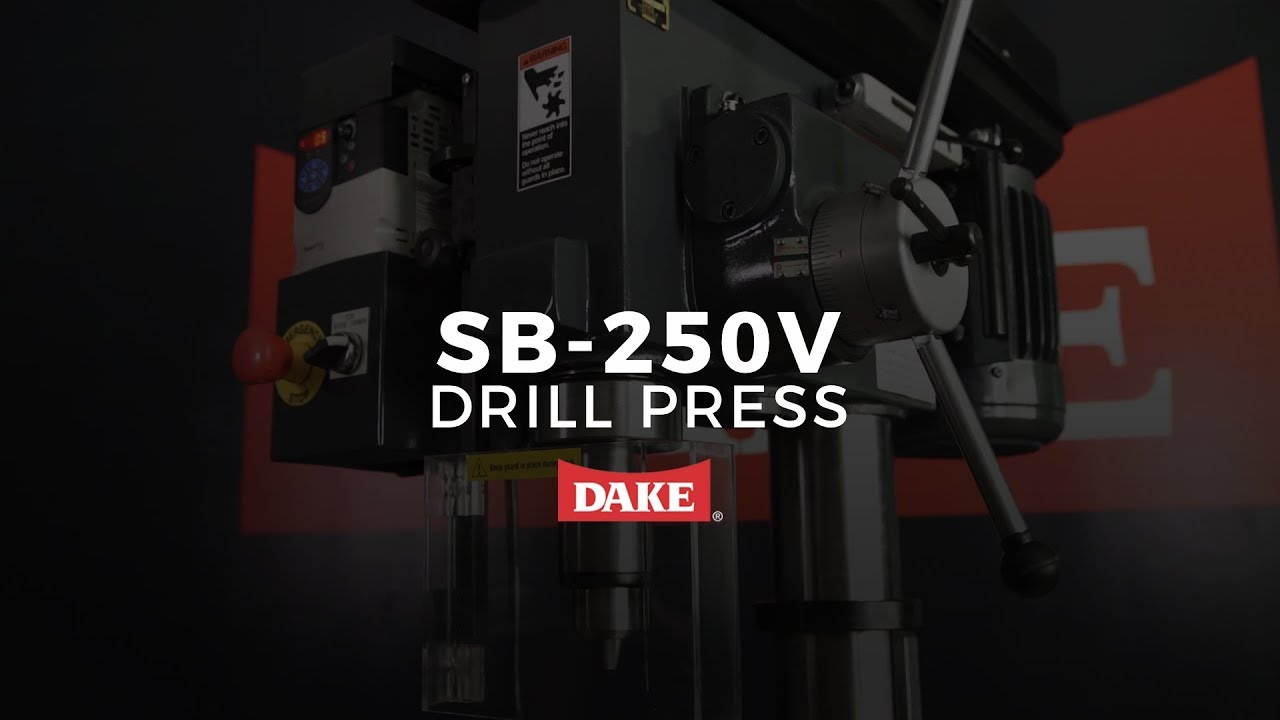

Dake Model SB-250V 110V Single Phase 1” Drill Capacity Auto-Feed Variable Speed Floor Model Drill Press 977701V

Description

Variable speed floor model drill press that automatically advances to preset depth, bottoms out, and returns automatically. Comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one touch drill press.

Dake’s line of industrial strength drill presses are designed with the operator in mind. Access the ability to set up multiple applications quickly with the variable speed option. Choose a bench top or floor model to fit any of your application needs. Backed by the Dake quality you can trust, your drill press will last for years to come and are guaranteed to get the job done.

Features

• A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
• Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
• Machined table and base surfaces with t-slots for mounting and fixturing
• Forward and reverse selector switch for tapping applications
• Electrical package features on/off switch, emergency stop button, and interlock safety switch for belt cover
• Massive cast head, machined column, and sturdy cast base reduces vibration
• Latest frequency inverter technology for easy speed changes and concentrated torque
• Handle has 3 spokes with spring return for precise operator control and ergonomic operation
• Power down feed

Standard Equipment

• 5/8” keyed chuck
• Drift for bit removal
• Plexiglas chip and chuck guard

Specifications

• Drill Capacity: 1”
• Horsepower: 1½ HP
• Spindle Taper: MT3
• Working Diameter: 18”
• Number of Speeds: Variable speeds
• Spindle Speed Range: 68 - 1,380 rpm
• Spindle Travel: 5”
• Column Diameter: 3-5/8”
• Table Size: 15¾” x 15¾”
• Spindle to Table: 28-3/8”
• Spindle to Base: 49¼”
• Electrical Requirements: 110V Single Phase
• Machine Dims: 15” x 23-5/8” x 71”
• Approx Weight: 483 lbs

 Optional Add-Ons

• Drill Press Vice
• Quick Release Dill Press Vice
