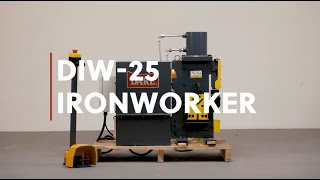

Dake Model DIQW-25 220V Single Phase 25-Ton Single-Cylinder Benchtop Foot-Operated Ironworker 971000

Description

The all-new benchtop DIW-25 Ironworker provides a powerful 25 Ton cylinder with a small footprint to fit almost anywhere in your shop. This tiny but mighty compact single-phase machine will be all you need for your shearing and punching applications. Whether its angle iron, flat stock, or solid bar, the DIW-25 Ironworker will keep your projects moving efficiently without taking up precious floor space.

Features

• Bench type compact design to fit almost anywhere in your shop
• Powerful 25 Ton Single Cylinder
• Single Phase 220V Motor
• 6” Blade Length
• LED lights for better visual
• Conveniently located control panel for easy operation
• Foot pedal operation with Emergency Stop Button
• Easy removal of blades, punches, and dies for quick changes
• Back gauge with scale on cutting operations
• Scrap box

Standard Equipment

• 6” Blade
• Scrap Box
• Foot Pedal with Emergency Stop
• Spanner Wrench

Specifications

• Capacity: 25 Ton
• Cutting Thickness: 0.39”
• Blade Length: 6”
• Punch Thickness: 0.19”
• Max Diameter: 0.59”
• Round Solid Capacity: 0.55”
• Square Solid Capacity: 0.55”
• Angle Iron Capacity: 1.96” x 1.96” x 0.19”
• Motor: 4 HP
• Electrical Requirements: 220V Single Phase
• Machine Dims: 28.3” x 31.7” x 30.9”
• Approx Weight: 330 lbs

Optional Add-Ons

• Punch and Die Set (304089)
